Quick Details
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
3000K/4000/6500K
-
Product Weight（kg）:
-
1.8
-
Input Voltage(V):
-
85-265
-
Lamp Luminous Flux(lm):
-
4200
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-30 - 50
-
Working Lifetime(Hour):
-
30000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Qisen
-
Model Number:
-
QS-PL
-
Product name:
-
Panel De Luz Led
-
CCT:
-
3000K/4000K/6500K
-
Certification:
-
CE CB EMC RoHS CCC LVD SAA
-
Installation:
-
Reccessed Mounted
-
Material:
-
Aluminum+Iron/Aluminum-Flat
-
Driver:
-
Non-Isolated/Philips/Osram Safety class II
-
Leds:
-
2835(with PMMA lens)/OSRAM/Philips-Lumiled 2835
-
Wattage:
-
36W/40W/48W/54W/60W/72W
-
Diffuser:
-
PS
-
Optic:
-
PMMA Optical Lens
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
110
-
Application:
-
Home Office
-
Lamp Body Material:
-
Aluminum
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
3000K/4000/6500K
-
Product Weight（kg）:
-
1.8
-
Input Voltage(V):
-
85-265
-
Lamp Luminous Flux(lm):
-
4200
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-30 - 50
-
Working Lifetime(Hour):
-
30000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Qisen
-
Model Number:
-
QS-PL
-
Product name:
-
Panel De Luz Led
-
CCT:
-
3000K/4000K/6500K
-
Certification:
-
CE CB EMC RoHS CCC LVD SAA
-
Installation:
-
Reccessed Mounted
-
Material:
-
Aluminum+Iron/Aluminum-Flat
-
Driver:
-
Non-Isolated/Philips/Osram Safety class II
-
Leds:
-
2835(with PMMA lens)/OSRAM/Philips-Lumiled 2835
-
Wattage:
-
36W/40W/48W/54W/60W/72W
-
Diffuser:
-
PS
-
Optic:
-
PMMA Optical Lens

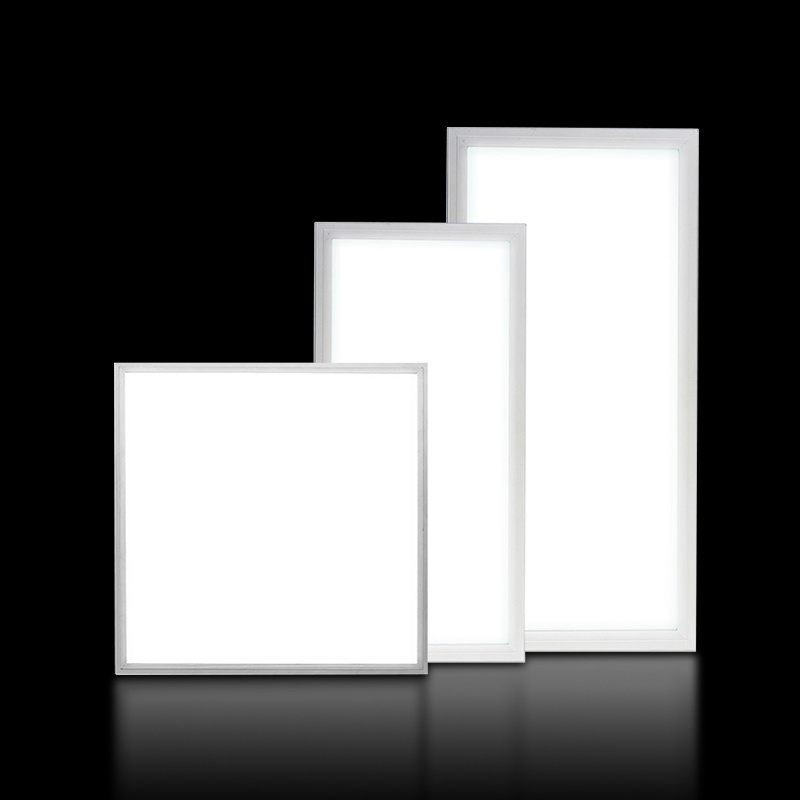

High Quality 6060 Led Panel Light 600*600 Backlit Panel 40W
Product Description
|
Brand
|
Qisen / OEM
|
Model
|
QS-TBP-40
|
|
Input Voltage(V)
|
85-265
|
Power
|
36W / 40W / 48W
|
|
Luminous Flux
|
3600 / 4000/ 4800lm
|
CRI (Ra>)
|
80
|
|
Temperature
|
-20~50°C
|
Lifetime
|
25000h
|
|
IP Rating
|
IP20
|
Back Cover
|
Iron
|
|
Cover Material
|
Aluminum
|
Frame Material
|
Aluminum
|
|
Light source
|
LED
|
LED Chips
|
SMD2835
|
|
CCT
|
3000K/4000/6500K
|
Beam angle
|
120°
|
|
Light Color
|
natural / warm / cold
|
Installation
|
Recessed
|
Product Feature
- Innovative product,Light is even, no dark area
- Compared with flat panel, backlit is more competitive,20-30% cheaper than side light
- Compared with 3.0cm backlit, the volume and transportation cost are reduced by one third
- No LGP,No yellowing for three to five years
- More than twenty configurations to meet different need
- Chip's working temperature is low, lengthen lifespan
- Chip:Lmported high lumen copper 2835 chip, high temperature resistance & long lifespan
- Good quality aluminum, good heat sink
Product Details
| Led Backlit Panel Light | ||||||
| Model | Thickness | Size | Power | Luminous Flux | Lamp beads | IP Rating |
| QS-BP-36 | 2.0cm | 600*600mm | 36W | 3600Lm | 64 | IP20 |
| QS-BP-40 | 2.0cm | 600*600mm | 40W | 4000Lm | 64 | IP20 |
| QS-BP-48 | 2.0cm | 600*600mm | 48W | 4800Lm | 64 | IP20 |
| QS-TBP-36 | 3.0cm | 600*600mm | 36W | 3600Lm | 48 | IP20 |
| QS-TBP-40 | 3.0cm | 600*600mm | 40W | 4000Lm | 48 | IP20 |
| QS-TBP-48 | 3.0cm | 600*600mm | 48W | 4800Lm | 48 | IP20 |
| QS-TBP13-36 | 3.0cm | 300*900mm | 36W | 3600Lm | 48 | IP20 |
| QS-TBP13-40 | 3.0cm | 300*900mm | 40W | 4000Lm | 48 | IP20 |
| QS-TBP13-48 | 3.0cm | 300*900mm | 48W | 4800Lm | 48 | IP20 |
| QS-TB2*4-100 | 3.0cm | 600*1200mm | 100W | 9500Lm | 96 | IP20 |
More detail information, please just feel free to contact us.
Packaging & Shipping
|
Our Products:
|
Panel light, Downlight,Tube light, Batten light, Bulb light, Track light
>>HOMEPAGE
|
|
MOQ:
|
Small order can be acceptable;
|
|
Packing:
|
According to customer requirements
|
|
Delivery Time:
|
Shipped in about 30 days after payment;
|
|
Supply Ability:
|
30000 pieces per Month;
|
|
Payment Terms:
|
L/C, T/T, Western Union, MoneyGram, Cash
|
|
Shipping way:
|
Sea or air transportation; Port of Loading: Guangzhou/Shenzhen
|
