Quick Details
-
Type:
-
Air Source Heat Pump
-
Storage / Tankless:
-
tankless
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUNRAIN or OEM
-
Model Number:
-
YC-004TA1
-
Compressor:
-
Copeland
-
Refrigerant:
-
R410a
-
Power supply:
-
220V/1PH/50HZ
-
Heat exchanger:
-
Titanium Heat Exchanger
-
Heating capacity:
-
4.5-20KW
-
Function:
-
Pool Water Heating
-
Sound Level:
-
45dB(1m)
-
Material:
-
ABS Plastic
-
Cooling capacity:
-
4.55kw
-
Net / Gross weight:
-
46/59
Quick Details
-
Warranty:
-
2 years
-
Application:
-
Outdoor, Household
-
Power Source:
-
Electric
-
Type:
-
Air Source Heat Pump
-
Storage / Tankless:
-
tankless
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUNRAIN or OEM
-
Model Number:
-
YC-004TA1
-
Compressor:
-
Copeland
-
Refrigerant:
-
R410a
-
Power supply:
-
220V/1PH/50HZ
-
Heat exchanger:
-
Titanium Heat Exchanger
-
Heating capacity:
-
4.5-20KW
-
Function:
-
Pool Water Heating
-
Sound Level:
-
45dB(1m)
-
Material:
-
ABS Plastic
-
Cooling capacity:
-
4.55kw
-
Net / Gross weight:
-
46/59

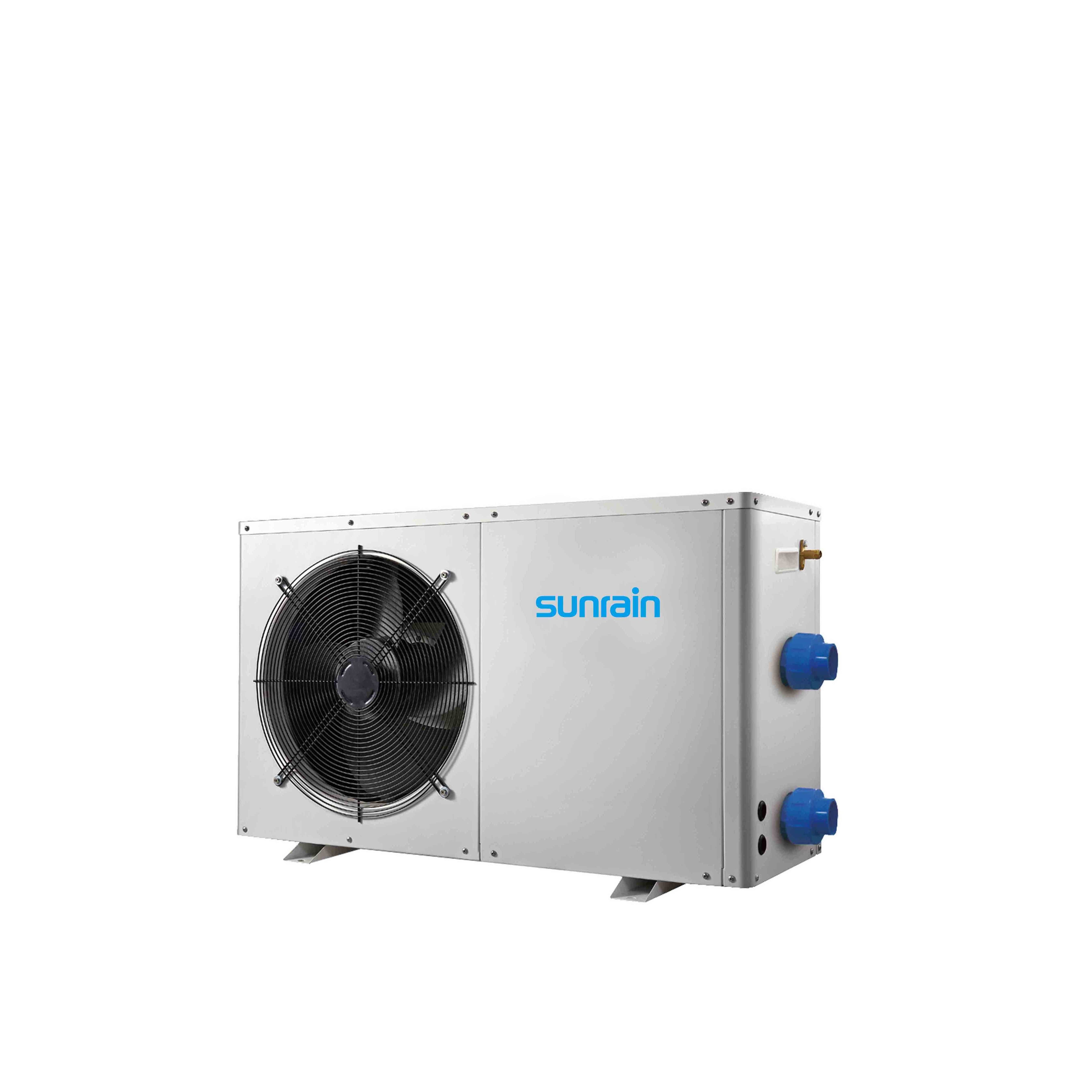

WNcopPSwimming Pool Heat Pump
Sunrain swimming pool heat pump is a smart and reliable solution to heat the pool and spa. With most of the energy absorbed from the air, Sunrain pool heat pumps can heat the pool and spa all year round with much less cost. Running at low cost and without CO 2 discharging, people can enjoy swimming or spa at pleasant water temperature all over the year.
- R410a refrigerant, environmental friendly
- Titanium heat ex-changer, corrosion resistance
- High pressure protection
- Intelligent controller
- MODBUS communication
- Hydrophilic fin coil coating
- Defrost automatically
- 100% factory tested
- The heat pump can heat and cool the swimming pool
Schematic diagram
parameter
| Model No. | YC-005TA1 | YC-006TA1 | YC-008TA1 | YC-012TA1 | YC-016TA1 | YC-030TA1 |
| Power Supply | 220V/1/50Hz | 380V/1/50Hz | ||||
| heating capacity at air 26°C/24 °C, Water 26°C in, 28°C out | ||||||
| heating capacity(KW) | 5.0 | 7.2 | 9.5 | 13.0 | 16.1 | 30.0 |
| Power Input(KW) | 0.86 | 1.24 | 1.62 | 2.25 | 2.75 | 4.95 |
| COP | 5.84 | 5.81 | 5.88 | 5.79 | 5.85 | 6.06 |
| heating capacity at air 15°C/12 °C, Water 26°C in, 28°C out | ||||||
| heating capacity(KW) | 3.6 | 5.5 | 7.0 | 10.0 | 12.5 | 23.5 |
| Power Input(KW) | 0.73 | 1.12 | 1.41 | 2.05 | 2.54 | 4.69 |
| COP | 4.94 | 4.92 | 4.95 | 4.88 | 4.93 | 5.01 |
| heating capacity at air 35°C/24 °C, Water 29°C in, 27°C out | ||||||
| Cooling Capacity (kw) | 3.2 | 5.1 | 6.5 | 9.2 | 11.3 | 20.0 |
| Power Input (KW) | 0.94 | 1.51 | 1.90 | 2.69 | 3.36 | 5.78 |
| EER | 3.41 | 3.38 | 3.43 | 3.42 | 3.36 | 3.46 |
| Max Power Input (kw) | 1.16 | 1.68 | 2.24 | 3.24 | 3.72 | 6.35 |
| Max Current (A) | 5.8 | 8.5 | 11.3 | 16.4 | 18.8 | 11.4 |
| Refrigerant | R410A | R410A | R410A | R410A | R410A | R410A |
| Heat Exchanger | Titanium | Titanium | Titanium | Titanium | Titanium | Titanium |
| Air Flow Direction | Horizotal | Horizotal | Horizotal | Horizotal | Horizotal | Horizotal |
| Water Flow Volume(m³/h) | 2.0 | 3.0 | 3.5 | 5.5 | 6.0 | 12.0 |
| Net Dimensions (L*W*H)(mm) | 936*385*550 | 936*385*550 | 1011*420*614 | 986*420*798 | 986*420*798 | 1003*374*1318 |
| Package Dimensions (L*W*H)(mm) | 1055*460*620 | 1055*460*620 | 1110*480*670 | 1115*490*930 | 1115*490*930 | 1090*460*1474 |
| Working temperature range (°C) | -7~43 | -7~43 | -7~43 | -7~43 | -7~43 | -7~43 |
| Noise (dB) | 48 | 48 | 50 | 52 | 52 | 54 |
| Net Weiht (kg) | 42 | 46 | 58 | 72 | 85 | 135 |
| Gross Weight (kg) | 48 | 52 | 65 | 87 | 100 | 153 |
| water connection (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
Details
R410A New Refrigerant
Energy saving, green, environmental protection, no harm to the ozone layer, is a new star of modern refrigeran t
Low voice
Compressor according to indoor and outdoor temperature automatic frequency adjustment, accurate temperature control, low noise rate, high energy efficiency
