Quick Details
-
Power:
-
5.65kw
-
Weight:
-
2.4tons
-
Dimension(L*W*H):
-
4.3*3.4*2.4M
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Genyond
-
Voltage:
-
380/440v
-
Power:
-
5.65kw
-
Weight:
-
2.4tons
-
Dimension(L*W*H):
-
4.3*3.4*2.4M
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Certification:
-
CE
Specifications
1 Apple, Pear etc juice extractor.
2 High juicing rate 78%.
3 Sweet taste.
4 Large capacity3-120tons/h.
5 ISO & CE.

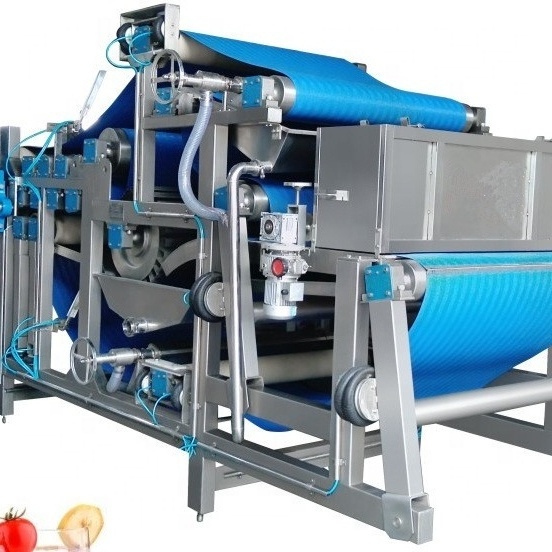

Industrial juice belt extractor
I.Product Description:
1.Product Article No. & Name
Article No
:Belt
extractor
Model:DYJ
2.
Application
It's using in extracting juice for tomato pineapple apple orange,and vegetables.
3.
Structure & principle
It is widely used in solid and liquid separation process of the half end product in VC project,
alcohol project and brewing, starch, and feedstuff, and industrial polluted water and salted
dished salt removing projects. It works automatically and continuously. The aerocyst controls
inflating bags, revision,
And adding pressure. The cleaning water is filtered by an angle net sterilizer and can be
recirculated.
4.Characteristics of juice extractor
1.Industrial jucing machine, high juicing rate(78%), Good test.
2. Stainless steel, sutiable for food hygienic standards.
3. Accessories are all the famous brand.
4. Easy to operate, toch screen control, simple, effective.
5. Full auto CIP cleaning system, no need person to operate.
6.continuous automatic working, the airbag control filter belt correction, pressure,
variable frequency speed regulation.
5.Technical Data of juice extractor
| Model | KADY-800 | KADY-1200 | KADY-1750 | KADY-2500LR | KADY-2500HK |
|
Output(T/H) |
1~3 | 4~7 | 8~12 | 18~22 | 18~22 |
| Belt Length (MM) | 92000 | 14100 | 14500 | 14500 | 17200 |
| Belt width(MM) | 800 | 1200 | 1750 | 2500 | 2500 |
|
Press rate (Apple Juice) |
≥75% | ≥75% | ≥75% | ≥75% | ≥78% |
