Quick Details
-
Brand Name:
-
Raymax
-
Year:
-
2022
-
Voltage:
-
380V/220V Optional
-
Dimension(L*W*H):
-
2520x2060
-
Weight (T):
-
5900 T
-
Motor Power (kw):
-
7.5 kw
-
After Warranty Service:
-
Spare parts
-
Local Service Location:
-
United States
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Metal Forming
-
Function:
-
Stamping Metal Product
-
Material:
-
Metal Steel
-
Usage:
-
Sheet Metal Industry
-
Daylight:
-
1100mm
-
workbench sizes:
-
1000x900mm
Quick Details
-
Machine Type:
-
Four-column Two-beam Hydraulic Press
-
Return Force (kN):
-
200 kN
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Raymax
-
Year:
-
2022
-
Voltage:
-
380V/220V Optional
-
Dimension(L*W*H):
-
2520x2060
-
Weight (T):
-
5900 T
-
Motor Power (kw):
-
7.5 kw
-
After Warranty Service:
-
Spare parts
-
Local Service Location:
-
United States
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Metal Forming
-
Function:
-
Stamping Metal Product
-
Material:
-
Metal Steel
-
Usage:
-
Sheet Metal Industry
-
Daylight:
-
1100mm
-
workbench sizes:
-
1000x900mm

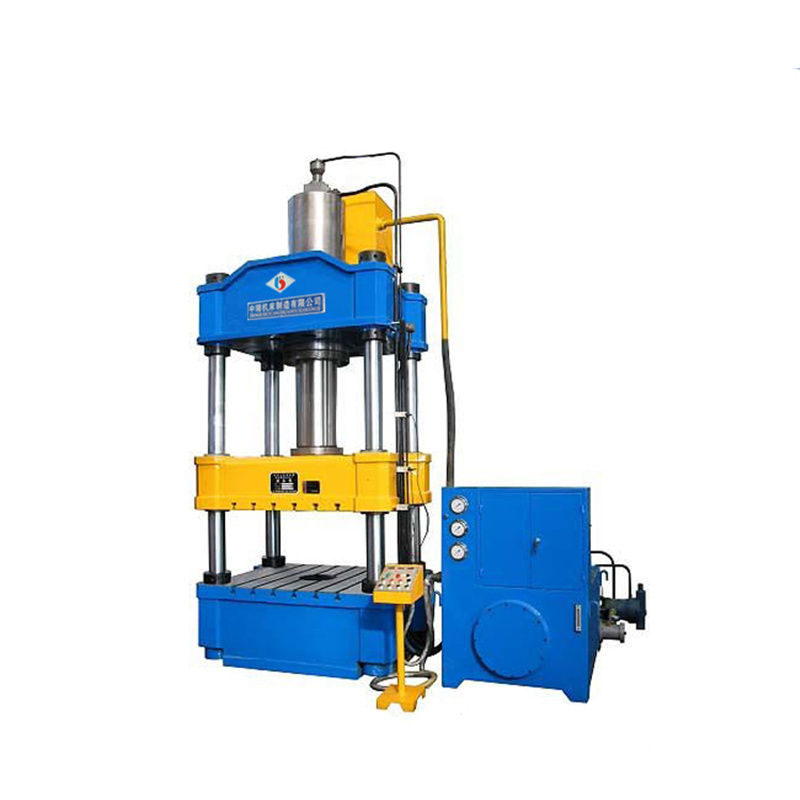

YTD32-200T prensas hidraulicas 100T
Material structure feature:
| 1. Hydraulic press is applicable for metal sheet stretching and pulling, stretching, punching, bending. It is also used for pulling, stretching and pressing large-scale products. Presses offer fast, easy, and safe setup and operation as well as years of trouble-free service. |
| 2.High rigidity and less deformation Compact,wide body frame eliminating vibration for improved ide life and machine. |
| 3.Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts,slide and bolster tables with T-slots. |
| 4.Highly advanced, rigidly supported gears, operate in oil bath without any noise saves space, reduces, shaft deflection, increases gear life. |
Ram adjustment and structure:
| 1.Guiding device: adopts four cylindrical location guiding to make sure of the steady precision, and it's easy to test and maintain. |
|
2.The Machine Adjustable stroke control, Pressure regulator and gauge, allows to limit the ram pressure . Can move the ram up slowly,which allows the operator to control work piece conveniently. |
| 3.Universal fixing-surface of the upper tool can be meeting with the clamping requirement of the tool farthest. |
Electrical system and the safey interlock:
| 1.Electrical components are imported or from Sino-foreign joint Venture,in accordance with international standards,reliable safety,long life,good anti- interference ability,a radiation unit is fitted in electrical cabinet. |
| 2.Protective fence and the safety interlock to ensure the operation safety . Have a movable single-hand pedal switch,easy to operate. |
| 3.The machine by the European Union CE certification and ISO quality system certification. |
Technical Parameters:
| Description | pressure | Max. pressure of liquid | stroke slide | daylight | workbench | motor |
| YTD32-40 | 400KN | 25MPA | 450mm | 750mm | 500X460 | 5.5KW |
| YTD32-63 | 630KN | 25MPA | 500mm | 750mm | 580X500 | 7.5KW |
| YTD32-100 | 1000KN | 25MPA | 600mm | 880mm | 720X580 | 7.5KW |
| YTD32-160 | 1600KN | 25MPA | 700mm | 1000mm | 1000X800 | 11KW |
| YTD32-200 | 2000KN | 25MPA | 700mm | 1100mm | 1000X900 | 15KW |
| YTD32-315 | 3150KN | 25MPA | 800mm | 1250mm | 1260X1120 | 22KW |
| YTD32-400 | 4000KN | 25MPA | 800mm | 1250mm | 1240X1200 | 22KW |
| YTD32-500 | 5000KN | 25MPA | 900mm | 1500mm | 1400X1400 | 2X22 |
| YTD32-630 | 6300KN | 25MPA | 900mm | 1500mm | 1500X1500 | 2X22 |
| YTD32-800 | 8000KN | 25MPA | 900mm | 1500mm | 1600X1600 | 2X30 |
| YTD32-1000 | 10000KN | 25MPA | 900mm | 1500mm | 1600X1600 | 2X30 |
| YTD32-1250 | 12500KN | 25MPA | 900mm | 1500mm | 1700X1600 | 2X37 |
| YTD32-1600 | 16000KN | 25MPA | 900mm | 1500mm | 1600X1600 | 2X37 |
Presses control system:
|
1.Presses operated with automatic one cycle design; two hand push button design for simple and safe operation. Presses which could realize three-operation mode: adjustment, manual and semi- automatic. |
2.PLC press control is flexible and safe. djustable proximity switches allows stroke adjustments in seconds. | 3.The Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA. |
Adaptable accessories:
| 1. Buffer device(Cushion) | 2. Movable table |
| 3. Display screen | 4. Knock-out device |
| 5. Screen security protection device | 6. Oil cooling device. |
| 7. Mould quick clamp device. |
8. Floating guide and rolling bracket. |
