Quick Details
-
Brand Name:
-
Rongda
-
Weight:
-
750 KG
-
Dimension(L*W*H):
-
3600*2000*1600mm
-
Marketing Type:
-
Ordinary Product
-
Max Cardboard size:
-
900mm*500mm
-
Min Cardboard size:
-
120mm*90mm
-
Cardboard thickness:
-
1-3mm
-
Magnet Qty:
-
1-3pcs
-
Gap distance:
-
90-420mm
-
Speed:
-
≤36pcs/min
-
Throat Depth:
-
12-110mm
-
Magnet diameter:
-
8-20mm
-
Machine weight:
-
750KG
Quick Details
-
Voltage:
-
220V/1P, 50Hz
-
Power:
-
5Kw
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Rongda
-
Weight:
-
750 KG
-
Dimension(L*W*H):
-
3600*2000*1600mm
-
Marketing Type:
-
Ordinary Product
-
Max Cardboard size:
-
900mm*500mm
-
Min Cardboard size:
-
120mm*90mm
-
Cardboard thickness:
-
1-3mm
-
Magnet Qty:
-
1-3pcs
-
Gap distance:
-
90-420mm
-
Speed:
-
≤36pcs/min
-
Throat Depth:
-
12-110mm
-
Magnet diameter:
-
8-20mm
-
Machine weight:
-
750KG
Product Description

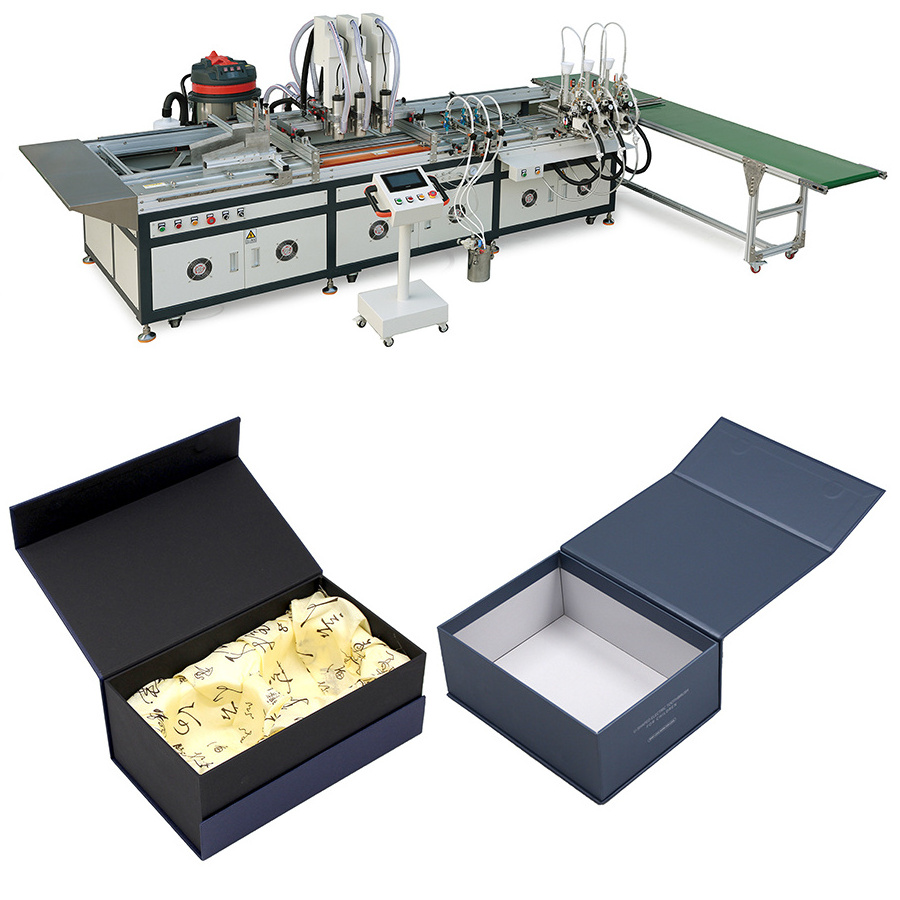

The machine is applied to make the book style rigid boxes. It has the functions of automatically feeding the material, drilling, gluing, pasting the magnets/iron discs. In place of the hand working, it is efficient, stable and small footprint which is widely accepted by customers.
Features
1. Auto non-stop feeder: It adopts the bottom drawn feeder. The material(cardboard/case) is fed from the bottom of stacker (Max. 200mm).
2. Auto drilling: the depth of hole can be adjusted. And the waste of material is automatically removed and collected by vacuum cleaner. It avoids the problem of uneven hole by hand working.
3. Auto gluing: The volume and position of gluing is adjustable according to the products, which efficiently solve the problem of glue squeeze-out and positioning. Iron disc has the optional device of Vibrating plate which can feed the discs automatically.
4. Auto pasting: It can stick 1-3pcs magnets/iron discs. The position, speed, pressure and program are adjustable.
2. Auto drilling: the depth of hole can be adjusted. And the waste of material is automatically removed and collected by vacuum cleaner. It avoids the problem of uneven hole by hand working.
3. Auto gluing: The volume and position of gluing is adjustable according to the products, which efficiently solve the problem of glue squeeze-out and positioning. Iron disc has the optional device of Vibrating plate which can feed the discs automatically.
4. Auto pasting: It can stick 1-3pcs magnets/iron discs. The position, speed, pressure and program are adjustable.
Specification
|
Cardboard size
|
Max. 900*500mm
Min. 120*90mm |
|
Stacker Height
|
20cm
|
|
Throat Depth
|
12-110mm
|
|
Cardboard thickness
|
1-3mm
|
|
Magnet diameter
|
8-20mm
|
|
Magnet Qty.
|
1-3pcs
|
|
Gap distance
|
90-420mm
|
|
Glue tank capacity
|
1L
|
|
Speed
|
≤36pcs/min
|
|
Air supply
|
0.6Mpa
|
|
Power
|
5Kw, 220V/1P, 50Hz
|
|
Machine dimension
|
3600*2000*1600mm
|
|
Machine weight
|
780KG
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
