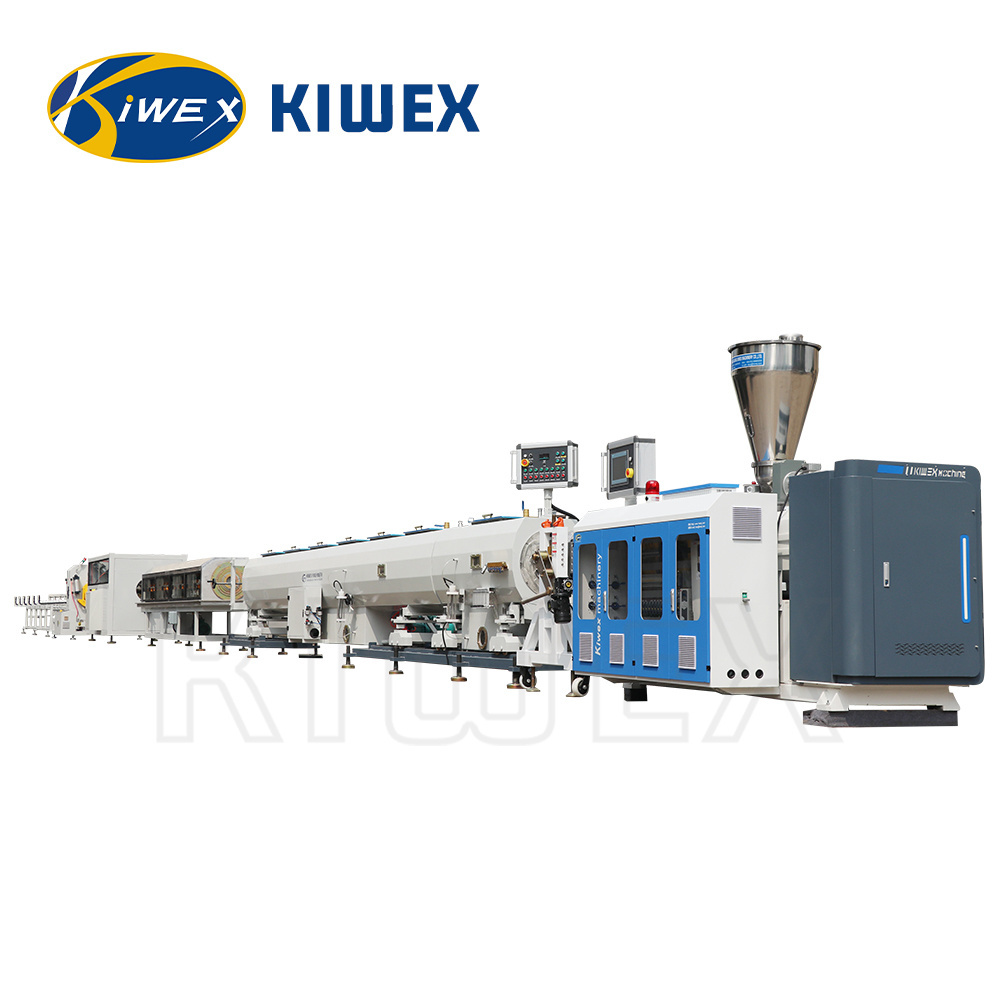

Kiwex automatic water supply pvc pipe production line plastic cpvc pipe extruder machine price
Kiwex automatic water supply pvc pipe production line plastic cpvc pipe extruder machine price
Kiwex automatic water supply pvc pipe production line plastic cpvc pipe extruder machine price
Kiwex automatic water supply pvc pipe production line plastic cpvc pipe extruder machine price
Kiwex automatic water supply pvc pipe production line plastic cpvc pipe extruder machine price
Kiwex automatic water supply pvc pipe production line plastic cpvc pipe extruder machine price
Kiwex automatic water supply pvc pipe production line plastic cpvc pipe extruder machine price
Kiwex automatic water supply pvc pipe production line plastic cpvc pipe extruder machine price

Kiwex automatic water supply pvc pipe production line plastic cpvc pipe extruder machine price

FOB Reference Price: Get Latest Price
≥1 Sets
US $28000
≥2 Sets
US $27000
≥3 Sets
US $26500
≥5 Sets
US $25000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Screw Speed (rpm):
34 rpm
Place of Origin:
Jiangsu, China
Brand Name:
Kiwex Machinery
Voltage:
Customized
Dimension(L*W*H):
8000mm 2000mm 2500mm
Power (kW):
37
Weight:
3000 KG
Name:
Pvc Pipe Production Line
Keywords:
PVC Pipe Extruder Line
Processing Type:
Exturding
Screw type:
Conical Twin-srew
Raw material:
PVC Powder
Function:
Pipe Making
Color:
Cutomised
After-sales Service Provided:
Video Technical Support

Quick Details

Screw Design:
Double-screw
Screw L/D Ratio:
30:1
Screw diameter (mm):
65/132, 65 Mm
Screw Speed (rpm):
34 rpm
Place of Origin:
Jiangsu, China
Brand Name:
Kiwex Machinery
Voltage:
Customized
Dimension(L*W*H):
8000mm 2000mm 2500mm
Power (kW):
37
Weight:
3000 KG
Name:
Pvc Pipe Production Line
Keywords:
PVC Pipe Extruder Line
Processing Type:
Exturding
Screw type:
Conical Twin-srew
Raw material:
PVC Powder
Function:
Pipe Making
Color:
Cutomised
After-sales Service Provided:
Video Technical Support

PVC PIPE Extrusion Line.

Our company has full range of PVC pipe extrusion line, including four cavity pipe extrusion line, double cavity pipe extrusion line and large diameter pipe extrusion line. Our company will also provide basic formula for PVC pipe production, customer can adjust easily based on the formula. We manufacture machines for production of different PVC pipes, including U-PVC, C-PVC, M-PVC, PVC-O pipes, etc. Our PVC pipe extrusion line can produce from size of minimum 16mm to 1000mm with single layer or multi-layer.
PVC PIPE PEODUCTION LINE TECHNICAL PARAMETER
Model
Diameter rang（m）
Model
Output（kg/h)
Max speed（m/min）
Total installed power（kw）
Line length（m）
KWX-75PVC
Φ16-Φ75
KWX-65
250
15
90
24
KWX-110PVC Ⅰ
Φ20-Φ110
KWX-65
250
10
90
24
KWX-110PVC Ⅱ
Φ20-Φ110
KWX-65
250
10
110
25
KWX-160PVC
Φ40-Φ60
KWX-65
250
8
120
25
KWX-250PVC Ⅰ
Φ50-Φ250
KWX-65
250
7
130
25
KWX-250PVC Ⅱ
Φ50-Φ250
KWX-80
450
7
185
25
KWX-400PVC
Φ110-Φ400
KWX-80
450
2.4
240
32
KWX-630PVC
Φ110-Φ400
KWX-92
750
2
330
33
KWX-800PVC
Φ110-Φ630
KWX-95
1000
1
380
46
KWX-1000PVC
Φ630-Φ1000
KWX-95
1000
0.8
420
50
Extruder system
Used to extruder pvc pipe/prfile plastic product.
a.Material of Screw:38CrMoAl
b.Heating zones:4
c.Heating Mode:Cast Alumina+Stainless
d.Steel Covering
e.Inverter:ABB,Other famous brand
f.Contactor:Schneider
g.Relay:Omron
h.Temperature:Omron
Extruder Molds
Exchange mold can produce different dimater and type product.we provide single,double,four cavities production line.
a. Material of inner mould parts:40Cr
b.Mold diameters:Accroding to customer drawing
c. Material of the calibration Bushing: Stannum Bronze
Vacuum calibration table
Used to shapper the product, Vacuum shaping
a.Vacuum pump:3kw*2
b.water pumpp:4kw*2
c.Tank Material:Stainless Steel
Haul-off machine
Pull the pipe forward through the track. Adjusting the production line speed
a.Haul off unit(2,3,4,6,8 claws)
b.Pneumatic Clamping:Adopt anti-friction rubber block
c.Inverter:Hitachi or ABB
d.Low voltage electric parts:LG or Schneider
Cutter Machiner
Used for cutting the set size, It can be combined with tractor.
a.Motor Power:2.2kw
b.Material of Blade:Crsi
c.Synchronous speed:1-12m/min
d.Contorl:PLC
e.Aluminum"HALF"CLAMPS

Q1: Are you a factory or trading company?

We are the manufacturer and we have 15 years factory experience .As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory.

Q2: How long is the delivery time?

For standard machines, it would be 7-10 working days; For non-standard machines and customized machines according to client s specific requirements, it would be 25 to 35 working days.

Q3: How should I pay for my order ? what is the procession of this purchase?

You can do 30% prepayment at first, then we will start to make production. When the machine is ready , we will take pictures to you, and then you can do the balance.after we got your payment. We will send the machine to you.

Q4:How is the machine warranty and after-sale service?

All our machine would have a warranty of 12 months since the date of machine installation in client's factory. And beyond warranty period, we can offer pare parts or repair service with or without charges
