Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Wintai-Tech Button Switch
-
Model Number:
-
Vertical Button Switch PS-58G36D
-
Product name:
-
Tactile Button Switch
-
Material:
-
PA66/Brass/Stainless steel
-
Mechanical Life:
-
200000cycles
-
Operating force:
-
160gf/250gf
-
Certification:
-
Reach, Rohs, ISO9001, TUV, CCC.
Quick Details
-
Protection Level:
-
Ip35
-
Max. Current:
-
0.5A
-
Max. Voltage:
-
30VDC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Wintai-Tech Button Switch
-
Model Number:
-
Vertical Button Switch PS-58G36D
-
Product name:
-
Tactile Button Switch
-
Material:
-
PA66/Brass/Stainless steel
-
Mechanical Life:
-
200000cycles
-
Operating force:
-
160gf/250gf
-
Certification:
-
Reach, Rohs, ISO9001, TUV, CCC.

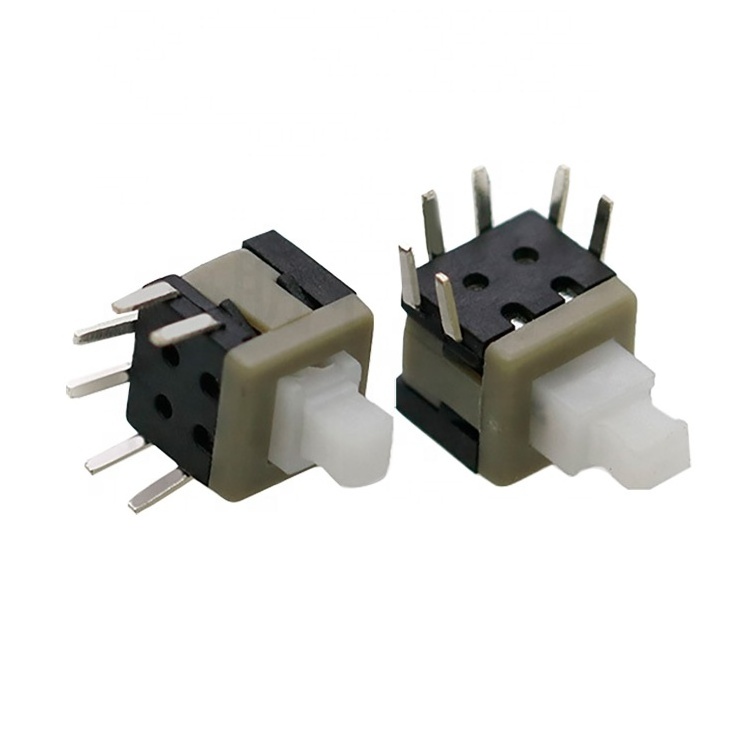

6pin Right Angle Push Switch
Self - locking button switch is a common push button switch with and no self and locking options. At the first time of the switch button, the switch is switched on and held, that is, self-lock. On the second time of the switch button, the switch is off and the switch button pops out. The circuit is disconnected. "Self-locking" means that the switch can maintain a certain state (on or off) through the locking mechanism. From the operation mode, it can be divided into knob type, plate moving type (including button switch, boat switch) and button type.
Products Description
Product Structure Description
Generally speaking, the self-locking push switch is composed of 8 parts,
such as knob, contact,cover,case,terminals,frame, spring and cam stick., s shown on the right.
(1) The cover, is made of nickel-plated stainless steel plate. (2) The plunger, is made of nylon with black,red,yellow,green color optional. (3) The contact dome, is made of stainless steel plated silver. (4) Bass, is made of Nylon with black color. (5)Terminals，are made of brass.
(1) The cover, is made of nickel-plated stainless steel plate. (2) The plunger, is made of nylon with black,red,yellow,green color optional. (3) The contact dome, is made of stainless steel plated silver. (4) Bass, is made of Nylon with black color. (5)Terminals，are made of brass.
Details Images
The circuits characteristics
PCB installation method
Product Paramenters
|
Product Name
|
Push button switch
|
|
Current Rating
|
0.3A 30VDC
|
|
Lock travel
|
1.1mm
|
|
Full travel
|
1.9mm
|
|
Timing
|
Non-shorting
|
|
Operating Force
|
160gf, 250gf
|
|
Operating Temperature
|
-25oC ～ +80oC
|
|
Life Time
|
200,000 Cycles
|
