Quick Details
-
Model Number:
-
MPS -4
-
Warranty:
-
12 Months
-
Certification:
-
ce
-
Motor power:
-
7.5 kw
-
Color:
-
Customer Request
-
Power Supply:
-
110V~450V optional
-
Max Lifting Capacity(extra cost):
-
3000 kg
-
Material:
-
High Strength Manganese Steel
-
Anti-rust Treatment:
-
Powder Coating
-
Controller:
-
Key Switch With Emergency Button
-
Product name:
-

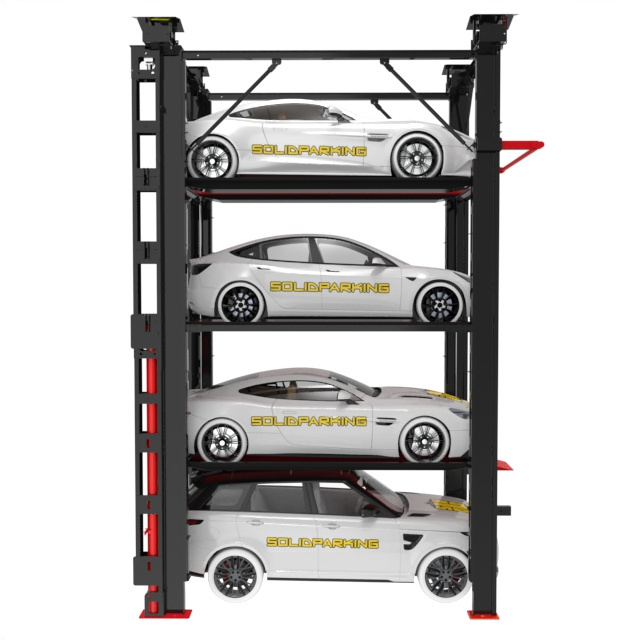

4 Post Car Lift
-
Application:
-
4Sshop
Quick Details
-
Lifting Capacity:
-
2000 kg
-
Place of Origin:
-
China ,Shandong
-
Brand Name:
-
Solidparking
-
Model Number:
-
MPS -4
-
Warranty:
-
12 Months
-
Certification:
-
ce
-
Motor power:
-
7.5 kw
-
Color:
-
Customer Request
-
Power Supply:
-
110V~450V optional
-
Max Lifting Capacity(extra cost):
-
3000 kg
-
Material:
-
High Strength Manganese Steel
-
Anti-rust Treatment:
-
Powder Coating
-
Controller:
-
Key Switch With Emergency Button
-
Product name:
-
4 Post Car Lift
-
Application:
-
4Sshop
Product Description
Safety Protection
Steel structure part
1. Following the concept of quality first, select high-quality steel, laser cutting, machine welding to ensure the accuracy and quality of products.
2. The surface of the equipment adopts hot-dip galvanizing, electrogalvanizing,spraying,electrophoresis, anti-slip, and other finishing methods, and strictly requires the thickness and adhesion of the finishing method, which will face complex environmental challenges.
2. The surface of the equipment adopts hot-dip galvanizing, electrogalvanizing,spraying,electrophoresis, anti-slip, and other finishing methods, and strictly requires the thickness and adhesion of the finishing method, which will face complex environmental challenges.
Electrical part
1. From steel structure to electrical to safety protection, it is formulated in strict accordance with the EU CE safety standards.
2. The use of electromagnets, photoelectric induction, emergency stop, fall prevention devices, limit switches, and other electrical devices to ensure that parking equipment can face the challenges of various unexpected situations.
2. The use of electromagnets, photoelectric induction, emergency stop, fall prevention devices, limit switches, and other electrical devices to ensure that parking equipment can face the challenges of various unexpected situations.
Power part
In terms of power, there are two ways of motor drive and hydraulic drive, the hydraulic operation is more stable, and the motor can be adapted to large parking equipment. Configure different drive modes according to different needs.
Specification
|
item
|
value
|
|
Equipment Weight
|
5000KG-6000KG
|
|
Lifting Capacity
|
3000KG
|
|
Parking Height
|
1500mm-2000mm
|
|
Parking Length
|
5000mm
|
|
Control Box
|
Integrated Modules For Simple Wiring
|
|
Electrical Requirement
|
220-450 V, 1/3 Phase, 50/60 HZ
|
|
Control Power
|
24 V
|
|
Parking Time
|
55 Seconds
|
|
Surface finishing
|
Anti-rust smooth galvanizing and power coating finishing
|
|
Safety lock
|
Full range Dynamic anti-fall locks
|
|
Control switch
|
Safety key switch controller
|
Packing & Delivery
|
Quantity
|
Delivery
|
Packing
|
Transportation
|
|
|
|
1-3 units
|
35
|
Steel Structure with Plastic Wrap
|
air and sea
|
|
|
|
10-50 units
|
50
|
Steel Structure with Plastic Wrap
|
air and sea
|
|
|
|
＞50units
|
To be negotiated
|
Steel Structure with Plastic Wrap
|
air and sea
|
|
|
commitment:
1.Quality check before delivery, I wish you rest assured.
2.Take photos throughout the journey to help you know the whole process.
3.Follow the whole delivery process to ensure smooth delivery of goods
.
Credit guarantee
Company instruction
Solid Parking has been providing OEM service to two of the world largest parking equipment companies for years. We are committed and dedicated to continually supply the most reliable and cost-efficient parking systems and related products to our customers.
We are specialized on two post car stickers, four post car stickers, pit parking lifts, multi-level parking lifts and automatic parking systems. In order to guarantee the quality, our production has adopted the most advanced technology including laser cutting and robotic welding process.
All of our products are CE certified. The products are designed and manufactured for long-term heavy-duty use. Providing high quality parking products and professional services to our customers is our mission.
