Quick Details
-
Brand Name:
-
ZOYO
-
Voltage:
-
380V
-
Power:
-
6.5kW/8kW
-
Dimension(L*W*H):
-
1440*630*970mm
-
Weight:
-
450 KG
-
Hopper volume:
-
20L
-
Shell, frame, motor base:
-
SUS304 stainless steel
-
Motor:
-
Motor
-
Reducer:
-
High torque reducer
-
Control appliances:
-
Schneider Electric
-
Bearing:
-
Japanese NSK
-
Grease:
-
Mobil
Quick Details
-
Application:
-
Meat deboning
-
Production Capacity:
-
300-500kg/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZOYO
-
Voltage:
-
380V
-
Power:
-
6.5kW/8kW
-
Dimension(L*W*H):
-
1440*630*970mm
-
Weight:
-
450 KG
-
Hopper volume:
-
20L
-
Shell, frame, motor base:
-
SUS304 stainless steel
-
Motor:
-
Motor
-
Reducer:
-
High torque reducer
-
Control appliances:
-
Schneider Electric
-
Bearing:
-
Japanese NSK
-
Grease:
-
Mobil
Product Description

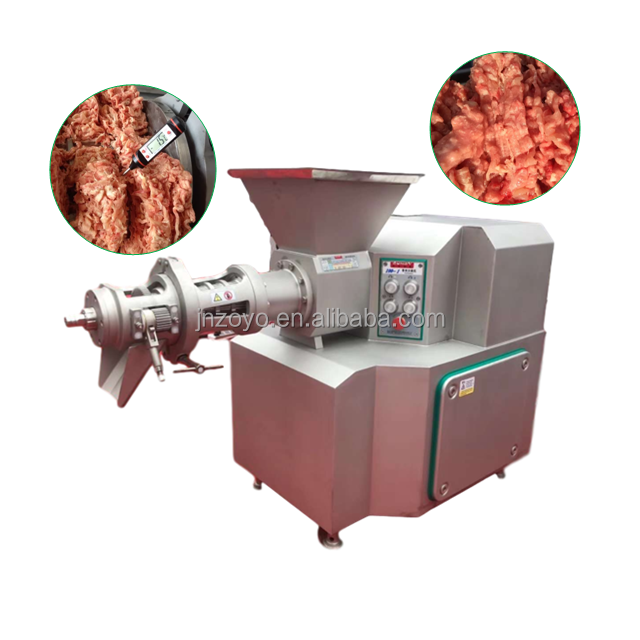

Fresh Frozen Poultry Chicken Meat Deboner Deboning Machine for Sausages Making Plants
ZYD-100-I
Separable raw materials:
Chicken, goose, duck, rabbit, fish(such as
chicken skeleton, full and half frame, whole chicken, chick neck, rabbit frame, chicken bone cartilage and meat fork, etc.)
Working characteristics:
The material is separated by one machine at one time, saving manpower, material resources and space. This machine can be used for
low-temperature separation and chilled separation (the best separation raw material temperature is -3～0℃). The output rate can
reach between 65% and 90% (the specific output rate parameter depends on the raw materials.)
Separated meat puree characteristics:
1. Good color, large addition；
2. Low bone residue content (0.06%~0.08%), good taste, no gritting teeth；
3.The meat tissue structure is small in damage, with flakes, filaments, and strong granules, which improve the product quality；
4. The meat temperature has been at low temperature from separation to use, .bacteria are not easy to multiply, and it is not easy to oxidize
ZYD-100-I characteristics
|
Item
|
Origin and brand
|
|
Shell, frame, motor base
|
All SUS304 stainless steel
|
|
Overall waterproof (inspection window, button station）
|
Hengshui Wanbang special (made according to the workshop environment)
|
|
Motor
|
Siemens two-speed motor
|
|
Reducer
|
Jiangsu Guomao hard tooth surface high torque reducer
|
|
Control appliances
|
Schneider Electric
|
|
Bearing
|
Japanese NSK
|
|
Grease
|
All use Mobil grease
|
Specification
|
Model
|
Capacity
|
Power
|
Dimension
|
Weight
|
|
ZYD-100-I
|
300-500kg/h
|
6.5/8kW
|
1440*630*970mm
|
450kg
|
|
ZYD-130-I
|
800-1000kg/h
|
13/16kw
|
1990*820*1300mm
|
850kg
|
|
ZYD-160-II
|
1500-2000kg/h
|
18.5/22kW
|
2130*890*1400mm
|
1350kg
|
|
ZYD-180-I
|
2500-3000kg/h
|
26/32kW
|
2420*1200*1500mm
|
1650kg
|
|
ZYD-180-II
|
3000-4000kg/h
|
45kW
|
2420*1200*1500mm
|
1650kg
|
|
ZYD-220-I
|
5000-6000kg/h
|
55kW
|
2700*1450*1650mm
|
2150kg
|
Details Images
P
rocessed meat from the bones
Customer on Site Cases
Finished meat products
