Quick Details
-
Application:
-
Warehouse
-
Design Style:
-
Traditional
-
Place of Origin:
-
China
-
Brand Name:
-
ANDY
-
Model Number:
-
Membrane Structure
-
Type:
-
Architecture Membrane
-
Product name:
-
Space Frame Steel Structure With Membrane For Large Stadium
-
Feature:
-
Anti Fire/ waterproof
-
Certificates:
-
ISO
-
Membrane material:
-
PVDF/ PTFE/ETFE/PVC
-
Life time:
-
10~15 years at least
-
Keywords:
-
Membrane Structures canopy
-
Drawing design:
-
AutoCAD,PKPM,MTS,3D3S
-
Standard:
-
ASTM, BS, DIN, GB, JIS
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
Warehouse
-
Design Style:
-
Traditional
-
Place of Origin:
-
China
-
Brand Name:
-
ANDY
-
Model Number:
-
Membrane Structure
-
Type:
-
Architecture Membrane
-
Product name:
-
Space Frame Steel Structure With Membrane For Large Stadium
-
Feature:
-
Anti Fire/ waterproof
-
Certificates:
-
ISO
-
Membrane material:
-
PVDF/ PTFE/ETFE/PVC
-
Life time:
-
10~15 years at least
-
Keywords:
-
Membrane Structures canopy
-
Drawing design:
-
AutoCAD,PKPM,MTS,3D3S
-
Standard:
-
ASTM, BS, DIN, GB, JIS
Space Frame Steel Structure With Membrane For Large Stadium
| Brand name |
Andy
|
| Model | 1.Single slope, Double slope, Multi-slope. |
| 2.Single span, Double-span, Multi-span, Single floor, Double floors. | |
| Column and beam | 1.Material Q345(S355JR)or Q235(S235JR) steel. |
| 2.All bolts connecting. | |
| 3.Straight cross-section or Variable cross-section. | |
| Fabrication | Advanced Automatic Welding Machines |
| Quality control | GB/T19001-2000----ISO9001:2000 |
| Surface | Hot-dip galvanized or painted |
| Roof and wall panel | 1.EPS ,PU ,Rockwool sandwich panel. |
| 2.Single colorful corrugated steel sheet0.326~0.8mm thick, YX28-205-820(820mm wide). | |
| 3.Sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, 950mm or 960mm width. | |
| Carrying capacity | 1.Resisting winds and seismic impacts. |
| 2.Bearing heavy snows. | |
| Drawing | 1.Making the design and quotation according to your requirements very soon. |
| 2.Making the quotation according to your drawings. | |
| 3.Giving you the satisfying opinion to your project. |
Ⅱ Quality standard
1.Certificate: ISO9001:2000
2.Code for design of steel structure: GB 50017-2003
3.Technical code of cold-formed thin-wall steel structure: GB50018-2002
4.Load code for the design of building structures. GB 50009-2006
5.Construction quality acceptance of steel: GB50205-2001
6.Code for design, construction and acceptance of high strength for steel structure, JGJ82-2011
7.Technical specification for welding of steel structure building: JGJ 81-2002
8.Technical specification for steel Structures of tall buildings: (JGJ99-98)
Ⅲ . Structure Assembly
1.Steel Framework:
Component: H-Column, H-Beam & C/Z-Purlin
Connection of steel structure method: Welding, Bolted
2.Surface treatment: Painting, Galvanized
3.Roof &Wall: colored steel tiles or colored steel sandwich panel as per request
4.Doors: Rolling or Pushing, as reques .
Comparison between different membrane structure material
| Item | ETFE | PTFE | PVDF | Environmental project |
|
Application environment |
High requirement such as air terminal |
High requirement such as air terminal |
Common or special requirement |
sewage lagoon |
| Base fabric | ethylene-tetrafluoro-ethylene | glass fibre | PVC | PVC |
| Coating layer | No | PTFE | PVDF | Aging-resistant and |
| anti-corrosion | ||||
| Self-clean | Very good | Very good | Good | Good |
| Light transmittance | 95% | 6-15% | 5-20% | 5-15% |
| Life time | 20+ years | 30+ years | 15-25 years | 15-25 years |
| Tensile strength | 1000-1500N | 4000-9000N | 3000-8000N | 3000-8000N |
| Fireproof | B1 | A2 | B1 | B1 |
| Transport | Unfolded | Unfolded | Foldable | Foldable |
| Process | Hard | Hard | Easy | Easy |
| Installation | air pillow | Second time tensile | One time tensile | One time tensile |
| Price | High | High | Common | Common |

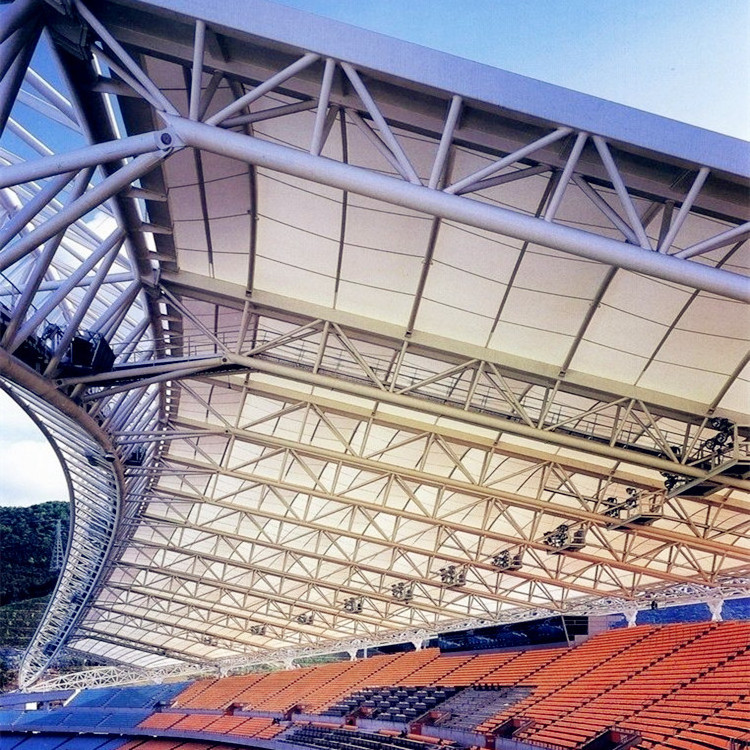

Product picture: Stadium Steel With Roofing
1-We are both of Manufacturer & trading company ..so we can show u the compattive price with high quality + controllable delivery with professional following on whole bussiness ..
2-we have own experienced designers and technical engineers team ..so we can show u the most effective surpervision once the project on abraod ..
3-we have the advanced softwares and sysyterm ,so we can design all fteatures productions for u ..
