Quick Details
-
Screen Dimension:
-
0.4"
-
Material:
-
AlGaInP
-
Wave length:
-
525nm
-
Emitting color:
-
Green
-
Voltage:
-
2.8-3.0v
-
Reverse Current per segment:
-
5uA
-
Luminous Intensity:
-
30mcd
-
Face color:
-
Black surface/White Segment
-
Sample lead time:
-
5-7days
-
Delivery by:
-
DHL
Quick Details
-
Brand Name:
-
ALLLIGHT
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
AL-D4012BWSR/58-040C
-
Screen Dimension:
-
0.4"
-
Material:
-
AlGaInP
-
Wave length:
-
525nm
-
Emitting color:
-
Green
-
Voltage:
-
2.8-3.0v
-
Reverse Current per segment:
-
5uA
-
Luminous Intensity:
-
30mcd
-
Face color:
-
Black surface/White Segment
-
Sample lead time:
-
5-7days
-
Delivery by:
-
DHL
Four Digits 7 Segment Clock LED Digital Display
Desrciption
|
Part No. |
LED Chip |
Face Color |
||
|
Material |
Emitting Color |
Surface |
Segments |
|
|
AL-D4012BWSR/58-040C |
AlGaInP |
Green |
Black |
White |
Absolut Maximum Ratings at Ta=25 °C
|
Parameter |
Symbol |
Maximum |
Unit |
|
Power Dissipation Per Segment |
Pd |
76 |
mW |
|
Peak Forward Current |
Ifp |
70 |
mA |
|
Forward Current Per Segment |
If |
25 |
mA |
|
Reverse Voltage Per Segment |
Vr |
5 |
V |
|
Operating Temp Range |
Topr |
-25 °C to +85°C |
|
|
Storage Temp Range |
Tstg |
-40 °C to +100°C |
|
|
Soldering Temp |
Tsol |
Dip Soldering:260 °C for 5 sec. Hand soldering:350 °C for 3 sec. |
|
Electrical and Optical Characteristics:
|
Parameter |
Symbol |
Test Condition |
Min. |
Typ. |
Max. |
Unit |
|
Luminous Intensity Per segment |
Iv |
If=20mA/Seg. |
10 |
30 |
|
mcd |
|
Peak Wavelength |
Λ p |
If=20mA/Seg. |
- |
530 |
|
nm |
|
Dominant Wavelength |
Λ d |
If=20mA/Seg. |
520 |
- |
525 |
nm |
|
Spectrum Line Halfwidth |
ΔΛ |
If=20mA/Seg. |
_ |
30 |
_ |
nm |
|
Forward Voltage |
Vf |
If=20mA/Seg. |
|
1.8 |
2.4 |
V |
|
Reverse Current Per Segment |
Ir |
Vr=5V |
- |
- |
50 |
uA |

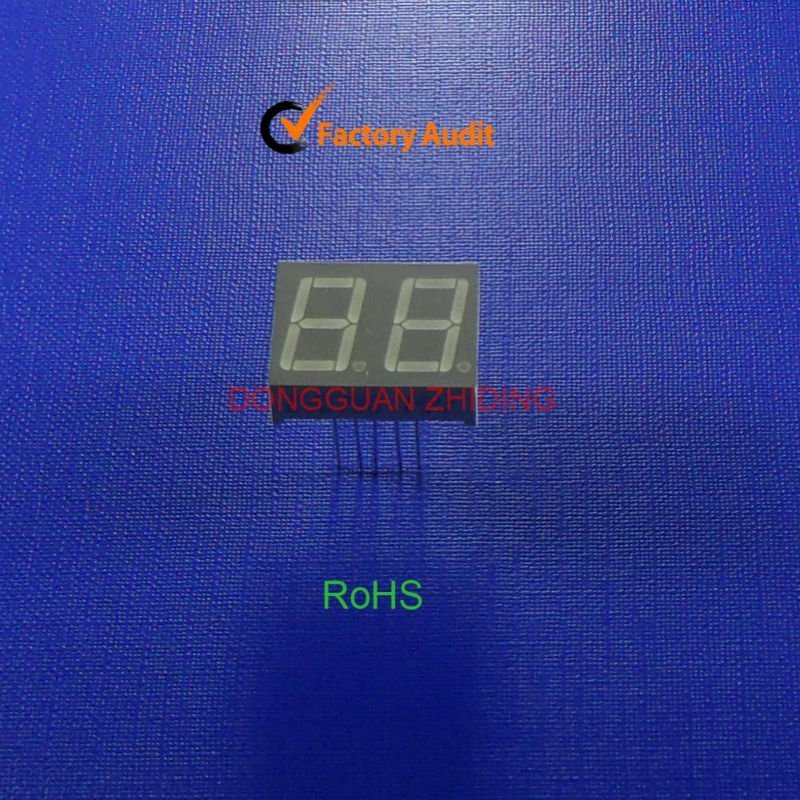

0.8inch green color two digits led display
