Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1600*3000mm
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
Rdworks
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SAP-LAS
-
Weight (KG):
-
500 KG
-
Products handled:
-
fabric
-
Laser power:
-
150w
-
Function:
-
Cutting fabric,leather,pu etc
-
Laser tube:
-
RECI Brand Sealed CO2 Glass Tube
-
Color:
-
Blue-white
-
Compatible software:
-
CorelDraw ,AutoCAD
-
Driving system:
-
Hybrid servo motor
-
Controller:
-
DSP(RUIDA RDC6445G)
-
Guide rail:
-
Internal dual-shaft linear rail
-
Power supply:
-
AC 110v/220V ±10%, 50/60Hz
-
Product name:
-
large format tailoring fabric wool felt laser cutting machine price
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-40000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1600*3000mm
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
Rdworks
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SAP-LAS
-
Weight (KG):
-
500 KG
-
Products handled:
-
fabric
-
Laser power:
-
150w
-
Function:
-
Cutting fabric,leather,pu etc
-
Laser tube:
-
RECI Brand Sealed CO2 Glass Tube
-
Color:
-
Blue-white
-
Compatible software:
-
CorelDraw ,AutoCAD
-
Driving system:
-
Hybrid servo motor
-
Controller:
-
DSP(RUIDA RDC6445G)
-
Guide rail:
-
Internal dual-shaft linear rail
-
Power supply:
-
AC 110v/220V ±10%, 50/60Hz
-
Product name:
-
large format tailoring fabric wool felt laser cutting machine price

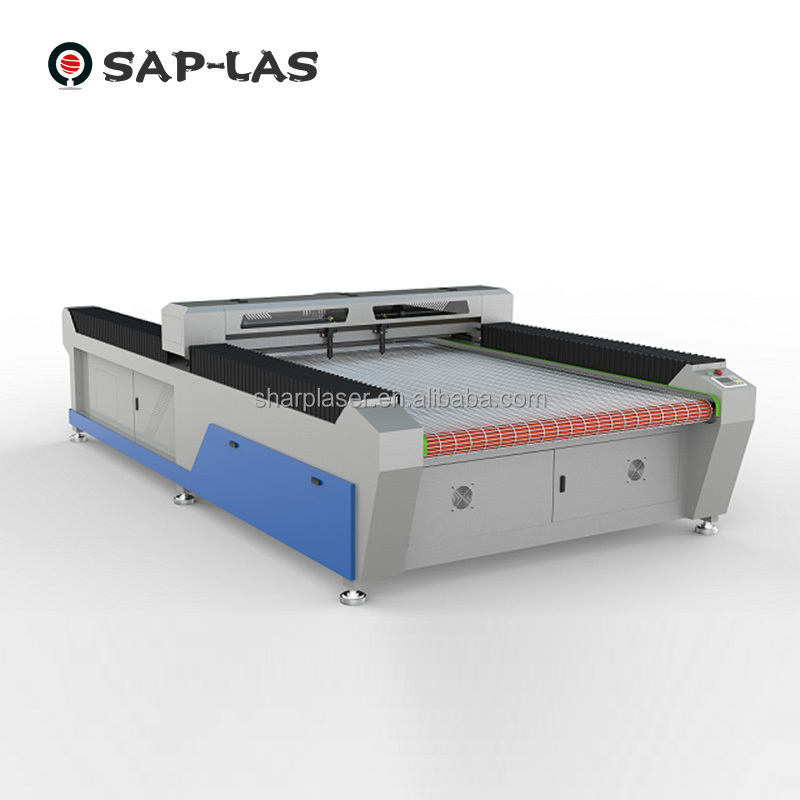

CC1630A auto-feeding roll fabric laser cutting machine
auto feeding ccd camera computerized embroidery textile leather wool felt cotton home fabric laser cutting machine price
This model is CO2 laser cutting machines with full frame CCD camera designed for efficient processing of printed fabric, leather, textiles and many more,to cut T-Shirt,Logo,shoe upper,leather wallet,key wallet,and many more. Available in different workstations sizes with several power options, these laser cutting systems provide high-quality results at maximum speed.
| Parameter | |
| Name | CO2 laser cutting machine with projector |
| Model | CC1630A |
| Working area | 1600*3000mm(1300*900mm,1800*1000mm,1600*1000mm optional) |
| Cooling ways | Water cooling |
| Engraving speed | 0-40000mm/min |
| Cutting speed | 0-40000mm/min |
| Laser power | 150w |
| Laser type | CO2 laser,RECI brand,service life >10000hrs |
| Laser output control | 0-100% controlled by software |
| Min engraving size | English letters,1*1mm |
| Scanning resolution | 4000DPI |
| Locating accuracy | ≤0.01mm |
| Controlling software | DSP controlling system,RDWORKS V8 |
| Format supported | DST,PLT,DXF,AI,LAS,BMP,JPG,PNG,etc |
| Software environment | Windows xp/7/8/10 |
| Compatible software | Coreldraw,Autocad |
| Color separation output | Yes |
| Slope engraving | Yes |
| Driving system | Stepper motor |
| Auxiliary accessories | Exhaust fan,fume tubes,air pump |
| Working table | Stainless steel net +Auto-feeding working table |
| Applicable materials | Fabric,leather,wood,MDF,glass,stone,plastic,rubber , etc |
| Working environment Temperature | 0-45℃,Humidity5-95%(no condensate water.) |
| Power supply | 110v/220v,50hz/60hz |
| Weight | 800kg |
| Dimension | 3500*2100*1100mm |
Auto Feeding Cloth Laser Cutting machine1. Professional design for cutting Non Woven fabric, fabric, leather, textile, cloth, jens, as well as wood, acrylic and so on.2. DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.
3. Owns functions of restoring from power off, continuation on break point.4. Transmit files directly in Coreldraw, AutoCAD,etc.5. Adopt international linear rail, more precision.
