Quick Details
-
Dimension(L*W*H):
-
4.1X1.3X1.75M
-
Year:
-
2024
-
Power (kW):
-
44 kW
-
Weight (KG):
-
8000 KG
-
Name:
-
Waste Recycling Plant For Sale Tyre Crushing Machine
-
Color:
-
Blue/green or as your requirments
-
Advantage:
-
Energy saving 1/3 compare with similar machines
-
Lead time:
-
20 days
-
Output::
-
40pcs/hour
-
Output:
-
1-10 tons/hour
-
Certificate:
-
CE/ISO
-
Keyword:
-
used tire cutter
-
Application:
-
Recycle waste tyre
-
Machine Type:
-
Fully Automatically Tire Recycling Machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LIKE
-
Voltage:
-
380V, Customers' request customized motor
-
Dimension(L*W*H):
-
4.1X1.3X1.75M
-
Year:
-
2024
-
Power (kW):
-
44 kW
-
Weight (KG):
-
8000 KG
-
Name:
-
Waste Recycling Plant For Sale Tyre Crushing Machine
-
Color:
-
Blue/green or as your requirments
-
Advantage:
-
Energy saving 1/3 compare with similar machines
-
Lead time:
-
20 days
-
Output::
-
40pcs/hour
-
Output:
-
1-10 tons/hour
-
Certificate:
-
CE/ISO
-
Keyword:
-
used tire cutter
-
Application:
-
Recycle waste tyre
-
Machine Type:
-
Fully Automatically Tire Recycling Machine
Whole Production Line Display
Professional Factory tire wire separator machine tire block cutting machine
SEMI-AUTO TIRE CUTTING SYSTEM
This cutting system can cut tire into 3-5cm tire blocks for further process into rubber powder or rubber granule in the next step.
1.Provide the floor space and size required for recycling machine.
2.Provide the complete recycling line layout and its 3D drawing
3.After machine reach the customer's working site, We will assemble the main parts, then mark all the joint parts and send videos to guide the installation and training
Product Description
|
Tyre Circular Cutter
|
|
|
|
Cut Tire Bead From The Whole Tire
|
|
|
|
Motor power
|
4kw+0.75kw
|
|
|
Weight
|
650kg
|
|
|
Capacity
|
40pcs/h
|
|
|
Tire specification
|
650-1200mm(Both radialand nylon tires)
|
|
Operation:
Put tire on the round platform, rotate the wheel to make the four claws catch inside of tire and fix steady, start the cutter machine, the platform rotates, handle the cutting knife control stick, the knife cut into tire, adjust the cutting depth until the tire sidewall cut off.
Features:
Reasonable design, stable performance, high quality, ease operation, long service life, low noise, no pollution,an ideal equipment for tire recycling.
|
Tire slice cutter
|
|
|
|
Cut The Whole Tire Into Strips Except Tire
|
|
|
|
Motor power
|
5.5kw
|
|
|
Weight
|
800kg
|
|
|
Capacity
|
1t/h
|
|
|
Cutting size
|
3x5x8cm
|
|
Operation:
Used in conjunction with the wire tire ring cutting machine, it is used to separate the rubber layer on the tire ring
surface cut by the wire tire ring cutting machine from the thin steel wire/cord wound on it to obtain a complete and relatively
pure bead. Steel wire.
Features:
There is a guiding rule in the middle of the two blades and the rubber strip width is up to the distance between the
guiding rule and blade. The distance means the rubber strip width. The guiding rule can be adjusted by the left and right movement
of the two screw rods.
|
Tire strip cutter
|
|
|
|
Cut Tire Stirp Into 3-8cm Blocks
|
|
|
|
Motor power
|
4kw
|
|
|
Weight
|
850kg
|
|
|
Capacity
|
1t/h
|
|
|
Cutting size
|
5x8cm
|
|
Operation:
The rubber block cutter is used to cut rubber strips into 3--5cm blocks for grinding into rubber powder or rubber granule in the next step.
Features:
Start the power, put tire strips into the feeder, and then strips will be cutted into 3-5cm rubber blocks.
|
Rims separator
|
|
|
|
Separate The Steel Wire From The Tire Bead
|
|
|
|
Motor power
|
11kw
|
|
|
Weight
|
1300kg
|
|
|
Capacity
|
100pcs/h
|
|
Operation:
Start the power, put tire bead into the rollers of the steel wire extruder and then start the button to make the tire
bead enter the rollers. After separating the rubber and steel wire, start the button to make the tire bead get out of the rollers,
and then take out the tire bead from the rollers, so you get a complete steel wire ring.
Features:
This steel wire extruder is mainly used to separate the rubber and steel wire from the tire bead of all kinds of tires
and you can get a complete steel wire ring.
Crush tire blocks(3-5cm) into rubber powder and separate steel wire and nylon fiber from rubber powder to get pure finished
products. rubber crusher: is used to be grind the chunks into small mesh powder through the vibrating screen as you need.
|
Model
|
Drum dia
|
Drum length
|
Front roll linear
|
Roll speed radio
|
Motor
|
|
xkp350
|
300mm
|
500mm
|
26.2m/min
|
1:2.5
|
30kw
|
|
xkp400
|
400mm
|
600mm
|
34.5m/min
|
1:2.5
|
45kw
|
|
xkp450
|
450mm
|
760mm
|
38.0m/min
|
1:2.5
|
55kw
|
|
xkp560
|
560mm
|
800mm
|
38.6m/min
|
1:2.5
|
75kw
|
|
xkp560D
|
560mm
|
1000mm
|
42.5m/min
|
1:2.5
|
132kw
|

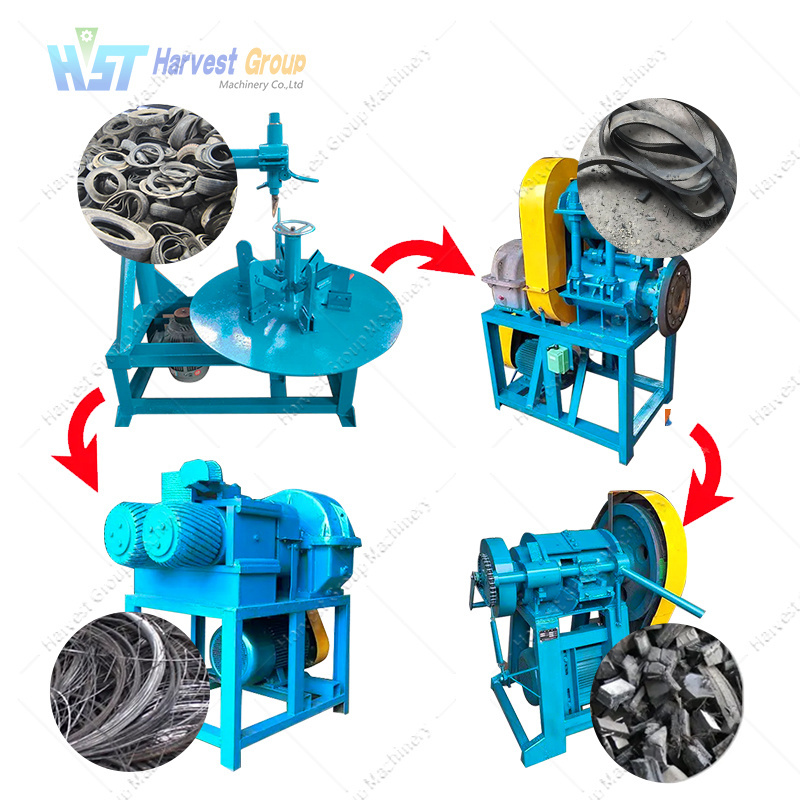

WORKING PROCESS
1. Tire circular cutter cuts tire bead from the whole tire;
2. Tire strip cutter cuts whole tires into strips except tire bead;
3. Tire block cutter cuts tire strips into 3-8 rubber blocks;
4. Steel wire extruder separates steel wire and rubber out from tire bead.
Packing & Deliver
Customer feedback
Why Choose Us
Henan Like Recycling Technology Co., Ltd
.
LiKe Recycling Located in Zhengzhou City, Henan province, was established in 1997, one of the earliest leading professional manufacturers of environmental protective equipment, such as tire recycling machines, e-waste recycling machines, copper wire recycling machines. With advanced production experience, first-class management technology and the professional after-sale service team, our products not only occupy the domestic market, but also export overseas continuously, which has received unanimous praise from our clients. Our factory always aims to put customers' needs at first place, and has consistently tried to upgrade its products for more than 20 years. Our tire recycling production line have already obtained good market for their high quality and reliable technology.
LiKe Recycling Located in Zhengzhou City, Henan province, was established in 1997, one of the earliest leading professional manufacturers of environmental protective equipment, such as tire recycling machines, e-waste recycling machines, copper wire recycling machines. With advanced production experience, first-class management technology and the professional after-sale service team, our products not only occupy the domestic market, but also export overseas continuously, which has received unanimous praise from our clients. Our factory always aims to put customers' needs at first place, and has consistently tried to upgrade its products for more than 20 years. Our tire recycling production line have already obtained good market for their high quality and reliable technology.
FAQ
1. who are we?
We are based in Henan, China, start from 2013,sell to South America(20.00%),Africa(20.00%),Southeast Asia(20.00%),North America(10.00%),Western Europe(10.00%),Eastern Europe(10.00%),Mid East(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Waste Tire Recycling Machine/Rubber Crusher/Tire Shredder/Tire Crusher/E-waste Recycling/Metal Shredder/Cable Wire Recycling, Waste Tire Recycling Machine/Metal Shredder/PCB Recycling/Copper Wire Recycling
4. why should you buy from us not from other suppliers?
1.Our factory established in 1987, With nearly 30 years experience 2. All machines are 2 years warranty 3. Competitive price with high quality 4.We got SGS inspection certificate and CE certificate 5. Factory visited is welcomed
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Arabic,Korean
We are based in Henan, China, start from 2013,sell to South America(20.00%),Africa(20.00%),Southeast Asia(20.00%),North America(10.00%),Western Europe(10.00%),Eastern Europe(10.00%),Mid East(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Waste Tire Recycling Machine/Rubber Crusher/Tire Shredder/Tire Crusher/E-waste Recycling/Metal Shredder/Cable Wire Recycling, Waste Tire Recycling Machine/Metal Shredder/PCB Recycling/Copper Wire Recycling
4. why should you buy from us not from other suppliers?
1.Our factory established in 1987, With nearly 30 years experience 2. All machines are 2 years warranty 3. Competitive price with high quality 4.We got SGS inspection certificate and CE certificate 5. Factory visited is welcomed
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Arabic,Korean
