Quick Details
-
Power:
-
7.5kw, 7.5kw
-
Dimension(L*W*H):
-
700*430*1000mm
-
Weight:
-
300 KG, 300kg
-
Type:
-
Grain Processing Equipment
-
Product name:
-
Commerical Tomato Pepper Chili Sauce Making Processing Machine
-
Capacity:
-
0.3-1.2t/h
-
Dimension:
-
700*430*1000mm
-
Hopper volume:
-
3.5L
-
Fineness:
-
100-200 mesh
-
Yield:
-
0.1t/h
Quick Details
-
Brand Name:
-
PENGHUI
-
Place of Origin:
-
Henan, China
-
Voltage:
-
220V-380V, 220V-380V
-
Power:
-
7.5kw, 7.5kw
-
Dimension(L*W*H):
-
700*430*1000mm
-
Weight:
-
300 KG, 300kg
-
Type:
-
Grain Processing Equipment
-
Product name:
-
Commerical Tomato Pepper Chili Sauce Making Processing Machine
-
Capacity:
-
0.3-1.2t/h
-
Dimension:
-
700*430*1000mm
-
Hopper volume:
-
3.5L
-
Fineness:
-
100-200 mesh
-
Yield:
-
0.1t/h

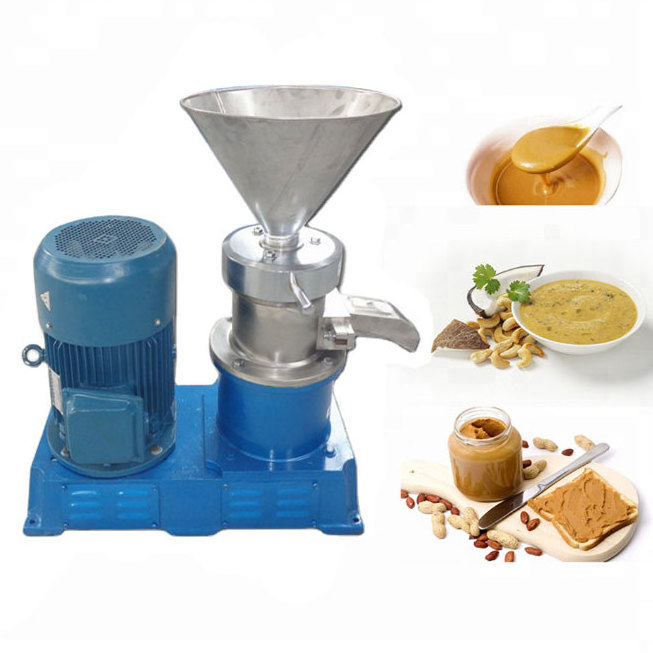

Factory Price Industrial Commerical Tomato Pepper Chili Peanut Sauce Making Processing Machine
Introduction
1. Main material is Stainless steel or Semi-stainless steel.
2. It’s working principle is :Through high speed relative motion of Rotor and Stator,make the material get strong Shearing force,Friction and High mode Vibration.Effictively Crush,Emulsify,Homogeneity material to reach refined product.
3. Can be widly used in Food Industry such as Peanut Butter,Soybean Paste,Jam Paste,Cream:,Chemical Industry,such as:Paint,Lubricant,Elestex;.Daily Life products such as:Cosmetic,Toothpaste etc.
4. Here different capacity is provide from Lab Scale to Mass Production.
Feature
1. Reasonable structure, simple operation, low noise, easy maintenance, cover an area of an area small, corrosion resistance, wide range of using.
2. Adopt stainless steel, corrosion resistance, non-toxic.
3. Using the non-contact liner seal, has the leakage, maintenance free, such as better than adding water retaining plate to protect the motor.
Parameter
|
Model |
P H-60 |
P H-70 |
P H-85 |
P H-130 |
P H-180 |
P H-260 |
P H-300 |
|
Power(kw) |
1.5-1.1 |
4 |
7 .5 |
11-15 |
18.5-22 |
37 -45 |
75 -90 |
|
Capacity(kg/h) |
50-80 |
100-150 |
200-300 |
500 |
800 |
1500 |
4000 |
|
Dimension( c m) |
68*28*62 |
75*28*65 |
105*30*85 |
127*35*102 |
150*35*135 |
150*35*135 |
175*60*150 |
|
Weight(kg) |
70 |
90 |
180 |
300 |
600 |
1200 |
1800 |
Details
Final Products as below
