* 4 bit LED display
* Control point can be field set
* Two control points relay output
* 4~20mA standard signal output optional
* Strict ageing testing, stable and reliable functions
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HIGHJOIN
-
Model Number:
-
HPM520
-
Max. Working Pressure:
-
60MPa
-
Measuring Medium:
-
Various liquid, gas, or steam compatible with 304
-
Measuring Range:
-
-100kPa...0~0.01...60MPa
-
Pressure type:
-
Gauge
-
Overload:
-
2 times of full scale
-
Accuracy:
-
±0.5%FS
-
Medium Temperature:
-
-20~70℃
-
Power supply:
-
24VDC
-
Switch type:
-
relay
-
Display:
-
0.56" digit tube
-
Response time:
-
<30ms
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
220V or 24V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HIGHJOIN
-
Model Number:
-
HPM520
-
Max. Working Pressure:
-
60MPa
-
Measuring Medium:
-
Various liquid, gas, or steam compatible with 304
-
Measuring Range:
-
-100kPa...0~0.01...60MPa
-
Pressure type:
-
Gauge
-
Overload:
-
2 times of full scale
-
Accuracy:
-
±0.5%FS
-
Medium Temperature:
-
-20~70℃
-
Power supply:
-
24VDC
-
Switch type:
-
relay
-
Display:
-
0.56" digit tube
-
Response time:
-
<30ms
PRODUCT OVERVIEW

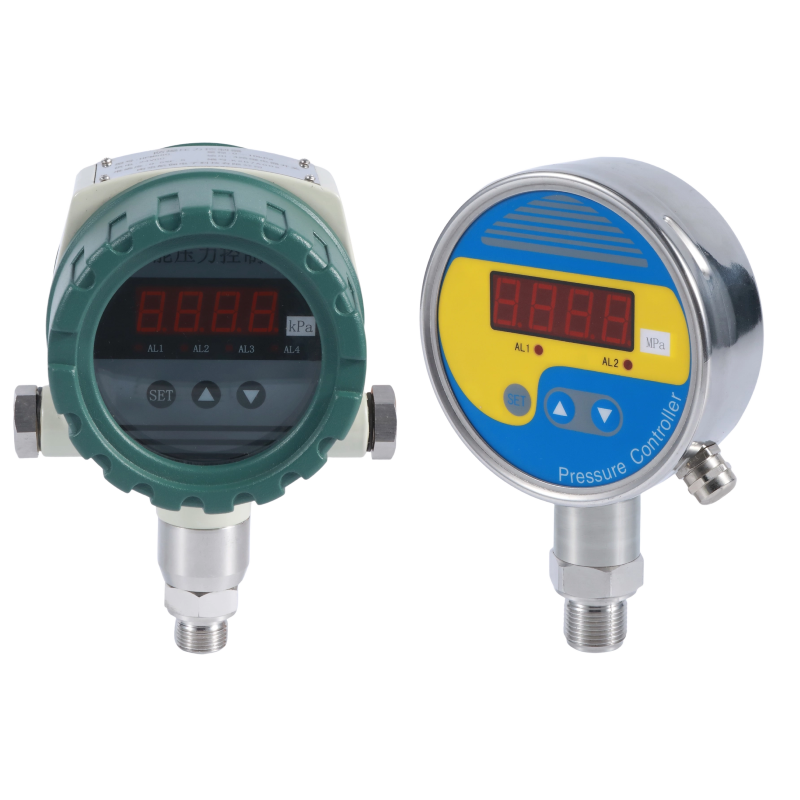

HPM520 Intelligent pressure switch
is an intelligent display pressure measurement and control product, which combines pressure measurement, display, output and control together. This product is
all electronic structure
and adopts silicon piezoresistive pressure sensor with isolation diaphragm at the front end. It uses high-accuracy and exclusive ASIC processing with field display.
FEATURES AT A GLANCE
* Φ100 standard
* 4 bit LED display
* Control point can be field set
* Two control points relay output
* 4~20mA standard signal output optional
* Strict ageing testing, stable and reliable functions
* 4 bit LED display
* Control point can be field set
* Two control points relay output
* 4~20mA standard signal output optional
* Strict ageing testing, stable and reliable functions
PRODUCT SPECIFICATIONS
|
Measuring Range
|
-100kPa…0～0.01…60MPa
|
Accuracy Grade
|
0.5%
|
|
Overload Capacity
|
200%
|
Pressure Type
|
Gauge
|
|
Stability
|
≤0.1% /year
|
Power Voltage
|
24VDC/220VAC
|
|
Display Mode
|
0.56"Nixie tube
|
Display Range
|
-1999～9999
|
|
Respond Time
|
≤30ms
|
Ambient Temperature
|
-20℃～70℃
|
|
Relative Humidity
|
≤80%
|
Interface Material
|
304 Stainless Steel
|
STRUCTURE
Φ100 Dial Plate(front view)
Φ100 Dial Plate(side view)
Aluminum explosion proof housing Type(
front view
)
Aluminum explosion proof housing Type(side view)
ELECTRICAL CONNECTION
|
8-wires output
|
Power Supply
|
RED V+ Yellow GND
|
|
|
|
|
Two way relay
|
Blue ON1 Green COM1
|
Brown ON2 Grey COM2
|
|
|
|
(4～20)mA
|
White mA- Orange mA+
|
|
|
