Quick Details
-
Material::
-
Monocrystalline Silicon
-
Size::
-
1560*800*3mm
-
Net weight::
-
4.5KG
-
Cell efficency::
-
20%~22% high efficency
-
Bendable::
-
30~ 50 degree
-
Backsheet Color:
-
Black White TPT
-
Junction Box:
-
IP67 Rated with 90cm MC4 Connector
-
Certificate::
-
CE/ROHS/PV/TUV
-
OEM customize::
-
3-300W
-
Product name::
-

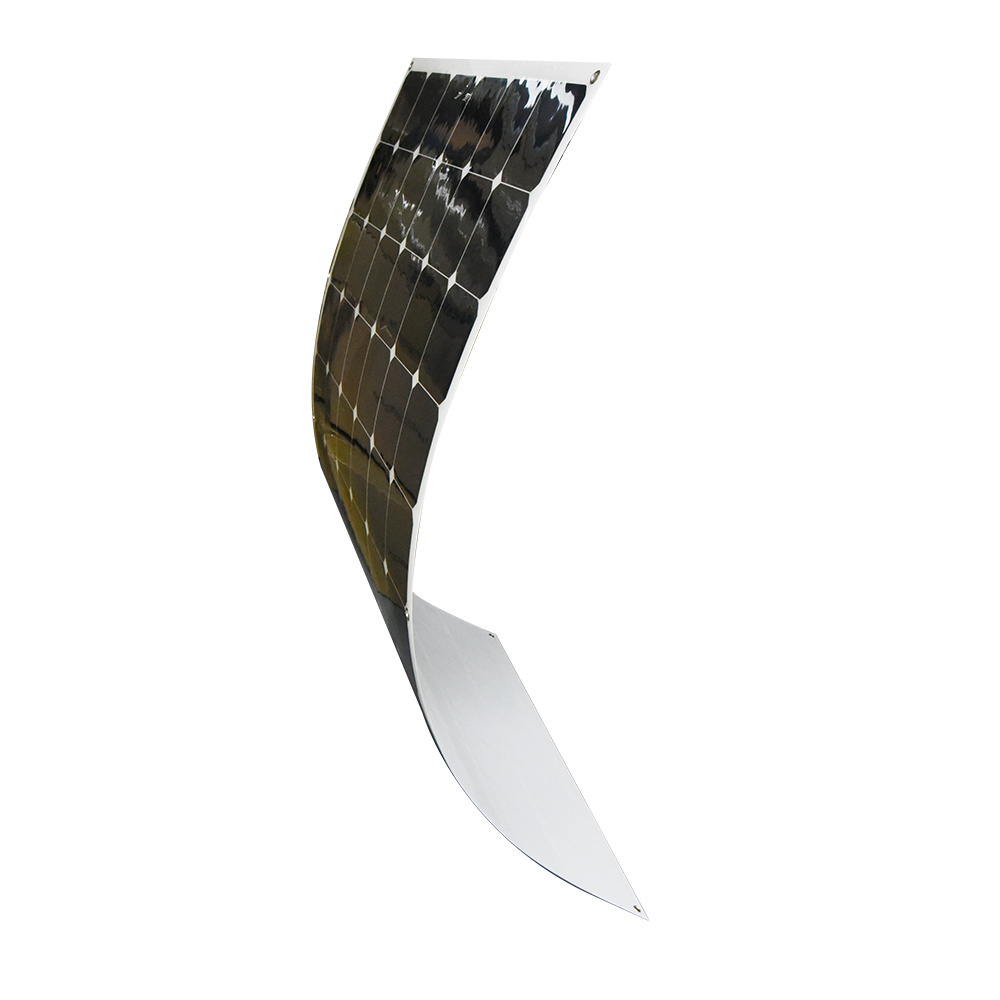

monocrystalline solar 220w 230w 240 watt sunpower flexible solar panel
Quick Details
-
Max. Power:
-
220W
-
Material:
-
SUNPOWER MONO SOLAR CELL
-
Place of Origin:
-
Guangdong, China
-
Material::
-
Monocrystalline Silicon
-
Size::
-
1560*800*3mm
-
Net weight::
-
4.5KG
-
Cell efficency::
-
20%~22% high efficency
-
Bendable::
-
30~ 50 degree
-
Backsheet Color:
-
Black White TPT
-
Junction Box:
-
IP67 Rated with 90cm MC4 Connector
-
Certificate::
-
CE/ROHS/PV/TUV
-
OEM customize::
-
3-300W
-
Product name::
-
monocrystalline solar 220w 230w 240 watt sunpower flexible solar panel
panels monocrystalline solar 220w 230w 240 watt sunpower flexible solar panel
| Model | PM/w | DIMESION(mm) | VMP/V | IMP/A | VOC/v | ISC/A | N/W(kg) |
| SN-H40W | 45 | 545*535*3 | 16 | 2.5 | 19.2 | 2.75 | 0.7 |
| SN-H50W | 50 | 620*565*3 | 18 | 2.8 | 21.6 | 3.1 | 0.9 |
| SN-H90W | 90 | 1050*540*3 | 16 | 5.6 | 19.2 | 6.1 | 1.4 |
| SN-H100 | 100 | 1175*540*3 | 18 | 5.6 | 21.6 | 6 |
1.6 |
| SN-H110 | 110 | 1305*540*3 | 20 | 5 | 24 | 5.5 | 1.8 |
| SN-H120 | 120 | 1435*540*3 | 22 | 5.5 | 26.4 | 6 | 2 |
| SN-H150 | 150 | 1435*660*3 | 27.5 | 5.5 | 33 | 6 | 2.8 |
| SN-H180 | 180 | 1435*880*3 | 33 | 5.5 | 39.6 | 6 | 3.2 |
*The size is for the junction box in back side, increase 5cm in length if place in front side,
|
Using
> Easy installation
> Use for camping,home and travelling
|
|
Material
High Efficiency PV Cells<
|
|
|
ETFE >Water proo f& Corrosion resistant >Easy cleaning |
1.
B
a
ck contact cells( ef
ficiency above 20% -25%), Module efficiency 30% higher than conventional solar panel.
2. Adopting transparent ETFE material on surface and high quality TPT back plate, Resist salt corrosion, UV, withstands hail, storm and other harsh weather.
3. Different Waterproof Connection box ( insert diode ).
5. Predrilled holes in the corner with Stainless grommets, ease-of-installation.
8. From -20°C ~ +60°C Work temperate
9. Widely applied to RV, Golf car, Electric car, Yacht, boat, marine , Tent or backpack ect.
Specification:
| Maximum power(Pm) | 220W |
| Voltage at max power(Vmp) | 39.8V |
| Current at max power(Imp) | 5.5A |
| Open circuit voltage(Voc) | 48.3A |
| Short circuit current(Isc) | 5.9A |
| Maximum System Voltage | 600V |
| Series Fuse Rating | 10A |
| Max Power tolerance | ±5% |
| Weight | 4.5KG |
| Size | 1560*800*3mm |
| Cell Efficiency | 19.9% |
| Number of Cells in Series | 72 |
| Temperature coefficients: Power | -0.38%/°C |
| Voltage | -60.8mV/°C |
| Current | 2.2mA/°C |
| Cable | 4.0mm² 90cm with MC4 Connector |
| Warranty | 10 Years Output Power Guarantee |
