Quick Details
-
Model Number:
-
E3K100-2M
-
Place of Origin:
-
Zhe Jiang
-
Brand Name:
-
BXUAN
-
Output:
-
Relay(Free to switch NPN,PNP,NO,NC)
-
Detection Distance:
-
2m
-
Insulation Resistance:
-
50MQ
-
Protection level:
-
ip67
-
Shell material:
-
ABS
-
Detect objects:
-
transparent/opaque object
-
Detection Range:
-
The sensing distance is adjustable
Quick Details
-
Usage:
-
Detecting objects
-
Mounting Type:
-
Flush
-
Description:
-

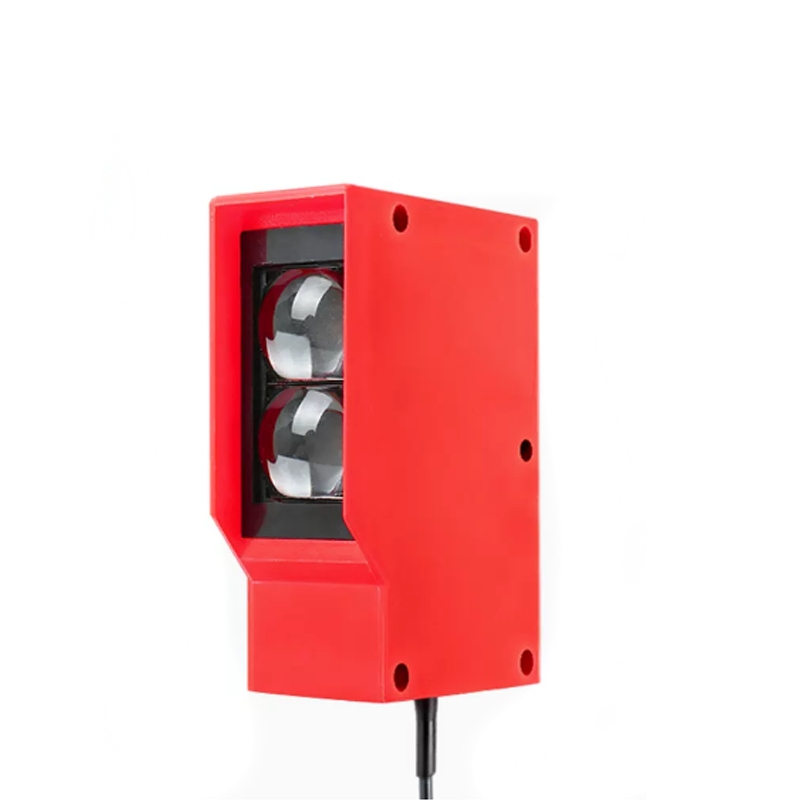

photoelectric sensor switch
-
Model Number:
-
E3K100-2M
-
Place of Origin:
-
Zhe Jiang
-
Brand Name:
-
BXUAN
-
Output:
-
Relay(Free to switch NPN,PNP,NO,NC)
-
Detection Distance:
-
2m
-
Insulation Resistance:
-
50MQ
-
Protection level:
-
ip67
-
Shell material:
-
ABS
-
Detect objects:
-
transparent/opaque object
-
Detection Range:
-
The sensing distance is adjustable
Related products
Product Description
|
Operating Voltage
|
|
20 ~260v DC/AC, 12VDC Customzatlon , 50/6OHz
|
|
|
|
|
|
|
|
|||||||||
|
|
current Consumption
|
|
2VA max.
|
|
|
|
|
|
|
|||||||||
|
|
|
Output Method
|
|
Relay
|
|
|
|
|
|
|||||||||
|
|
|
|
Contact Current
|
|
5A/250 VAC
|
|
|
|
|
|||||||||
|
|
|
|
|
Response Time
|
|
15ms
|
|
|
|
|||||||||
|
|
|
|
|
|
lllumination
|
|
Lamplight<10,000 Lux. ; Sunlight< 30,000 LUx.
|
|
|
|||||||||
|
|
|
|
|
|
|
Connection Method
|
|
5 Cores/ 6.0x2m
|
|
|||||||||
|
|
|
|
|
|
|
|
Noise Resistance
|
|
1500Vp - p/1u ps
|
|||||||||
|
Surge Resistance
|
|
2 KV/1u s
|
|
|
|
|
|
|
|
|||||||||
|
|
Vibration Resistance
|
|
10~55Hzl 1.5mm , 2 Hour In X.Y.Z.Direction
|
|
|
|
|
|
|
|||||||||
|
|
|
Housing Material
|
|
Case : Intensive ABS ; Lens : PC
|
|
|
|
|
|
|||||||||
|
|
|
|
Operating Temp./Hum.
|
|
‘-20 ~ +60° ;35%~85%RH
|
|
|
|
|
|||||||||
