Quick Details
-
Engine Brand:
-
CHANGCHAI/CHANGFA
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HUAYAO
-
Dimension(L*W*H):
-
1130*910*1500mm
-
Drum diameter:
-
600mm, 425mm
-
Exciting Force:
-
70HZ
-
Marketing Type:
-
Hot Product 2022
-
Turning Radius:
-
Pivot Steering
-
Engine Power:
-
5/5.5HP
-
Driving Form:
-
Hydraulic Drive
-
Volume of hydraulic oil tank:
-
10L
-
Certification:
-
CE
-
Product name:
-
Single Drum Vibratory Road Roller
-
Vibration Frequency:
-
70Hz
-
Volume of water tank:
-
10L
-
NOMINAL AMPLITUDE:
-
0.5mm
Quick Details
-
Type:
-
Vibratory Roller
-
Power:
-
4KW
-
Weight:
-
330kg
-
Engine Brand:
-
CHANGCHAI/CHANGFA
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HUAYAO
-
Dimension(L*W*H):
-
1130*910*1500mm
-
Drum diameter:
-
600mm, 425mm
-
Exciting Force:
-
70HZ
-
Marketing Type:
-
Hot Product 2022
-
Turning Radius:
-
Pivot Steering
-
Engine Power:
-
5/5.5HP
-
Driving Form:
-
Hydraulic Drive
-
Volume of hydraulic oil tank:
-
10L
-
Certification:
-
CE
-
Product name:
-
Single Drum Vibratory Road Roller
-
Vibration Frequency:
-
70Hz
-
Volume of water tank:
-
10L
-
NOMINAL AMPLITUDE:
-
0.5mm
Product Description
Hot Sale HY-450 Road Constructions Roller Price Road Roller Machine Double Drum Mini Road Roller Price
Mini Asphalt Hydraulic Road Roller

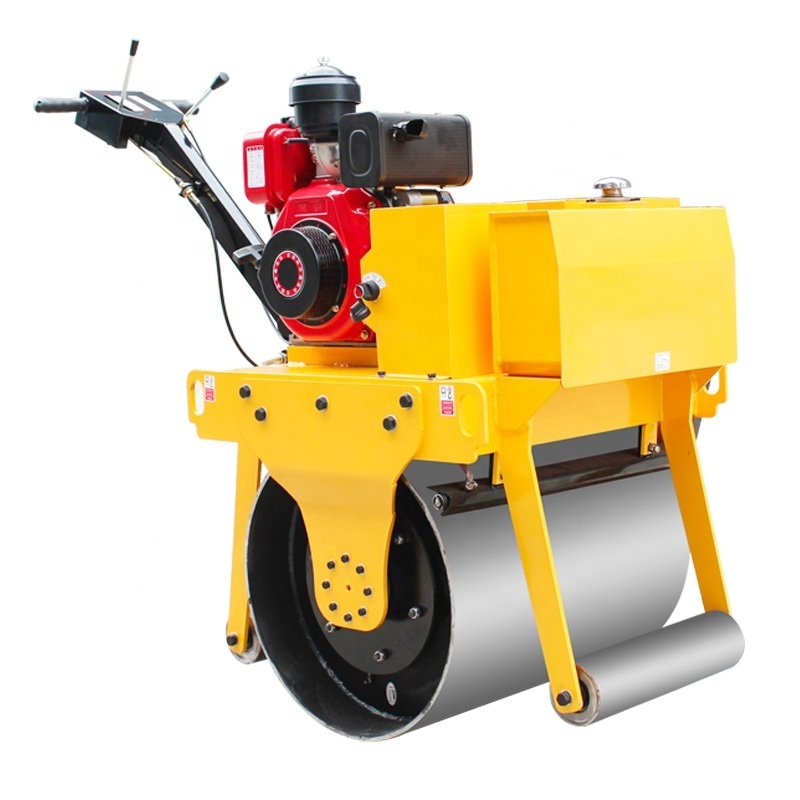

HY-450 330 kg hand-held single drum vibratory roller
. Widely used in compacting asphalt surface,gravel,sand and other engineering foundation, rolling lawn, playground and so on;
HY-450 hand-held vibratory roller is mainly made up of engine part, hydraulic device part, frame part, vibration part.
High-pressure piston pump and motor in the hydraulic vibrating system allows it strong resistance to pollution.
The HY-450 hand road roller has 20KN centrifugal force , it is very strong compacting and good durability.
Domestic brands Changchai, Changfa, Honda engine. diesel or gasoline engine , superior performance, powerful driving force.
Our roller rollers have CE and EPA certification.
High-pressure piston pump and motor in the hydraulic vibrating system allows it strong resistance to pollution.
The HY-450 hand road roller has 20KN centrifugal force , it is very strong compacting and good durability.
Domestic brands Changchai, Changfa, Honda engine. diesel or gasoline engine , superior performance, powerful driving force.
Our roller rollers have CE and EPA certification.
Hot Sale HY-450 Road Constructions Roller Price Road Roller Machine Double Drum Mini Road Roller Price
Specification
|
HYDRAULIC SINGLE DRUM ROAD ROLLER SPECIFICATION
|
|
|
||
|
HUAYAO Brand
|
Model
|
HY-450C/HY-450CF/HY-450Q
|
||
|
Weight
|
Operating Weight
|
330KG
|
||
|
Walking System
|
Walking Speed
|
0-4km/h
|
||
|
|
Turning Radius
|
Pivot Steering
|
||
|
|
Gradeability
|
30%
|
||
|
Compaction System
|
Static line load (front / rear)
|
45N/cm
|
||
|
|
Nominal Amplitude
|
0.5mm
|
||
|
|
Vibration Frequency
|
70Hz
|
||
|
|
Exciting Force
|
20KN
|
||
|
Engine
|
Engine Brand
|
CHANGCHAI | CHANGFA 173F | HONDA GX160
|
||
|
|
Engine Type
|
Diesel/Gasoline, Air Cooling Four Stroke
|
||
|
|
Engine Power
|
5/5.5HP
|
||
|
|
Fuel Tank Capacity
|
2.5L
|
||
|
|
Fuel Consumption Rate
|
≤310g/kw.h
|
||
|
Dimensions
|
Width of steel wheel
|
600mm
|
||
|
|
Diameter of steel wheel
|
425mm
|
||
|
|
Total Length
|
1000mm
|
||
|
|
Total Width
|
780mm
|
||
|
|
Total Height (U-frame down)
|
1350mm
|
||
|
|
Package Size (wooden case export)
|
1130*910*1500mm
|
||
|
Working System
|
Driving Form
|
Hydraulic Drive
|
||
|
|
|
|
||
|
|
Vibration Control Mode
|
Automatic Clutch
|
||
|
|
Engine start-up mode
|
Hand Pull / Electric start
|
||
|
Other
|
Volume of water tank
|
10L
|
||
|
|
Volume of hydraulic oil tank
|
10L
|
||
Product Details
Hot Sale HY-450 Road Constructions Roller Price Road Roller Machine Double Drum Mini Road Roller Price
The 330KG single drum road rollers have wide range of usage.
Huayao road rollers have QC department to inspect machine quality before delivery, we
ensure good quality
, and we have perfect after-sales service.
Our road roller production is high and we have enough stock to supply our customers.
The delivery date is within 7 days.
