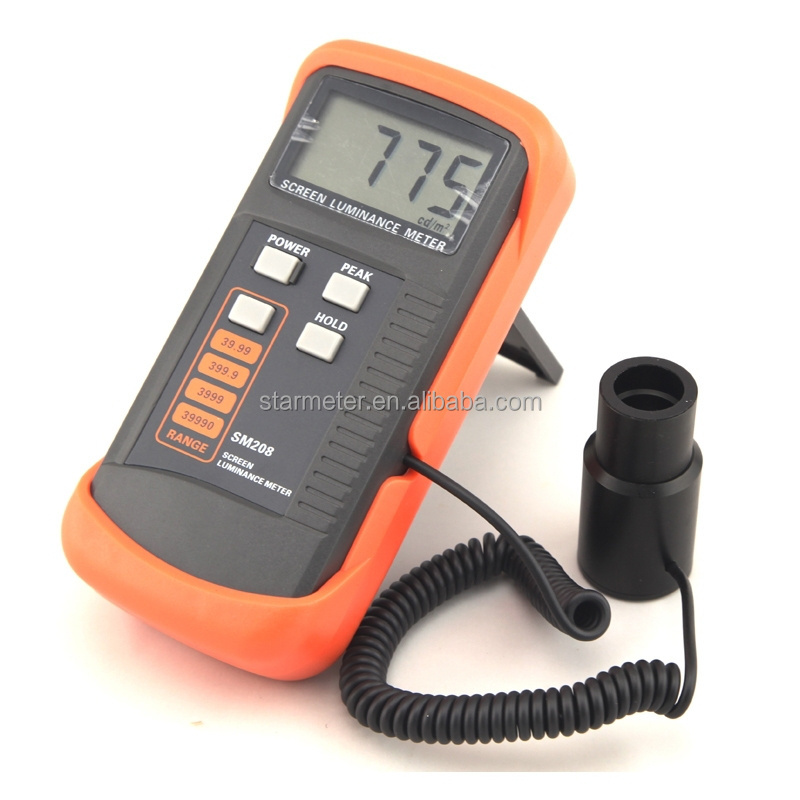

digital fluorescent screen Luminance Meter 0.01-39990cd/m2

digital fluorescent screen Luminance Meter 0.01-39990cd/m2

FOB Reference Price: Get Latest Price

≥1 Sets

US $132

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: SM208

Measuring range:: 0.01-39990cd/m2

Measuring distance:: ≤1m

Object size:: ≥diameter20, increasing with the increase of measuring distance

is_customized:: yes

Precision:: ≤±0.5% of the measured value +1 figure

Indication error:: ≤±0.5% of the measured value +1 figure (relative to NIM standard)

Spectrum response characteristics:: In accordance with the standard of national grade I illuminometer

Linearity error:: ≤+0.2% of the measured value +1 figure

Temperature characteristics:: ≤+0.1% of the measured value +1 figure

Over-input:: Indication of "OL"

Quick Details

Power:: Electronic

Use:: Screen Luminance Meter

Place of Origin:: Guangdong, China

Model Number:: SM208

Measuring range:: 0.01-39990cd/m2

Measuring distance:: ≤1m

Object size:: ≥diameter20, increasing with the increase of measuring distance

is_customized:: yes

Precision:: ≤±0.5% of the measured value +1 figure

Indication error:: ≤±0.5% of the measured value +1 figure (relative to NIM standard)

Spectrum response characteristics:: In accordance with the standard of national grade I illuminometer

Linearity error:: ≤+0.2% of the measured value +1 figure

Temperature characteristics:: ≤+0.1% of the measured value +1 figure

Over-input:: Indication of "OL"

digital fluorescent screen Luminance Meter 0.01-39990cd/m2

Features

Adopting a detector powered by a silicone photocell with high stability, photostability, and shock resistance, strict vision correction and accurate photometric measurement can be realized.
With a wide measuring range, it can measure between 0.01-39990cd/m2 without a dimmer.
It is a digital display with good indication reproducibility, data latching and peak value latching functions;
With very low power consumption, it can operate continuously for 100 hours on a 9V layer-built battery;
Mini light probe, measuring angle <10O;
Compact, portable, easy to use.

Technical specificat

Measuring range: 0.01-39990cd/m2

Measuring distance ≤1m

Object size ≥Φ20, increasing with the increase of measuring distance

Precision:
≤±0.5% of the measured value +1 figure

Indication error:
≤±0.5% of the measured value +1 figure (relative to NIM standard)

Spectrum response characteristics:
In accordance with the standard of national grade I illuminometer

Linearity error:
≤+0.2% of the measured value +1 figure

Temperature characteristics:
≤+0.1% of the measured value +1 figure

Operating environment:
Temperature: (0-40)0C
Relative humidity: ≤85%
Dimensions and weight: 149X71X41mm3
Power supply: 9V layer-built battery (model 6F22)

digital fluorescent screen Luminance Meter 0.01-39990cd/m2
