Quick Details
-
Brand Name:
-
WNK
-
Model Number:
-
WNK-SPS
-
Max. Current:
-
1.0A(Max.)
-
Max. Working Pressure:
-
60MPa
-
Applicable media:
-
Liauid, gas, steam
-
Pressure measurement:
-
Gauge pressure, absolute pressure
-
Accuracy:
-
0.5%FS
-
Display:
-
OLED
-
Pressure range:
-
-100kPa~60MPa
-
Stability:
-
±0.3% FS/year
-
Switch current:
-
1.0A(Max.)
-
Storge temperature:
-
-40~80 degree
-
Switching type:
-
Normally open / closed (settable)
-
Protection rating:
-
IP65
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
30VDC
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
WNK
-
Model Number:
-
WNK-SPS
-
Max. Current:
-
1.0A(Max.)
-
Max. Working Pressure:
-
60MPa
-
Applicable media:
-
Liauid, gas, steam
-
Pressure measurement:
-
Gauge pressure, absolute pressure
-
Accuracy:
-
0.5%FS
-
Display:
-
OLED
-
Pressure range:
-
-100kPa~60MPa
-
Stability:
-
±0.3% FS/year
-
Switch current:
-
1.0A(Max.)
-
Storge temperature:
-
-40~80 degree
-
Switching type:
-
Normally open / closed (settable)
-
Protection rating:
-
IP65
Adjust

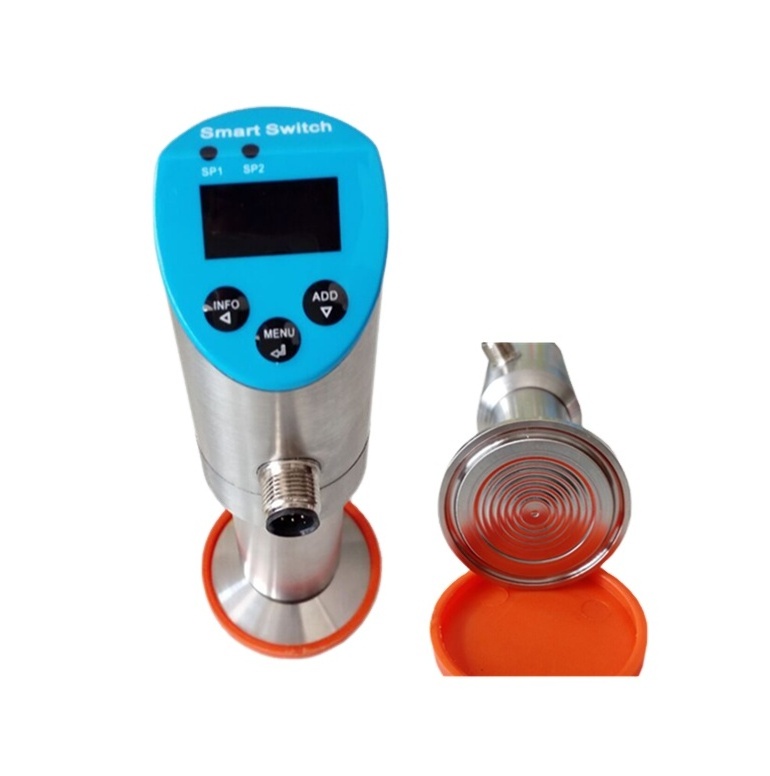

The pressure switch SPS is designed for pressure monitoring and measure-ment in liquid and gaseous media. The SPS is suited for general industrial applications such as machine and plant engineering, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one and the same device. In its standard configuration it has two switching outputs (PNP or NPN). In addition, there are configurations available with an analog output signal (0...20mA| 420 mA or 0...5V| 010 V) as well as with RS485 Link.
Product Features - SPS Intelligent Electronic Pressure Switch with OLED Display
1. Smart type, with PNP/NPN switching.
2. Swithing points settable, NO/NC availalbe
3. With OLED display, with 5 digit available.
4. Provide RS485 communication for option.
| SPS Intelligent Electronic Pressure Switch with OLED Display | |
| Applicable media | Liquid, Gas, Steam |
| Pressure measurment | Gauge Pressure, Absolute pressure |
| Pressure range | -100kPa~60MPa |
| Output Signal | 2×PNP + 0V~5VDC/10VDC + MODBUS(RS485) |
| 2×PNP + 0mA/4mA~20mADC + MODBUS(RS485) | |
| Accuracy | 0.5% FS |
| Stability | ±0.3% FS/year |
| Switch current | 1.0A(Max.) |
| Switching type | Normally open / closed (settable) |
| Display | OLED (Optional) |
| Housing material | 304 stainless steel |
| Mechanical connection | M20×1.5; 1/2-18NPT, 1/4NPT, Customize |
| Storge temperature | -40~80ºC |
| Process temperature | -30~80ºC |
| Protection class | IP65 |
