This machine with a HD camera so that you can view the x-ray spot position on your computer screen during the analysis procedures.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Ruisheng
-
Model Number:
-
RS-XRF3900
-
Analysis range:
-
0.01% -99.99%
-
Measuring accuracy:
-
0.01-0.03%
-
Testing form:
-
Solid, powder, liquid
-
Light tube voltage:
-
5KV-50KV
-
High voltage power supply:
-
0-50KV
-
Camera:
-
HD camera
-
Detector:
-
Proportional counter detector
-
Testing time:
-
5-60 seconds
-
Measurement element:
-
Au, Ag, Pt,Pd and Cu
-
Power supply:
-
220V ±5V, 50H/60Hz
Quick Details
-
Warranty:
-
1 YEAR
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ruisheng
-
Model Number:
-
RS-XRF3900
-
Analysis range:
-
0.01% -99.99%
-
Measuring accuracy:
-
0.01-0.03%
-
Testing form:
-
Solid, powder, liquid
-
Light tube voltage:
-
5KV-50KV
-
High voltage power supply:
-
0-50KV
-
Camera:
-
HD camera
-
Detector:
-
Proportional counter detector
-
Testing time:
-
5-60 seconds
-
Measurement element:
-
Au, Ag, Pt,Pd and Cu
-
Power supply:
-
220V ±5V, 50H/60Hz
Product Overview
Currently using XRF analyzer for composition analysis of precious metals and purity judgment has become a method of reliable performance, widely application and high popularity. Moreover XRF analyzers have the support of the national standard. Compared with fire assay method and chemical reagents test method, using XRF analysis of precious metals is a much more quickly, more economic and multi-element detection method.
4. Super long warranty, confidence comes from pure European spectrometer production technology .
5. The instruments have an innovative function that can help customers identify gold-plated samples.
6. The users can see sample test position accurately by camera and cabin lighting system, and it can improve the testing confidence of users.
7. Equipped with a variety of
optical collimator
, breakthrough solved test problems of tiny metal samples (such as spun gold and gold thread samples) .
8. We can download and upload test data from network, and it is easy to view and share test results.
9. Temperature drift rate of all the parts inside instrument is controlled within one over one million, ensuring the strong stability and high precision of instrument. Testing results can show 4 digits after the decimal point, beyond all domestic spectral type precious metals analyzer.
10. Ultrahigh resolution, Super clear camera, Super convenient operation, Super fast detection speed, Perfect human interface.
Technical Parameters
|
Model
|
RS-XRF3900
|
|
|
|
|||
|
Analysis range
|
0.01% -99.99%
|
|
|
|
|||
|
Measuring accuracy
|
0.01%-0.03%(Average)
|
|
|
|
|||
|
Testing form
|
Solid, powder, liquid
|
|
|
|
|||
|
Light tube voltage
|
5KV-50KV
|
|
|
|
|||
|
High voltage power supply
|
0-50KV
|
|
|
|
|||
|
Camera
|
HD camera
|
|
|
|
|||
|
Detector
|
Proportional counter detector
|
|
|
|
|||
|
Multichannel analyzer
|
Multichannel simulation
|
|
|
|
|||
|
Sample chamber size
|
310*280*60mm
|
|
|
|
|||
|
Testing time
|
5-60 seconds
|
|
|
|
|||
|
Measurement element
|
Au, Ag, Pt,Pd, Cu
|
|
|
|
|||
|
Standard Accessory
|
Jewelry holder*1, power cable*1, calibration samples*1
|
|
|
|
|||
|
Analysis Software
|
Qualitative and quantitative analysis software
|
|
|
|
|||
|
Machine environment requirement
|
5-38℃
|
|
|
|
|||
|
Relative humidity
|
15-90%
|
|
|
|
|||
|
Power supply
|
220V ±5V, 50H/60Hz
|
|
|
|
|||
|
Machine size
|
400*430*350mm
|
|
|
|
|||
|
Weight
|
33Kg
|
|
|
|
|||
Detailed Images
High analysis precision
Accurate analysis of precious metal purity, such as gold, silver, platinum and palladium, at an analytical tolerance range from 0.01% to 0.03%.
Testing and analysis time is very fast, analysis is usually complete within 5 to 60 seconds.

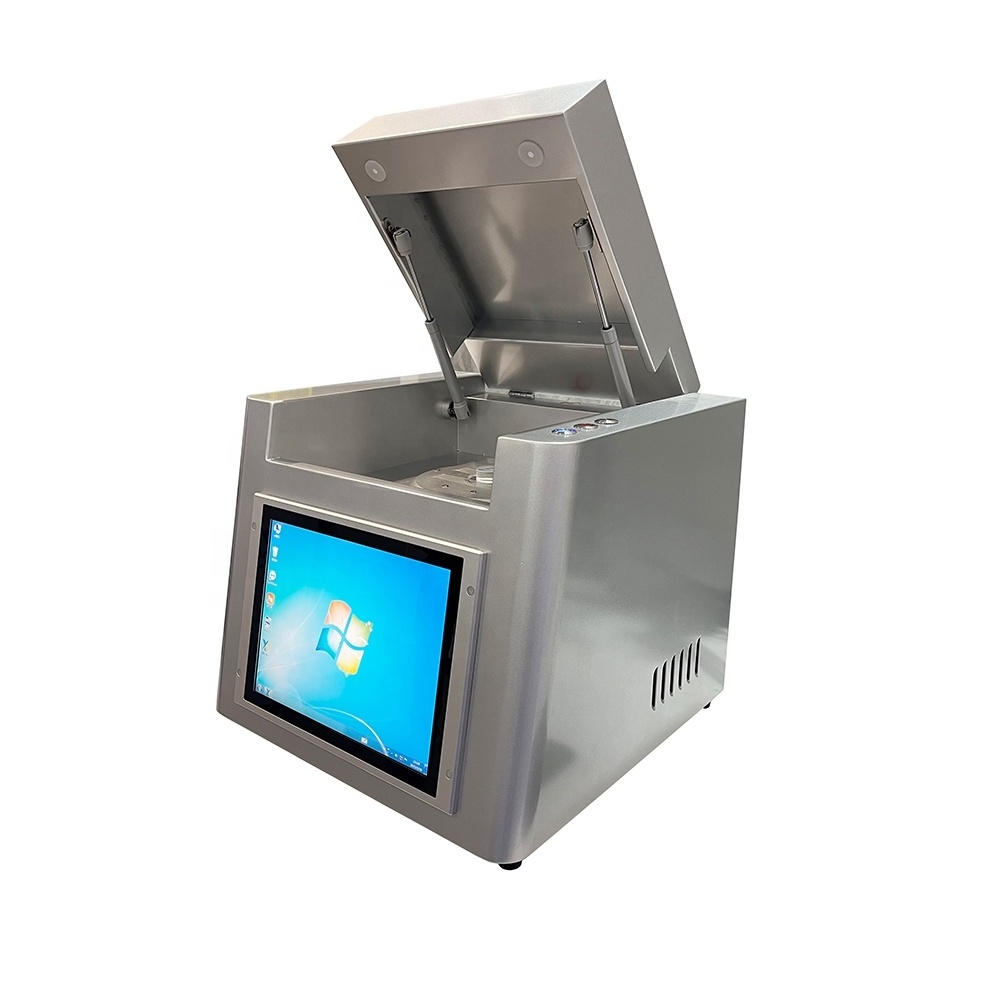

Built-in touch screen computer integrated model.
It with
convenient and smooth operation, small and exquisite shape, easy to carry.
Metal button design
With metal button design and the machine looks more elegant.
Application
1. Ruisheng XRF analyzer for jewellery is used to analyze precious metal purity and authenticity. The best XRF analyzer can perform a quick and accurate analysis of precious metals such as gold, silver, platinum, palladium and copper.
2.
It is suitable for pawnshops, jewelry retail stores, jewelry education and training institutions, K-gold jewelry factories,
silver jewelry factories and small old gold recycling shops.
silver jewelry factories and small old gold recycling shops.
Packaging and Transportation
Machine packing size: 590*540*410mm
Gross weight: 48Kg
Inside use foam to do protection to make sure the machine not damage during transportation.
Outside use wooden package to pack. Small in size and light in weight,it can help to save some shipping cost.
We can ship the machine to you via air transportation, sea transportation, express, etc.
Door to door service can be provided by us.
