automatic roll embossing machine toilet paper embossing roller
automatic roll embossing machine toilet paper embossing roller
automatic roll embossing machine toilet paper embossing roller
automatic roll embossing machine toilet paper embossing roller
automatic roll embossing machine toilet paper embossing roller
automatic roll embossing machine toilet paper embossing roller
automatic roll embossing machine toilet paper embossing roller
automatic roll embossing machine toilet paper embossing roller

automatic roll embossing machine toilet paper embossing roller

FOB Reference Price: Get Latest Price
≥1 Sets
US $800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Raw material:
Toilet Paper Parent Reel
Finished Products:
Packed Small Toilet Paper Rolls
Embossing unit:
Steel to Rubber Roller
Function:
Rewinding, Embossing, Perforating
Operation:
1-2 people
Machine Color:
Decided by Customers
Control system:
Frequency Converter Control
Drive way:
AC Frequency Converter

Quick Details

Place of Origin:
Henan, China
Brand Name:
Xingtu Machinery
Name:
automatic roll embossing machine toilet paper embossing roller
Raw material:
Toilet Paper Parent Reel
Finished Products:
Packed Small Toilet Paper Rolls
Embossing unit:
Steel to Rubber Roller
Function:
Rewinding, Embossing, Perforating
Operation:
1-2 people
Machine Color:
Decided by Customers
Control system:
Frequency Converter Control
Drive way:
AC Frequency Converter
automatic roll embossing machine toilet paper embossing roller
Product Description
Brief Introduction:
This toilet paper rewinding machine can rewind jumbo toilet paper roll into various small diameters without changing its width. The diameter and tightness of finished toilet rolls can be easily adjusted by change the settings on control panel, and output paper rolls are ready for cutter.
This toilet paper rewinder adopts AC frequency conversion stepless speed regulation , which can running stably while customers change its speed.
This machine has PLC system and a Human Machine Interface control panel so that one person can operate it very easily. It is an ideal machine for small toilet paper product making plant.
Features:
1. Pneumatic loading jumbo toilet paper rolls.
2. Point to point embossing, patterns are clear and beautiful.
3. Perforating function enable people to tear the paper easily.
4. PLC control and HMI operation panel, simple to operate.
5. All the necessary equipment and spare parts will be included, like glue tank and air compressor.
Machine Details
1. Paper Core Feeding Part:
This machine has a core holder, therefore, customers can choose to make toilet rolls with or without cores. We also have the automatic core feeding toilet paper rewinding machine for your choice.
2. Jumbo Roll Stands:
It has 1-3 jumbo roll unwinding stands, which enable customers to adjust paper layers according to their needs.

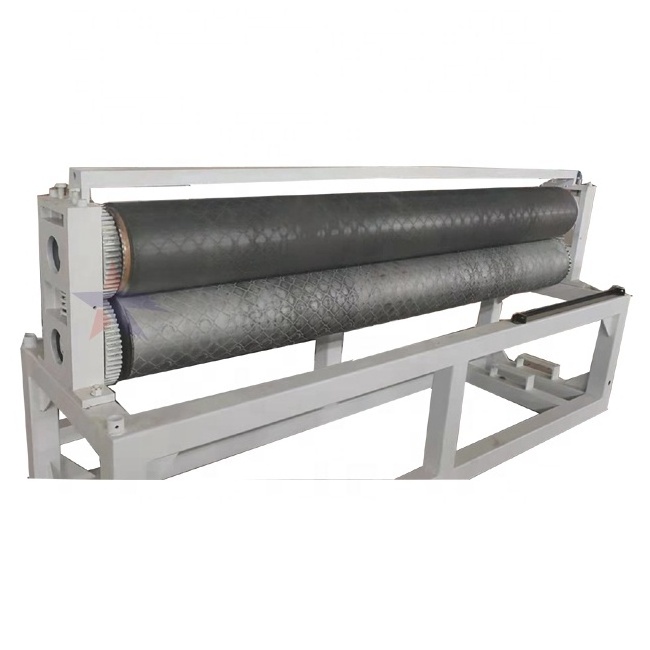

3. Embossing Unit & Perforating Unit:
Normally, the toilet paper rewinding machine is equipped with one set steel to rubber embossing rollers. We can also make double embossing rewinding machine or steel to steel embossing rollers according to customers’ requirement.
We will provide several patterns for you to choose. You can also tell us your design.
Toilet Paper Roll Production Process:
Toilet Paper Rewinding Machine----Log Saw Cutter-----Packing And Sealing Machine
Toilet paper roll logsaw cutting machine:
Log-saw Paper cutting machine can cut tissue roll(which is rewinded into desired diameter) into different length. Which is an important paper process machine
Toilet paper rolls packing and sealing machine:
Specification
Machine Model
1092
1575
2000
2200
2400
2600
2800
Width of jumbo roll (mm)
1200
1800
2000
2200
2400
2600
3000
Finished Toilet Roll Diameter
80~120mm (Tightness can be adjustable)
Finished Toilet Roll Inner Diameter
32~60 mm
Jumbo roll diameter (mm)
1200 (Other sizes please point out)
Jumbo Roll Inner Diameter
76.2 mm(other sizes please point out)
Perforation distance (mm)
4 blade,90~160mm; 2 blade,180~320mm;
Production speed
160-200 m/minute
Parameter set
Touching-screen HMI Operation System
Controller
PLC program
Mechanical driving
AC frequency converter, stepless speed regulation
Air pneumatic system
3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (prepared by buyer)
Power
4kw-10kw (380V 50Hz)
Chosen items (Should be ordered separately)
Embossment
Single embossment, Double embossment, Edge embossment
Embossment down roller
Rubber roller, steel roller
Jumbo roll stander
1-3 plies
Rewinding unit
Core or coreless
Other special request for machine is welcome
We supply the rewinding machine processing raw paper of 1.2m, 1.75m, 1.95m, 2.15m, 2.35m, 2.55m, 2.75m etc in width. All the models are available! Besides, as a one stop toilet tissue paper machine supplier, we also provide other toilet tissue paper processing machines, like paper rewinding slitting machine, paper cutting machine and packing machine, facial tissue paper making machine, pocket tissue paper making machine, paper tube core making machine etc. If you are interested, please contact us anytime!
Packing & Delivery
1. The toilet paper making machine will be packed with waterproof film and wooden box. The standard export package will ensure secure delivery of the machine.
2. The toilet pape machine can be delivered by sea, by truck or by rail.
3. The normal delivery time is 35 days after we received advanced payment. It also depends on your order quantity.
