Quick Details
-
Type:
-
continuous cement mixer agitator
-
Mixer Rated capacity:
-
400 liter
-
Mixing time:
-
3min
-
Mixer power:
-
7.5 Kw
-
Mixer overall diameter:
-
1500*1100*1500mm
-
Agitator Rated capacity:
-
700liter
-
Agitator Rated Rev.:
-
35rpm
-
Agitator overall diameter:
-
1300*1200*1350mm
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Local Service Location:
-
Malaysia
Quick Details
-
Weight (KG):
-
400
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gaodetec
-
Type:
-
continuous cement mixer agitator
-
Mixer Rated capacity:
-
400 liter
-
Mixing time:
-
3min
-
Mixer power:
-
7.5 Kw
-
Mixer overall diameter:
-
1500*1100*1500mm
-
Agitator Rated capacity:
-
700liter
-
Agitator Rated Rev.:
-
35rpm
-
Agitator overall diameter:
-
1300*1200*1350mm
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Local Service Location:
-
Malaysia
Products Description

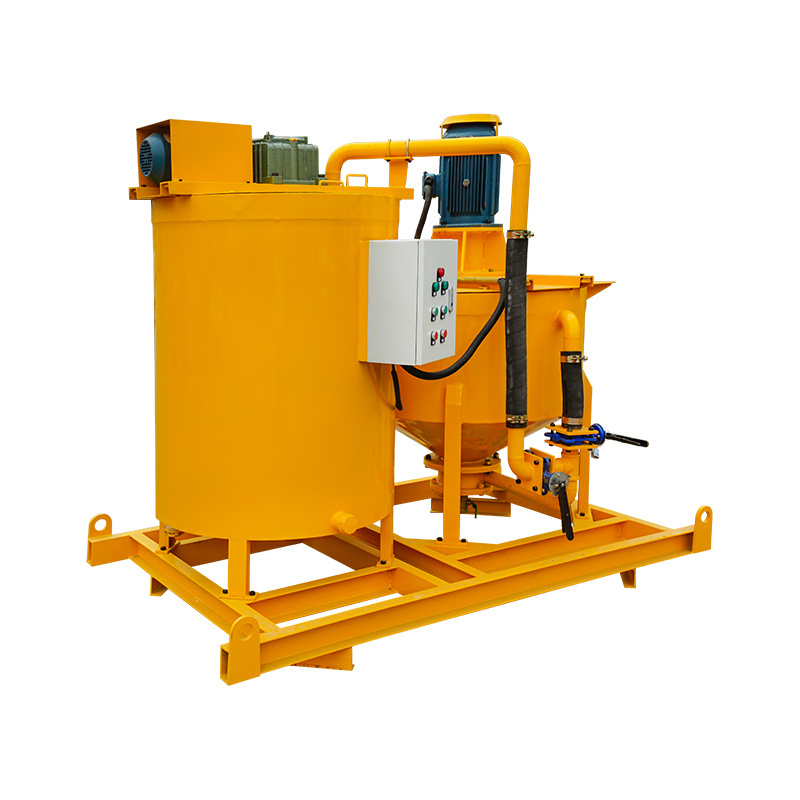

GMA400-700E
grout mixer agitator for construction industry
GMA400-700E cement mixer& agitator is a combination of mixer and agitator, it is specially design for continuous cement mixing and grouting in ground/underground engineering. It can fast mix water, cement and additive, then the mixed slurry can be stored into a 700 liters agitator, thus the mixing work can continuously be done.
The GMA400-700E mixer/agitator station is optional.
Product parameters
|
400L Mixer
|
|
|
|
Rated capacity
|
400 liter
|
|
|
Acceptable W/C ratio
|
≥0.5:1
|
|
|
Mixing time
|
3 min
|
|
|
Mixing speed
|
1500rpm
|
|
|
Power
|
7.5kW
|
|
|
Weight
|
400 kgs
|
|
|
Overall Dimension
|
1500x1100x1500mm
|
|
|
700L Agitator
|
|
|
|
Rated capacity
|
700 liter
|
|
|
Rated Rev.
|
35rpm
|
|
|
Power
|
1.5kW
|
|
|
Weight
|
200 kgs
|
|
|
Overall Dimension
|
1300x1200x1350mm
|
|
Details Images
Packaging&Shipping
Related Product
Now we have developed full series of grout plant and grout station, pump including
piston type, plunger type, double piston type, double plunger type, three cylinders mud pump type and hose pump type.
Mixer volume from
200L to 1200L
, agitator volume from
300L to 3000L
, pump flow from
1 to 300L/min
and pressure from
1 to 100 bar
.
Electric
power and
diesel
power are available for customization.
