Quick Details
-
Brand Name:
-
YUHONDA or OEM/ODM
-
Model Number:
-
YHD-80GK
-
Engine:
-
LIFAN engine 80cc/4-stroke OHV
-
Drive Mode:
-
Chain Drive
-
Wheel Size:
-
13*5.00-6 off-road tires
-
Oil Tank Capacity:
-
2.5L
-
Maximum Speed:
-
25km/h
-
Displacement:
-
80cc
-
Brake Type:
-
Mechanical disc Rear
-
Color:
-
Red,Black,Green,Blue,Yellow,
-
All terrain roads:
-
Beach
-
Keywords:
-
Kids Mini Buggy Ride On Go Kart
Quick Details
-
Type:
-
Pedal Go Karts
-
Engine Capacity:
-
80cc
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUHONDA or OEM/ODM
-
Model Number:
-
YHD-80GK
-
Engine:
-
LIFAN engine 80cc/4-stroke OHV
-
Drive Mode:
-
Chain Drive
-
Wheel Size:
-
13*5.00-6 off-road tires
-
Oil Tank Capacity:
-
2.5L
-
Maximum Speed:
-
25km/h
-
Displacement:
-
80cc
-
Brake Type:
-
Mechanical disc Rear
-
Color:
-
Red,Black,Green,Blue,Yellow,
-
All terrain roads:
-
Beach
-
Keywords:
-
Kids Mini Buggy Ride On Go Kart

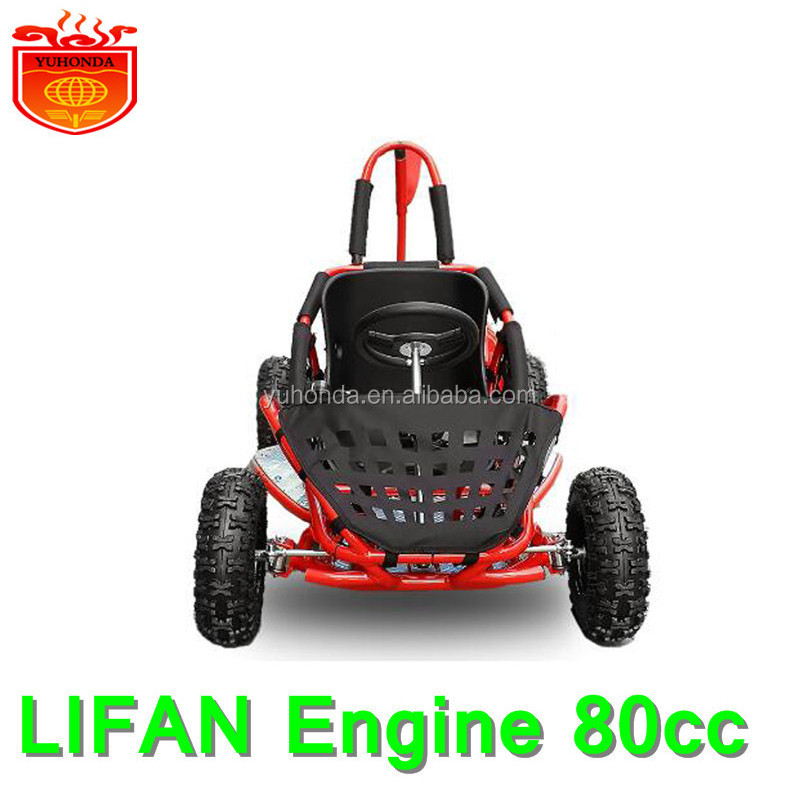

Cool 80cc cheap racing go kart dune buggy gas mini go kart for kids children ride on go kart mini buggy
TABLE OF TECHNICAL PARAMETERS OF YHD- 8 0GK
|
Product |
GO KART |
Model |
YHD- 80 GK |
|
Product Size(L×W×H) |
1440×820×920mm |
Driving Mode |
Chain Drive / Steering
|
|
Wheelbase |
924mm |
Brake System |
Disc Brake ( foot control ) |
|
Mini Ground Clearance |
123mm |
Engine Item |
152F-3 / 4-stroke , Air cooled |
|
Mini Turning Diameter |
≤6m |
Bore×Stroke |
52mm×37.4mm |
|
Max Speed |
25KM/H |
System |
steering whee |
|
Brake Stopping Distance |
≤6M (22km/ h) |
Compression Rate |
8.5 : 1 |
|
Gasoline Consumption |
≤4.5L/100km |
Cylinder Working Volume |
79.5ml |
|
Starter: |
Hand Start : ≤15s / Starter |
Power.; Max Speed.3600r/min |
0.85kw/ 3600r/min |
|
Climbing Degree |
12° |
Max Torque / Rotate Speed |
4.4N·m/ ( 2500±100 ) r/min |
|
Tire (Front/Rear) |
13×5.00-6 ; 13×5.00-6 |
Min Idle Load Rotate Speed |
( 1600±100 ) r/min |
|
Max Loading |
75KGS |
Clutch Type |
dry |
|
Packing size |
140*85*66CM |
Clutch Connecting Rotate Speed |
(2000±200)r/min |
|
G.W/N.W |
70Kgs/ 90Kgs |
Min Oil Consumption |
≤450g/kW·h |
