The CNC saw machine main frame is welded from thick square tubes. And it after heat treatment and vibration aging treatment, the
machine can be used for a long time without deformation, maintain high cutting precision for a long time.
- Product Details
- {{item.text}}
Quick Details
-
Applicable Industries:
-
Stone
-
Production Capacity:
-
100 sets/month
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Alpha
-
Voltage:
-
380V
-
Weight:
-
4000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Stone CNC Cutting Saw
-
Application:
-
Stone Industrial
-
Function:
-
Stone Cutting
-
Control system:
-
CNC
-
Keyword:
-
Bridge Cutting Saw
-
Color:
-
Customer Needing
-
Motor:
-
Servo motor
-
Guide Rail:
-
Hiwin square rail
-
Ball screw:
-
TBI ball screw
Quick Details
-
Type:
-
Bridge Saw
-
Power:
-
Other
-
Cutting thickness (max):
-
50mm
-
Applicable Industries:
-
Stone
-
Production Capacity:
-
100 sets/month
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Alpha
-
Voltage:
-
380V
-
Weight:
-
4000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Stone CNC Cutting Saw
-
Application:
-
Stone Industrial
-
Function:
-
Stone Cutting
-
Control system:
-
CNC
-
Keyword:
-
Bridge Cutting Saw
-
Color:
-
Customer Needing
-
Motor:
-
Servo motor
-
Guide Rail:
-
Hiwin square rail
-
Ball screw:
-
TBI ball screw
Product Description

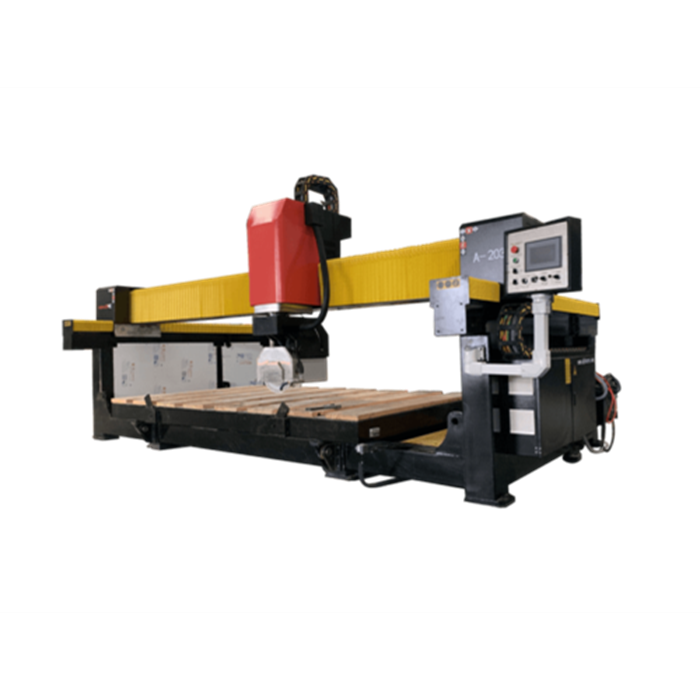

3 Axis 4 Axis 5 Axis 45 degree 90 degree CNC Bridge Saw Blade Stone Marble Cutting Machine Granite Cutting Tools
Introduction
We specialize in manufacturing all kinds of 3-axis, 4-axis, and 5-axis CNC bridge cutting saw for stone cutting. The machine are widely used in countertop making, sink making, and other stone product producing. Comapared with traditional bridge cutting saw, this kind of CNC cutting machine is with higer precision, and you have more axis to choose. 3- axis 4- axis, and 5-axis for you to choose.
If you are intrested in the machine, please contact us , we will recommend you the most suitable machine according to your products.
Technical Parameters
|
Descriptions
|
Granite Cutting Tools Parameters
|
|
Model
|
ASC-2032-S-3
ASC-2032-S-4
ASC-2032-S-5
|
|
Working Area
|
3200*2000mm
|
|
MAX Saw Diameter/Max Cut Thick
|
400mm/70mm
|
|
Common Saw Diameter/Common Cut Thick
|
350mm/50mm
|
|
Cutting angle
|
Depend on the axis
|
|
Working table flip angle
|
85°
|
|
Working table flip method
|
Hydraulic
|
|
Main Power
|
11KW motor
|
|
X,Y,Z Traveling Accuracy
|
±0.025mm
|
|
Table Surface
|
Steel and hard PVC
|
|
Max. Rapid Travel Rate
|
25,000mm/min
|
|
Max. Working Speed
|
20,000mm/min
|
|
Drive Motors
|
Servo Motor
|
|
Gear reducer
|
Japan Shimpo
|
|
Working Voltage
|
380V 3 phase 50/60hz
|
|
Command Language
|
G Code
|
|
Control system
|
PLC/Mach3
|
|
Running Environment
|
Temperature: 0℃~45℃ Relative Humidity: 30%~75%
|
Detailed Images
Steel Machine Frame
PLC Controller System(for 3 axis)
This controller has a easy interface.It supports import and work with DXF files and G codes automatically.and you can use it to do
simple cuts in manual mode
Cutting CNC Saw
The marble cutting machine is a bridge cutting saw machine,it has a CNC saw blade.The common used saw blade diameter is 350mm,and
it can cut 50mm thickness material.And the max saw blade diameter is 400mm,which can cut 70mm thickness material.
Steel And Hard PVC Working Table
The working table of CNC saw machine is made of steel pipe and hard PVC. The steel table is hard enough for bear heavy stone, and
the PVC is easily to replace when it is damaged. And there are stainless steel water tray between the steel pipe and the PVC,
which is for collecting the cooling water for cooling the saw.
Hydraulic Flip Lift Table
In order to make loading and unloading stone more convenient, our granite cutting tools installed a hydraulic flip lift
table.Compared with the pneumatic lifting table, it is more reliable and powerful.
This stone slab cutting machine adopts a closed dust-proof drag chain, and all wires are installed in the drag chain. The
advantage of the closed drag chain is to isolate dust, water, oil, etc., to prevent damage to the wires and prolong the life of
the machine.
advantage of the closed drag chain is to isolate dust, water, oil, etc., to prevent damage to the wires and prolong the life of
the machine.
Sample
Our Certificates
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
2300(L) * 3700(W) * 1900 (D)
|
|
|
Weight
|
1.5T
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
