Quick Details
-
Dimension(L*W*H):
-
3300*1500*1600
-
Weight (KG):
-
800 KG
-
Power (kW):
-
1.5kw
-
Name:
-
Drilling Machine
-
Keyword:
-
Wood Drilling Cnc Router
-
Function:
-
Drilling Milling Machining
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shanshu
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
3300*1500*1600
-
Weight (KG):
-
800 KG
-
Power (kW):
-
1.5kw
-
Name:
-
Drilling Machine
-
Keyword:
-
Wood Drilling Cnc Router
-
Function:
-
Drilling Milling Machining
Feature Of Machine

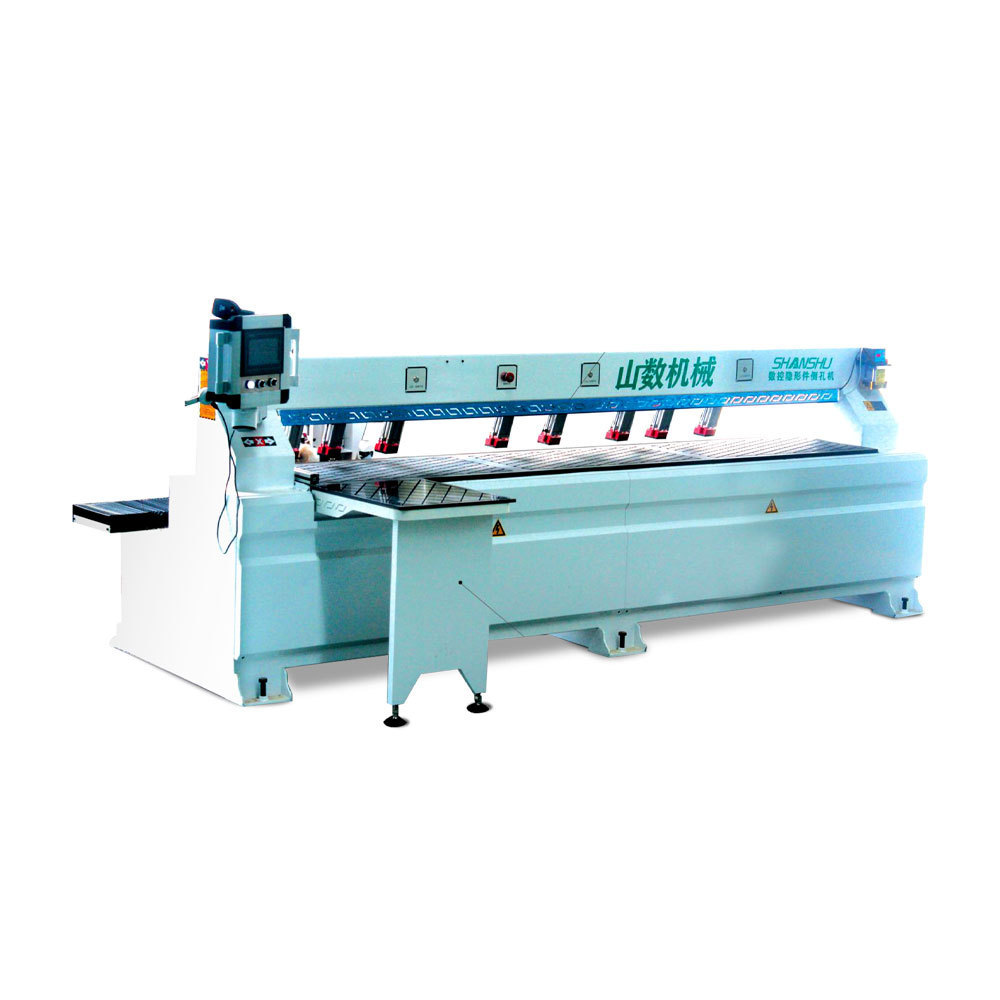

1.Laser Positioning Sidle Holes Drilling Machine is the research and development of a CNC Machine for furniture side holes drilling.
2.The machine is fool-style operation.
3.Higher working speeding, higher working efficient.
4.One set sidle drilling machine can work well with two or three sets CNC Router.It is easily to solve the horizontal drilling problem.
5.Meanwhile, it can achieve short switch plate, dowel holes, single switch holes,blind holes and meeting a wide range of technology needs.
Specification
|
ssModel
|
ss-2800
|
|
working area
|
3300*1500*1600mm
|
|
Voltage
|
220V/380V
|
|
Spindle
|
3.5kw /4.5kw spindle
|
|
Spindle Speed
|
Adjustbale0-24,000rpm
|
|
Drive Motors
|
Servo Motor
|
|
Control System
|
LNC
|
|
Gear rail
|
Taiwan HIWIN
|
|
Z Structure
|
Taiwan CSK Rail Linear Bearings
|
|
Inverter
|
FULING
|
|
Command
|
G code
|
|
Dimension(L*W*H)
|
3300*1500*1600mm
|
|
Frame
|
Heavy Structure Welded Steel, 5-side milled
|
|
Reducer
|
Taiwan planetary reducer
|
|
Software Compatibility
|
Type3/Artcam/ Software (Option: UcancameV9 Software)
|
|
Max. Rapid Working Rate
|
120000mm/min
|
