Quick Details
-
Screw Speed (rpm):
-
100 rpm
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
handern
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
25M*2.5M*2.5M
-
Power (kW):
-
220
-
Weight:
-
20 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Sheet thickness:
-
2-18mm
-
Sheet Width:
-
1800mm(customized)
-
Keywords:
-
PP plastic polypropylene hollow sheet machine
-
Line Speed:
-
250kg/h
-
Raw material:
-
PP granule/Filler/CaCo3/PP recycle/mastetbatch
-
Processing technique:
-
extrusion machine
-
Item:
-
PP plastic polypropylene hollow sheet machine
-
Usage:
-
Package advertisement transportation
-
Marketing Type:
-
Hot Product 2020
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
36:1
-
Screw diameter (mm):
-
120mm
-
Screw Speed (rpm):
-
100 rpm
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
handern
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
25M*2.5M*2.5M
-
Power (kW):
-
220
-
Weight:
-
20 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Sheet thickness:
-
2-18mm
-
Sheet Width:
-
1800mm(customized)
-
Keywords:
-
PP plastic polypropylene hollow sheet machine
-
Line Speed:
-
250kg/h
-
Raw material:
-
PP granule/Filler/CaCo3/PP recycle/mastetbatch
-
Processing technique:
-
extrusion machine
-
Item:
-
PP plastic polypropylene hollow sheet machine
-
Usage:
-
Package advertisement transportation
-
Marketing Type:
-
Hot Product 2020
corrugated sheet forming machine PP Multi-layer corrugated sheet forming machine V-shaped corrugated sheet forming machi n e
|
PP/PE/PC hollow profile sheet extrusion machine data |
|||
| Machine Type | Sheet width(mm) | Sheet thickness(mm) | Max.Extrusion capacity(KG/H) |
| 1400 | 1250 | 2-6 6-12 12-18 | 280/280/350 |
| 1800 | 1650 | 2-6 6-12 12-18 | 320/350/420 |
| 2300 | 2150 | 2-6 6-12 | 350/350 |
| 2400 | 2200 | 2-6 6-12 | 450 |
| 2600 | 2450 | 2-6 6-12 | 480 |
| 2800 | 2600 | 2-6 6-12 | 500 |
|
PC hollow profile sunshine sheet producing machine data |
|||
|
Machine type |
Sheet width(mm) | Sheet thickness(mm) | Max.Extrusion capacity(KG/H) |
| 2300 | 2100 | 4-6 8-12 | 300-400 |
The configuration of machines can be CUSTOMIZED according to your needs!
|

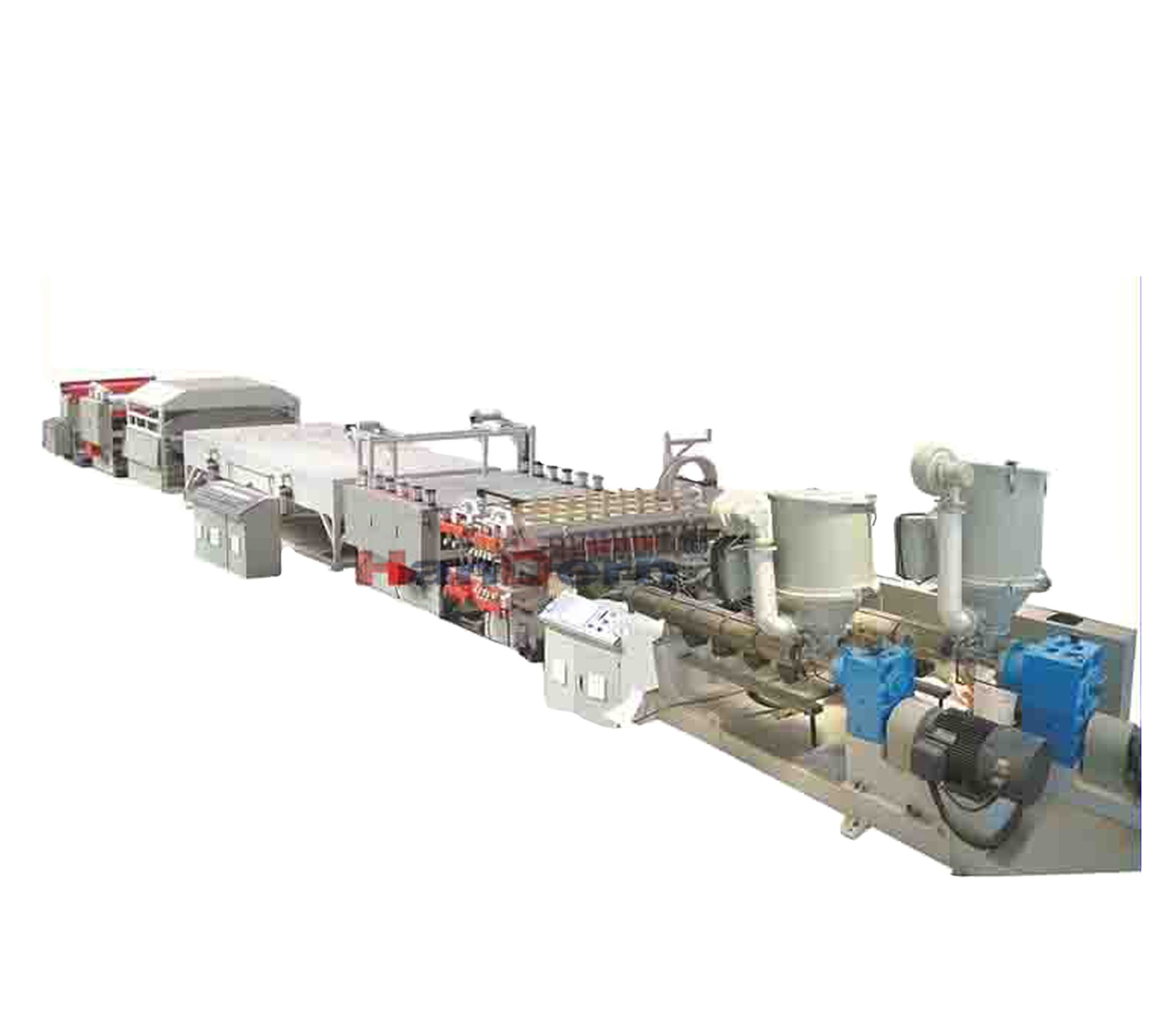

PP plastic polypropylene hollow sheet machine |
Unit |
| Single Screw Extruder | one set |
| Die | one set |
| Hydraulic Pressure Screen Changer | one set |
| Vaccum Calibration Table | one set |
| First Haul-off | one set |
| Oven | one set |
| Cooling Device | one set |
| Second haul-off | one set |
| Cutting device | one set |
| Electrical Control Cabinet | one set |
| Stacker | one set |
| Screw Loader | one set |
|
Hollow profile sheet main Applications: |
|
|
Industrial packaging |
electronic circulating box, auto part circulating box, logistics circulating box etc |
|
delivery packaging |
PP turnover container box, PP corrugated packaging box, PP turnover packaging box,Plastic fire-retarding packaging box for food, electrionic or delivery industry. |
| Advertisement | displayed card,billboard,light box etc. |
| Home | temporary partition,wall backplate,ceiling board etc. |
| Other applications | backplate of washing machine,cars,and water heater,baseplate for delivery etc. |
7 Advantages of hollow profile sheet:
1. Good mechanic property The special structure from plastic hollow board provides good reflexibility, anti-shock, high anti-pressure strength, higher hardness, good bent feature and shock buffer.
2. Light weight and material reduction Under the same effect, it can make plastic hollow board with material consumption reduction, costing lower and light weight.
3. Heat perservation and sound proof Hollow board’s hollow structure make it's heat and sound transfering effect abviously lower than solid board, reaching good heat perservation and soundproof effect.
4. Anti-static, electricity conduction and fire resistant Adopting changed property, mixed, surface spread, etc, makes plastic hollow board with the property of anti-static electricity,electricity conduction and fire resistant.
5. Stable chemical property Plastic hollow board can be water proof, damp proof, anti-erosion, compared with board free of fumigation, it has obvious advantage.
6. Smoothy surface, good looking apperance and complete color variety With special forming manufacturing process and adjusting color-master’s material, it can reach random color, and the surface is smoothy, printing is easy.
7. Good enviroment-protection effect Plastic hollow board has the features of non-toxic, free of polution, easy to handle, so it avoids polution, also can be re-used or being done to other plastic finished product.
Packaging and shipping:
Seaworthy packing material such as:Wooden case and PE film,etc for PP plastic polypropylene hollow sheet machine package.
Our services:
As a manufacturing company, our services are technology leading innovative services, customer-centric technology and service integration of service innovation, which can be a good combination of changes in the industry environment to bring sustainable development advantages to manufacturing companies.
Our company provide comprehensive and detailed phased and meticulous service and complete service system that includes pre-sales consultation, in-sale service and after-sales service.
Wuhan Handern Machinery Co., Ltd. is a high-tech Sino-foreign joint venture integrating scientific research, production and sales. Our company is located in the center of the beautiful city Wuhan, which is adjacent to the airport, railway station and bus station, with convenient transportation. Our company founded in 2005. At present, it has more than 35,000 square meters of workshops and more than 100 employees,and 30 engineers with medium and high titles. Handern have had consistently adhered to the business philosophy of integrity, equality, and customer interests first. The products are managed by GB/T 19001-2000 idt ISO 9001:2000 quality system, and our company provide support and personnel training for customers.
FAQ:
1. Price
Please offer the width and thickness you require, so we can equip extruders and moulds for you and offer the most reasonable price.
2. Validity of Price
Three months.
3. Payment Terms
30% contract value (T/T) to our bank as deposit. 70% contract value (T/T) to our bank before delivery after test the machine in our factory.
4.Quality orientation
We have passed CE and ISO9001:2008 certificate. Our quality orientation is high quality machines. Provide high quality products and help customers make more profits are our continuous pursuit forever.
5.Professional Degree
We believe high quality products are based on high professional degree. If you are interested in our plastic machines, Handern will be your best choice.
