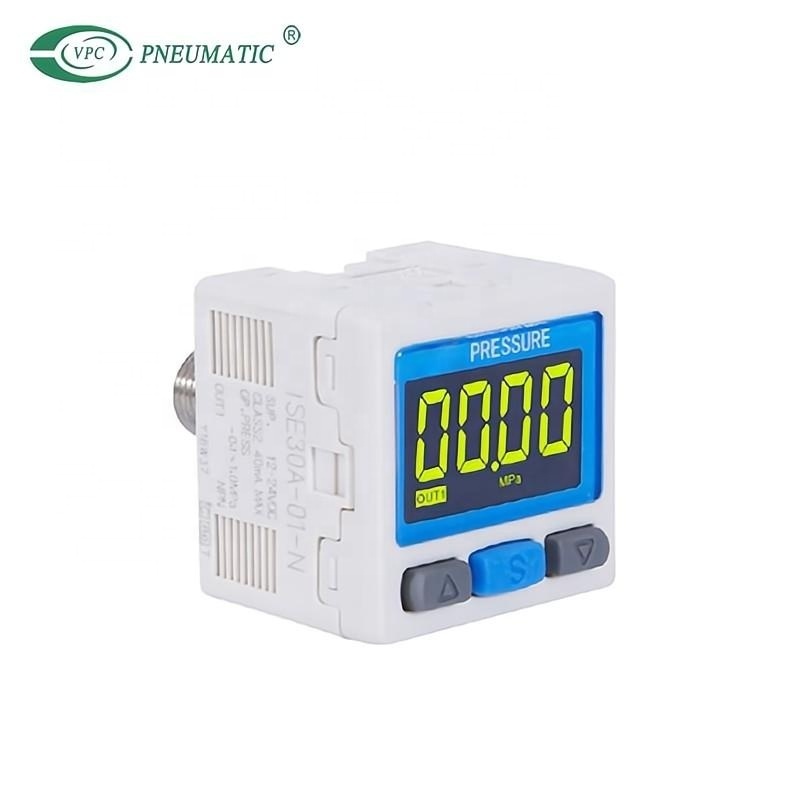

ISE30A Series 2 Colour Display High Precision Digital Pressure Switch
1. ZSE30A(F)/ISE30A series is a 2-color display high-precision digital pressure switch offering compatibility with both compressed air and non-corrosive liquids.
2. Z/ISE30 is for vacuum, positive and compound pressure. Can copy to up to 10 switches
simultaneously, simpler setting and easier operation. The 4-digit display allows easy reading of displayed values.
simultaneously, simpler setting and easier operation. The 4-digit display allows easy reading of displayed values.
3. Z/ISE30 is UL/CSA, CE, and RoHS compliant.
Product Feature
1. 2-Color Display.
2. Can copy to up to 10 switches simultaneously.
3. Replaceable One-touch fittings.
4. 4-digit display allows easy reading of displayed values.
5. Power consumption is reduced by turning off the monitor.
6. Vacuum, compound and/or positive pressure can be displayed in MPa or kPa.
2. Can copy to up to 10 switches simultaneously.
3. Replaceable One-touch fittings.
4. 4-digit display allows easy reading of displayed values.
5. Power consumption is reduced by turning off the monitor.
6. Vacuum, compound and/or positive pressure can be displayed in MPa or kPa.
Product Specifications
|
Model
|
|
|
ZSE30A
(Vacuum pressure)
|
ZSE30AF
(Compound pressure)
|
ISE30A
(Positive pressure)
|
||||
|
Rated pressure range
|
|
|
0.0 to -101.0 kPa
|
-100.0 to 100.0kPa
|
-0.1 to 1.0MPa
|
||||
|
Display/Set pressure range
|
|
|
10.0 to -105.0kPa
|
-105.0 to 105.0kPa
|
-0.105 to 1.05MPa
|
||||
|
Withstand pressure
|
|
|
500kPa
|
500kPa
|
1.5MPa
|
||||
|
Display/Minimum unit setting
|
|
|
0.1kPa
|
0.1kPa
|
0.001MPa
|
||||
|
Working medium
|
|
|
Filtered air, Non-corrosive gas / Non-flammable gas
|
|
|
||||
|
Power supply voltage
|
|
|
DC12 to 24 V±10%, Ripple (p-p) 10% or less(with power supply polarity protection)
|
|
|
||||
|
Current consumption
|
|
|
40mA or less
|
|
|
||||
|
|
Standard
|
|
NPN or PNP open collector 1 output, NPN or PNP open collector 2 output
|
|
|
||||
|
|
Max. load current
|
|
80mA
|
|
|
||||
|
|
Max. applied voltage
|
|
28V (at NPN output)
|
|
|
||||
|
|
Residual voltage
|
|
1V or less (with load current of 80mA)
|
|
|
||||
|
|
Response time
|
|
2.5ms or less (with anti-chattering function: 20, 100, 500, 1000, 2000 ms)
|
|
|
||||
|
|
Short circuit protection
|
|
Yes
|
|
|
||||
|
Repeatability
|
|
|
±0.2% F.S. ±1 digit
|
|
|
||||
|
Hysteresis
|
Hysteresis mode
|
|
Variable (0 or above) *
1)
|
|
|
||||
|
|
Window comparator mode
|
|
|
|
|
||||
|
|
|
Output voltage
(Rated pressure)
|
1 to 5V ±2.5% F.S.
|
|
0.6 to 5V ±2.5% F.S.
|
||||
|
|
|
Linearity
|
±1%F.S.
|
|
|
||||
|
|
|
Output impedance
|
Approx. 1 kΩ
|
|
|
||||
|
|
|
Output voltage
(Rated pressure)
|
4 to 20mA ±2.5% F.S.
|
|
2.4 to 20mA ±2.5%F.S.
|
||||
|
|
|
Linearity
|
±1% F.S.
|
|
|
||||
|
|
|
Load impedance
|
Maximum load impedance: 300Ω(Power supply voltage 12V) : 600Ω(Power supply voltage 24V)
Minimum load impedance: 50Ω |
|
|
||||
|
Display
|
|
|
4-digit, 7-segment, 2-color LCD (Red/Green)
|
|
|
||||
|
Display accuracy
|
|
|
±2% F.S.±1 digit (Ambient temperature of 25 ±3℃)
|
|
|
||||
|
Indicator light
|
|
|
Lights up when switch output is turned ON.OUT1: Green, OUT2: Red
|
|
|
||||
|
Environment
|
Enclosure
|
|
IP40
|
|
|
||||
|
|
Working temperature range
|
|
Operation: 0 ~ 50°C, Storage:-10 ~ 60°C (No condensation or freezing)
|
|
|
||||
|
|
Ambient humidity range
|
|
Operation/Storage: 35 ~ 85% RH (No condensation)
|
|
|
||||
|
|
Withstand voltage
|
|
AC 1000V for 1 minute between terminals and housing
|
|
|
||||
|
|
Insulation resistance
|
|
50 MΩor more (500 VDC measured via megohmmeter) between terminals and housing
|
|
|
||||
|
Temperature characteristic
|
|
|
±2% F.S. (25℃ reference)
|
|
|
||||
|
Lead wire with connector
|
|
|
Oilproof heavy-duty vinyl cable, 3 cores Φ3.5, 2m
4 cores Conductor area: 0.15mm² (AWG26), Insulator O.D.: 1.0mm
|
|
|
||||
|
Standards
|
|
|
CE/RoHS, UL/CSA (E216656)
|
|
|
||||
*2) When analog voltage output is selected, analog current output cannot be used together.
*3) When analog current output is selected, analog voltage output cannot be used together.
Ordering Code ZSE30A(F)/ISE30A Series Digital Pressure Switch
ZSE30A
①
- 01
②
N
③
-
M
④
- □
⑤
- □
⑥
|
①→ Rated pressure range
|
For vacuum pressure
|
ZSE30A
|
0.0 to -101kPa
|
||
|
|
For compound pressure
|
ZSE30AF
|
-100.0 to 100kPa
|
||
|
|
For positive pressure
|
ISE30A
|
-0.1 to 1.0MPa
|
||
|
|
1
|
R1/8 (M5 female threaded)
|
None
|
||
|
|
N01
|
NPT1/8 (M5 female threaded)
|
|
||
|
|
C4H
|
One-touch fitting Φ4 mm, Φ5/32 inch
|
Straight type
|
||
|
|
C6H
|
One-touch fitting Φ6 mm
|
|
||
|
|
N7H
|
One-touch fitting Φ1/4 inch
|
|
||
|
|
C4L
|
One-touch fitting Φ4 mm, Φ5/32 inch
|
Elbow type
|
||
|
|
C6L
|
One-touch fitting Φ6 mm
|
|
||
|
|
N7L
|
One-touch fitting Φ1/4 inch
|
|
||
|
|
N: NPN open collector 1 output
|
|
|
||
|
|
P: PNP open collector 1 output
|
|
|
||
|
|
A: NPN open collector 2 outputs
|
|
|
||
|
|
B: PNP open collector 2 outputs
|
|
|
||
|
|
C*: NPN open collector 1 output+Analog voltage output
|
|
|
||
|
|
D*: NPN open collector 1 output+Analog current output
|
|
|
||
|
|
E*: PNP open collector 1 output+Analog voltage output
|
|
|
||
|
|
F*: PNP open collector 1 output+Analog current output
|
|
|
||
|
|
*Made to order.
|
|
|
||
|
|
Nil: With display unit switching function
|
|
|
||
|
|
M: Fixed SI unit*
|
|
|
||
|
|
P*: With display unit switching function (Initial value psi)
|
|
|
||
|
|
* M ade to order.
|
|
|
||
|
|
* Unit: kPa, MPa.
|
|
|
||
|
|
Nil:Without lead wire
|
|
|
||
|
|
L:Lead wire with connector(Lead wire length 2 m)*
|
|
|
||
|
|
G:Lead wire with connector(Lead wire length 2 m)*With connector cover
|
|
|
||
|
|
* For output types N and P, the number of core of lead wires will be 3, and for other types, it will be 4.
|
|
|
||
|
|
Nil：None
|
|
|
||
|
|
A1:Bracket A
|
|
|
||
|
|
A2:Bracket B
|
|
|
||
|
|
A3:Bracket C
|
|
|
||
|
|
B:Panel mount adapter
|
|
|
||
|
|
D:Panel mount adapter+ Front protection cover
|
|
|
||
