- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
TONGDA
-
Year:
-
2020
-
Voltage:
-
Customized to customer needs
-
Dimension(L*W*H):
-
3m*1.55m*2.35m
-
Hollow part volume:
-
1-2L
-
Screw L/D Ratio:
-
25
-
Screw diameter (mm):
-
50 mm
-
Screw Heating Power(kW):
-
6.8 kW
-
Extruder Motor Power(kW):
-
11 kW
-
Mold Platen Size(Width)(mm):
-
310 mm
-
Mold Platen Size(Height)(mm):
-
320 mm
-
Air Pressure(MPa):
-
0.6 MPa
-
Air Comsumption(m³/min):
-
0.4 m³/min
-
Die Head Heating Power(kW):
-
7 kW
-
Accumulator Capacity(L):
-
0 L
-
Power (kW):
-
30.5
-
Weight (T):
-
3.3
-
Rotary Cylinder Brand:
-
FESTO
-
Station:
-
Single Station
-
Suitable bottle:
-
1-2L
-
Key words:
-
Automatic Extrusion Blow Moulding Machine
-
Packing:
-
Wooden
-
Use:
-
Hollow Moulding
-
Parison Control:
-
MOOG
-
Hydraulic valve:
-
Yuken
-
Color:
-
Blue
-
Mold moving stroke:
-
370
Quick Details
-
Clamping Force (kN):
-
44
-
Output (kg/h):
-
50 kg/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TONGDA
-
Year:
-
2020
-
Voltage:
-
Customized to customer needs
-
Dimension(L*W*H):
-
3m*1.55m*2.35m
-
Hollow part volume:
-
1-2L
-
Screw L/D Ratio:
-
25
-
Screw diameter (mm):
-
50 mm
-
Screw Heating Power(kW):
-
6.8 kW
-
Extruder Motor Power(kW):
-
11 kW
-
Mold Platen Size(Width)(mm):
-
310 mm
-
Mold Platen Size(Height)(mm):
-
320 mm
-
Air Pressure(MPa):
-
0.6 MPa
-
Air Comsumption(m³/min):
-
0.4 m³/min
-
Die Head Heating Power(kW):
-
7 kW
-
Accumulator Capacity(L):
-
0 L
-
Power (kW):
-
30.5
-
Weight (T):
-
3.3
-
Rotary Cylinder Brand:
-
FESTO
-
Station:
-
Single Station
-
Suitable bottle:
-
1-2L
-
Key words:
-
Automatic Extrusion Blow Moulding Machine
-
Packing:
-
Wooden
-
Use:
-
Hollow Moulding
-
Parison Control:
-
MOOG
-
Hydraulic valve:
-
Yuken
-
Color:
-
Blue
-
Mold moving stroke:
-
370

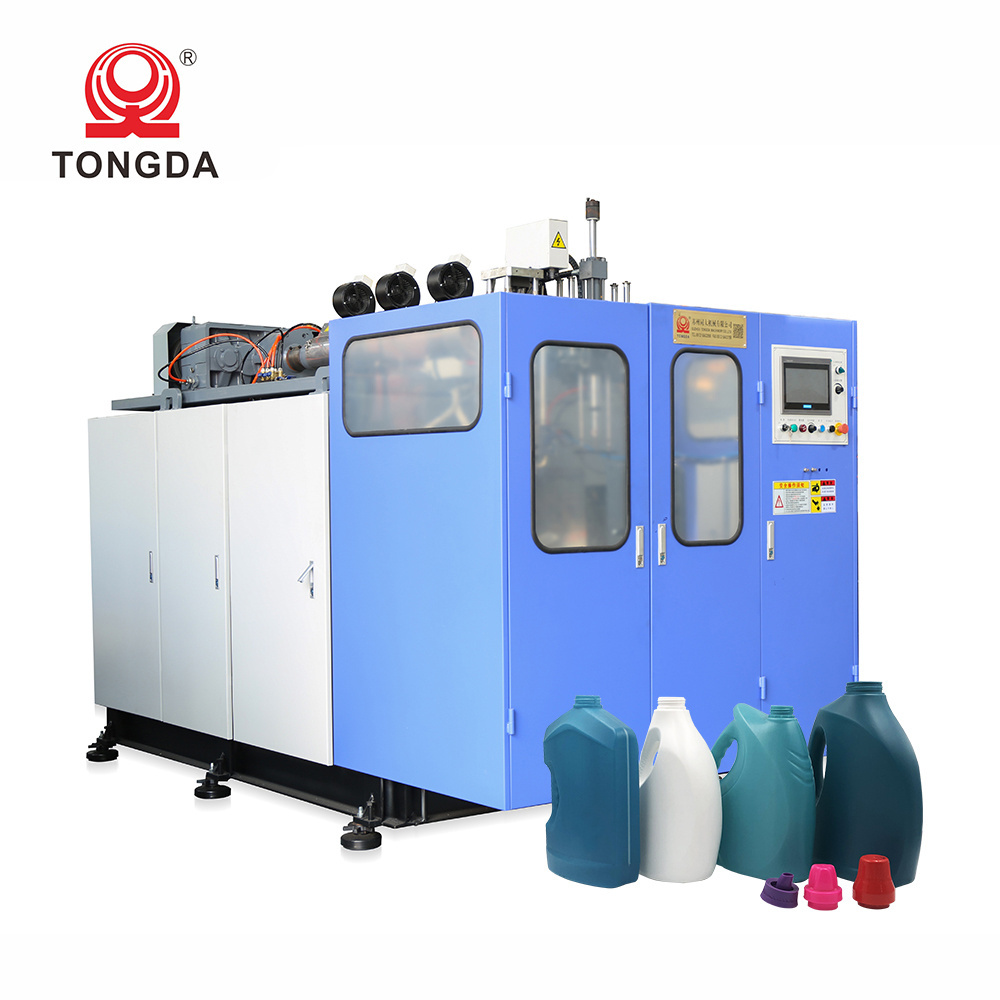

Product Description
HT-2L
This is our basic series machine.It is single station.This machine is suitable for the small bottles.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements, we can provide customized services for you.
|
MODEL
|
Units
|
HT-2L
|
Remarks: we will customize the most suitable machinery according to your requirements
|
|
Max. Product volume
|
L
|
2
|
|
|
Output of HDPE
|
kg/h
|
50
|
|
|
Clamping force
|
kn
|
44
|
|
|
Screw diametre
|
mm
|
50
|
|
|
Screw heating power
|
kw
|
6.8
|
|
|
Blow pressure
|
mpa
|
0.6
|
|
|
Size of machine
|
m
|
3*1.55*2.35
|
|
Product Details
Our Advantages
After-sales service
Arrange engineer to customer's factory
We supply the after-service online 24 hours
