2. Nice quality.
3. Small order is welcome.
4. Online payment.
5. Refund money in case of bad quality.
6. Sample offered but you need to pay it.
7. 1 year free repair for quality warranty.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
BGT
-
Model Number:
-
BGT-RD101
-
Output:
-
RS485(Optional 4-20mA, RS232 )
-
Measuring Range:
-
0.2~7m or 0.2~15m
-
Shell Material:
-
Aluminum Alloy
-
Accuracy:
-
±2mm , ±1mm
-
Radar Antenna:
-
Planar Microstrip Pulse Coherent Radar
-
Radar frequency:
-
60GHz
-
Power supply:
-
DC7~32V (DC5.5-32V Optional)
-
Working Temperature:
-
-40℃-85℃
-
Lightning protection:
-
Lightning protection level 6KV
-
Certification:
-
IECEE
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 year
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
BGT
-
Model Number:
-
BGT-RD101
-
Output:
-
RS485(Optional 4-20mA, RS232 )
-
Measuring Range:
-
0.2~7m or 0.2~15m
-
Shell Material:
-
Aluminum Alloy
-
Accuracy:
-
±2mm , ±1mm
-
Radar Antenna:
-
Planar Microstrip Pulse Coherent Radar
-
Radar frequency:
-
60GHz
-
Power supply:
-
DC7~32V (DC5.5-32V Optional)
-
Working Temperature:
-
-40℃-85℃
-
Lightning protection:
-
Lightning protection level 6KV
-
Certification:
-
IECEE
Please Attention
**One-stop Emergency Solution Supplier**
2. Nice quality.
3. Small order is welcome.
4. Online payment.
5. Refund money in case of bad quality.
6. Sample offered but you need to pay it.
7. 1 year free repair for quality warranty.
Products Description

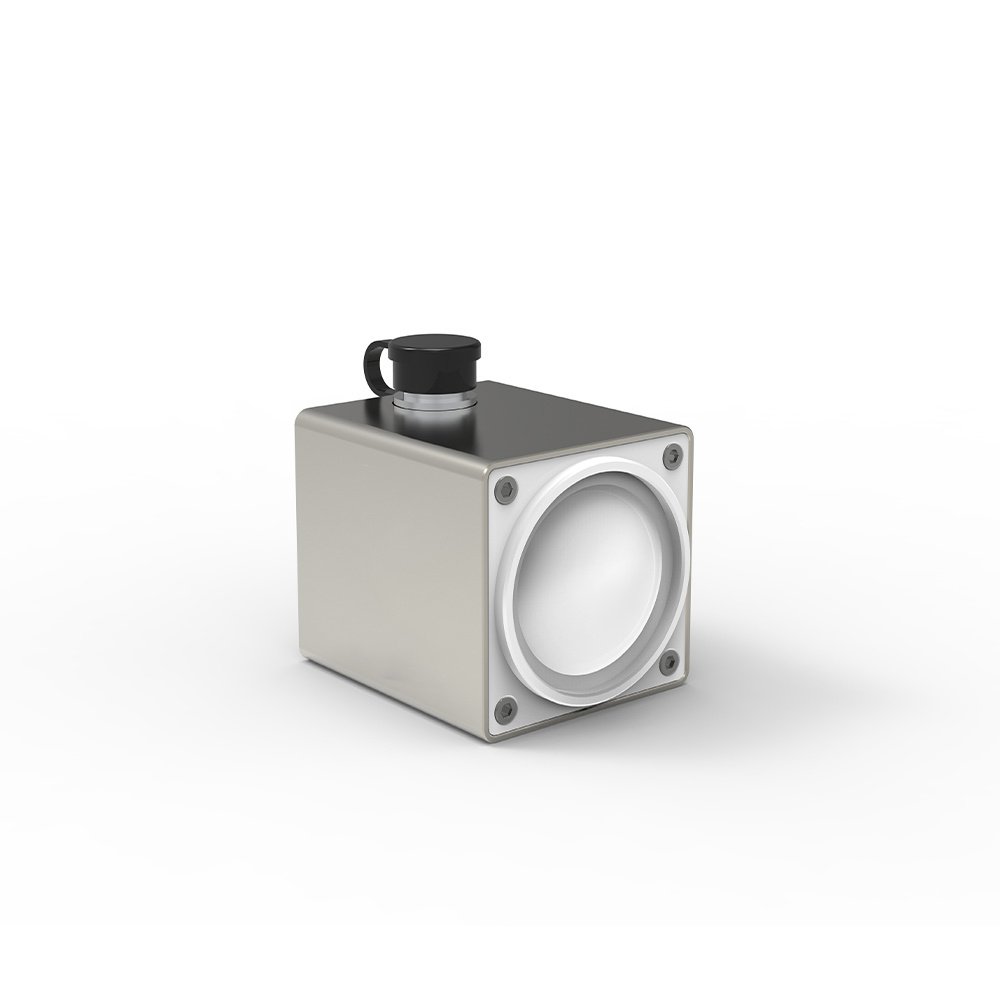

60GHz Non-contact RS485 4-20mA 7m Level Measurement Meter Radar Water Level Sensor for Reservoir Tank Liquid Level Transmitter
BGT-RD300s radar water level gauge is a high-precision, low-power radar level gauge, which can be used for non-contact level measurement of surface water and underground pipe networks; the equipment uses pulse coherent radar (PCR) technology, using 60G mm The radar wave is used as the carrier signal, and the millimeter-level measurement accuracy is realized through the optimized signal recognition algorithm, and the optimized wave elimination filter design makes the
measurement result more accurate and stable. Compared with traditional pulse radar level gauges, it has higher
measurement accuracy, lower power consumption and
ultra-small volume; it is not affected by temperature gradients, air
pressure, water vapor, water pollutants and sediments during measurement, and has a good Stability and environmental adaptability.
Small size, weight less than 300g;
High precision at millimeter level;
Stable measurement, not affected by temperature and air pressure;
Easy installation and debugging, maintenance-free;
Algorithm optimization to eliminate the influence of water waves;
Low power consumption design, convenient power supply;
Features:
1. Millimeter-level high-precision measurement of liquid level, ultra-low blind zone;
2. With its own wave elimination algorithm, the data is stable and not affected by water surface fluctuations and floating
objects;
3. Non-contact, low power consumption, high reliability, and maintenance-free;
4. Anti-reverse connection and lightning protection design of the power supply circuit;
5. Ultra-low power consumption sleep mode, fast wake-up, suitable for NB-IoT Internet of Things applications;
6. The non-contact method is adopted, the sensor does not touch the water body, and is not affected by the water body environment;
7. Multiple interface methods (digital/analog) for easy access to the system;
8. Multiple working modes: periodic, sleep, automatic;
9. The weight is less than 300g, the structure is compact and small; the installation is simple, and the amount of civil works is
small;
10. Miniature antenna design, pulse coherent radar technology;
11. IP68 fully waterproof design.
1. Millimeter-level high-precision measurement of liquid level, ultra-low blind zone;
2. With its own wave elimination algorithm, the data is stable and not affected by water surface fluctuations and floating
objects;
3. Non-contact, low power consumption, high reliability, and maintenance-free;
4. Anti-reverse connection and lightning protection design of the power supply circuit;
5. Ultra-low power consumption sleep mode, fast wake-up, suitable for NB-IoT Internet of Things applications;
6. The non-contact method is adopted, the sensor does not touch the water body, and is not affected by the water body environment;
7. Multiple interface methods (digital/analog) for easy access to the system;
8. Multiple working modes: periodic, sleep, automatic;
9. The weight is less than 300g, the structure is compact and small; the installation is simple, and the amount of civil works is
small;
10. Miniature antenna design, pulse coherent radar technology;
11. IP68 fully waterproof design.
Data Sheet
|
Measuring range
|
0.2~7m (0.2~15m customizable)
|
|
Output signal
|
RS485 (optional : 4~20mA / RS232)
|
|
Measurement Accuracy
|
±2mm 、 ±1mm
|
|
Radar antenna
|
Planar Microstrip Pulse Coherent Radar
|
|
Sleep time
|
0-24h, can be set
|
|
Power Supply
|
7-32VDC (5.5-32VDC optional)
|
|
Working current
|
12V power supply, Working mode ≤ 10mA,
Low power consumption (sleep) mode, ≤ 0.5mA
|
|
Shell Material
|
Aluminum Alloy
|
|
Beam launch angle
|
8°
|
|
Protection level
|
IP68
|
|
storage temperature
|
-40℃-85℃
|
|
Lightning protection
|
Lightning protection level 6KV
|
Application
Irrigation area channel water level monitoring, reservoir water level monitoring, underground pipe network water level
monitoring,urban waterlogging level monitoring, etc.
monitoring,urban waterlogging level monitoring, etc.
