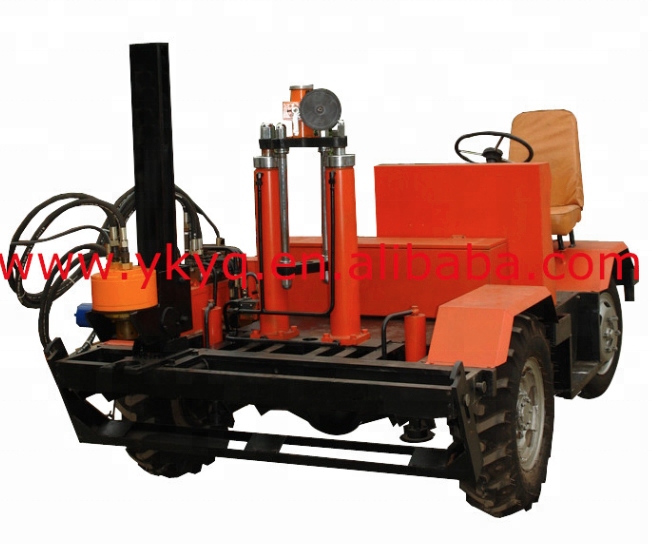

STCTC-2 Dynamic Cone Penetrometer(CPT Vehicle)
Specification:
1.full set include running gear,anchorage syste,penetration system and testing system.
2.transport:four wheel manual drive
3.drive type:rear drive
4.turing radius:no higher than 4m
5.power force:electrical starting diesel engine
6.power:no lower than 22Hp,rotate:2200-2600RPM
7.Anchorage type:automatic rack type anchorage
8.penetration speed:0.8-1.2m/min;rated penetration power:200KN
9.pull out speed:2.5m/min;pull out power:220KN
10.working medium:68#hydraulic oil
11.system oil pressure:14Mpa
12.capacity f oil tank:100L
13.penetration type:fixture blocks type press and pull out
14.running speed:25-40Km/h
15.working temperature:-10-40deg.c
We have another styles:
STCT-1 Portable Lightweight Dynamic Penetrometer
STCT-1A Portable Lightweight Dynamic Penetrometer with Al box
STBG-2 Standard Heavy-duty Penetration Test Apparatus
STCT-2 Dynamic Cone Penetrometer
STCLD-1 Static Penetration Testing Apparatus
- Packing Material: Plywood Case meeting export long transport requirement.
- Packing Method: Horizontal Packing to saving more shipping cost.
- Packing details: For our products, we will give your professional guidance (Product introduction and operation manual) together with product .
- Shipping: Around 7-14 days after receiving 100% payment .
- Shipping Way: Shipped by Sea or Air,or Express is available.
We accept T/T, L/C or negotiable .
