Quick Details
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
460x180
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380v or customized
-
Dimension(L*W*H):
-
175*152*190
-
Weight (KG):
-
850
-
Power (kW):
-
1.5
-
Name:
-

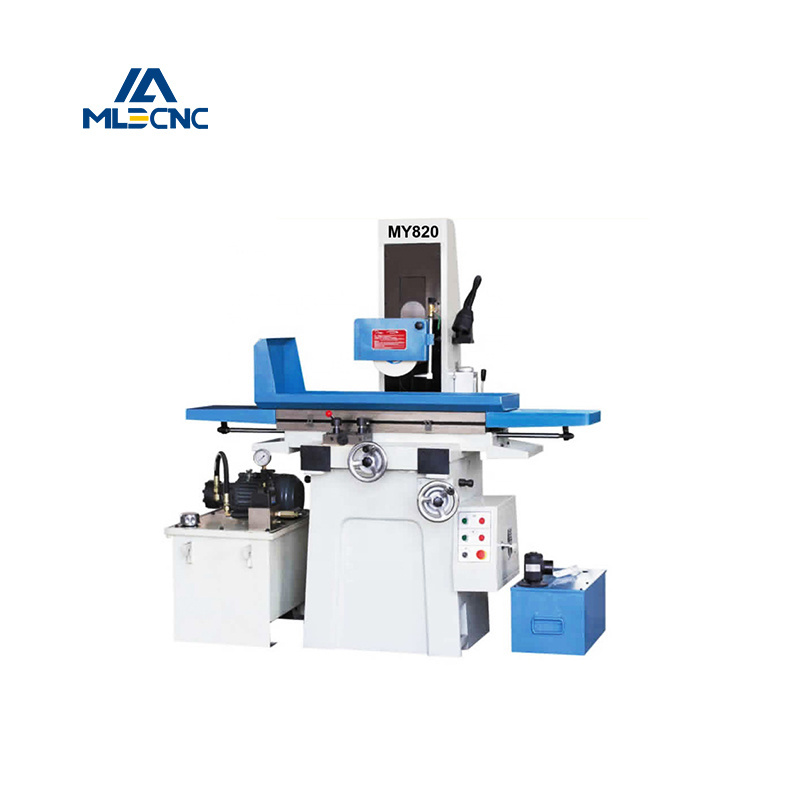

Grinding Machine
-
Color:
-
Customized Optional
Quick Details
-
Grinding Length(mm):
-
500
-
Table Travel (X) (mm):
-
500
-
Table Travel (Y) (mm):
-
190
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
460x180
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380v or customized
-
Dimension(L*W*H):
-
175*152*190
-
Weight (KG):
-
850
-
Power (kW):
-
1.5
-
Name:
-
Grinding Machine
-
Color:
-
Customized Optional
Application:
* The Surface Grinder is reasonable in structure, good rigidity, beautiful appearance, convenient operation
* The surface grinding machine using precision plastic guide surface and precision scraping, grinding imported hydraulic
transmission, drive by synchronous
* The hydraulic surface grinder main mechanical valve is a special valve grinder, is divided into two parts, the mechanical
commutation control, throttle control. Throttle control part and unloading function. can realize the station start and stop.
* Grinding can be all kinds of plane and complex shaped surface, suitable for motor without grinding the feed, according to user needs with a permanent magnet sucker or electromagnetic sucker.
* The surface grinding machine using precision plastic guide surface and precision scraping, grinding imported hydraulic
transmission, drive by synchronous
* The hydraulic surface grinder main mechanical valve is a special valve grinder, is divided into two parts, the mechanical
commutation control, throttle control. Throttle control part and unloading function. can realize the station start and stop.
* Grinding can be all kinds of plane and complex shaped surface, suitable for motor without grinding the feed, according to user needs with a permanent magnet sucker or electromagnetic sucker.
|
Technical Parameters
|
|
Unit
|
M618
|
|
|
Table maximum cutting area((L X Wx H )
|
|
mm
|
500*190*335
|
|
|
Working table movement |
Max Grinding Length
|
mm
|
500
|
|
|
|
Max. Grinding width
|
mm
|
190
|
|
|
Distance From Table Surface To Spindle Center
|
|
mm
|
335
|
|
|
Slide way
|
|
|
V-type rall with steel-ball
|
|
|
Maximum work load
|
|
kg
|
200
|
|
|
Table size
|
|
mm
|
460*180
|
|
|
Number of T -Slot
|
|
mm*n
|
14*1
|
|
|
Table speed
|
|
m/min
|
3-23
|
|
|
Front and rear wheel feed
|
|
mm
|
0 02/Graduation 2.5/revolution
|
|
|
On the hand wheel feed
|
|
mm
|
0.01/Graduation 1.25/revolution
|
|
|
Wheel Size (diaXwidth X bore)
|
|
mm
|
180*13*31.75
|
|
|
Spindle speed |
50HZ
|
rpm |
2800
|
|
|
|
Variable frequency motor (matching)
|
|
0--6000
|
|
|
Spindle motor
|
|
Kw
|
1.1
|
|
|
Cooling pump
|
|
Kw
|
0.04
|
|
|
Packing Size (LxWxH)
|
|
mm
|
1240*1080*1800
|
|
|
Cross,Net
|
|
T
|
0.75,0.65
|
|
