Sample order, 3-5 days to arrive.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Material:
-
Plastic
-
Color:
-
Black
-
Protocol:
-
SIP 2.0
-
Display Resolution:
-
128x48 with Backlight
-
Language:
-
Multi languages
-
Warranty:
-
18 Months
-
Dimension:
-
235x225x97 mm
-
Net Weight:
-
1 KG
-
Power supply:
-
DC 12V/ POE
Quick Details
-
Type:
-
VoIP Phone
-
Brand Name:
-
KNTECH
-
Model Number:
-
KNPL-700M
-
Place of Origin:
-
Guangdong, China
-
Material:
-
Plastic
-
Color:
-
Black
-
Protocol:
-
SIP 2.0
-
Display Resolution:
-
128x48 with Backlight
-
Language:
-
Multi languages
-
Warranty:
-
18 Months
-
Dimension:
-
235x225x97 mm
-
Net Weight:
-
1 KG
-
Power supply:
-
DC 12V/ POE
Product Description
V

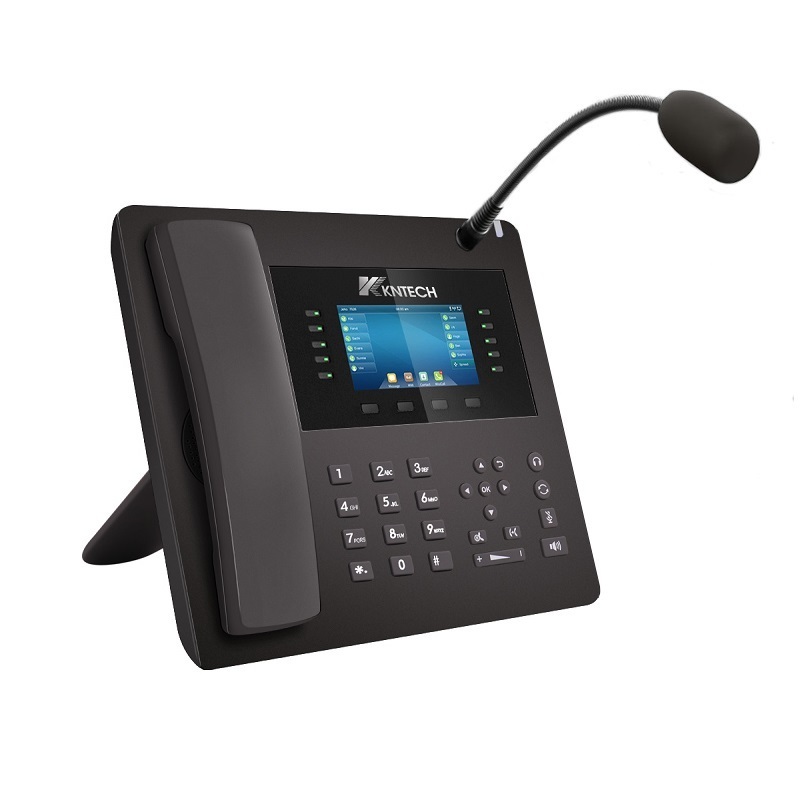

oIP Phone Office IP Telephone System 2 SIP Lines IP Phone
Model: KNPL-700M
IP phone features
1.HD Audio,handset and speakerphone with support for wide-band audio.
2.6 line keys with up to 6 SIP accounts,8MPK extension keys with dual-color LED with 2 Left/Right keys.
3.Dual LCD screens with digital BLE keys.
4.Swappable face plates to allow for easy logo customization
5.Dual sitched auto-sensing 10/100Mbps Megabytes Ethernet ports with integrated POE.
1.HD Audio,handset and speakerphone with support for wide-band audio.
2.6 line keys with up to 6 SIP accounts,8MPK extension keys with dual-color LED with 2 Left/Right keys.
3.Dual LCD screens with digital BLE keys.
4.Swappable face plates to allow for easy logo customization
5.Dual sitched auto-sensing 10/100Mbps Megabytes Ethernet ports with integrated POE.
|
VoIP IP Phone Specification
|
|
|
|
Display
|
4.3 inch colorful screen
|
|
|
|
• Large dot matrix LCD display and soft keys make user easier to use
• Soft keys programmable • Function keys programmable (each key have 2-color led indication)
• Supports RJ-9 headset
• Multi languages displayed
|
|
|
Audio Features
|
• HD voice: HD handset •Codec: G.711A/u, G.7231 high/low, G.729AB, G.722, G.726-32
• DTMF: In-band, RFC 2833 and SIP INFO • Full duplex hands- free speaker phone with acoustic echo cancellation • Voice Activity Detection (VAD) • Comfort Noise Generation (CNG) • Background noise suppression • Adaptive jitter buffers • Packet loss concealment • SRTP • mute |
|
|
Advanced Features
|
• Call forwarding (busy/ no answer/ always) • Call transfer ( unattended/ attended/ semi-attended ) • Call holding
• Call waiting • 3 way call conference • Capable of 10 way conversation • BLF list • Join call • Call pickup • Call park • Redial • Call back • Call completion • Hot desking • Auto redial • Predial • SIP messaging , MWI • Flexible dial plan • Barring function for outgoing calls • Do not disturb • Auto answer • Caller ID display • CLIR(rejects anonymous calls) • CLIP(to make an anonymous call) • Dial without registration • Call logs with missed calls/ incoming calls/outgoing calls. Each support 300 records • Phonebook 500 records
• Speed Dial (abbreviated dialing) • Hotline/Warm-line
• Call rejection • Black List/ White List • Intercom/Intercom barge • Password dial, DTMF hidden • Action URL/ active URI • Voice codec setting for each SIP line • Multicast • LDAP, XML phonebook • Web dial • Keypad lock, Emergency call |
|
|
|
• WAN / LAN:10/100M Ethernet ports
• Bridge mode and route • PPPoE for xDSL • 802.3af POE(optional) • VLAN(Voice VLAN/Data VLAN) • 802.1X • NAT (NAPT) • NAT transverse :Support STUN client • DHCP client on WAN/ DHCP server on LAN • Main DNS and secondary DNS server • DNS Relay • SNTP Client • Firewall and DMZ • Web management access restricted • VPN(L2TP/Open VPN) • |
|
|
|
• WEB ,telnet and LCD menu management • Management with different account right • Recover firmware and factory reset through POST mode
• Upgrade firmware via HTTP, HTTPS, FTP, TFTP • DHCP option66 and custom option for auto provisioning • Auto Provisioning to upgrade configuration file with AES(256) encryption • TR-069 and Syslog |
|
|
|
• Adapter Input: AC 100-240V
• Adapter Output: DC 5V/1A • WAN Port -10/100 BASE-T RJ-45 for LAN • LAN Port-10/100 BASE-T RJ-45 for PC • Headset : RJ9 • Power consumption: IDLE: 2.5W Active: 2.8W • Display Resolution: 128x48 pixels • Operation Temperature: 0〜40℃ • Relative Humidity: 10〜65% • Main Chipset : Broadcom • SDRAM: 16MB • FLASH: 4MB |
|
Our Company
HongKong Koon Technology Co., Ltd. (KNTECH) engage in research and development of Emergency Communications System; PAGA broadcast scheduling; scenic spots, airport tourists help management program; municipal SOS, 110, 119 alarm system; special industrial IP telephones, SOS telephones, IP PABX, Servier, TR069/SNMP/Modbus network management, SIP scheduling system for metro, tunnel, airports, petrochemicals, metallurgy, nuclear power, marine, ship building, bridge, mine and other industries.
Strong R&D team
, offer you professional technical support and further customization.
High productivity factory
, short lead time and fast delivery for you.
We KNTECH team are always here at your prompt and best service.
Production Equipments and Production Plant.
Application
KNTECH Telephones have wide applications, like metro, highway, railway, marine, mining, tunnel, steel plant, chemical plant, power plant, oil & gas pipe, prison, bank and related industrial application, etc.
Except terminal, we also provide customer complete system and solution.
Telecom solution, PAGA system, customization function, etc.
Certifications
KNTECH Industrial Telephones pass lots of certificates, such as IOS, CE, FCC, EMC, TUV, ETL, LVD, AU LVD, SASO, Norway DNV, etc.
Project Reference
KNTECH goods sell to over 100 countries all over the world, very popular for government projects because of high quality and complete solution. Below share some projects.
|
China Hong Kong
|
|
Hong Kong-Zhuhai-Macau Briage
The world's longest sea-crossing bridge |
|
HongKong Airport
|
|
Express Rail Link XRL Contract 851
|
|
Shing Mun/ Lion Rock/ Kai Tak Tunnels
|
|
Hong Kong Eastern Harbour Crossing
|
|
Central–Wan Chai Bypass
|
|
Thailand Metros
|
|
Purple line
|
|
Red line
|
|
Green line
|
|
Blue line
|
|
Pink & Yellow line
|
|
Australia Sydney Metro North West Line
|
Israel Metro
|
Singapore Marine Project
|
|
Brazil Sao Paulo Metro
|
Malaysia Kuala Lumpur Railway
|
Russia St. Pittsburgh Metro
|
|
Germany Berlin Metro
|
Norway OLSO Metro
|
Turkey High-speed Railway
|
|
Greek Athens Metro
|
Philippines Manila Railway
|
Turkey Highway
|
|
India New Delhi Metro
|
Saudi Arabia Riyadh Metro
|
Slovenia Metro
|
|
India Bangalore Metro
|
Saudi Arabia Mecca Railway
|
Mexico Metro
|
|
India Hyderabad Metro
|
Saudi Arabia Shoaiba Power Plant
|
Vietnam Hochimin Railway
|
|
India Mumbai Airport
|
Singapore Sentosa Tunnel
|
South Russian Railways
|
|
India Kochi Metro
|
Singapore SMT Green Line
|
Netherlands Bonaire Jail
|
|
India Lucknow Metro
|
Singapore Airport Project
|
Curacao Jail
|
|
India Mumbai Metro
|
Singapore Thomson Line
|
Peru Jail
|
|
Thailand KMUTT Project
|
Pakistan CPEC Project
|
Romanian Prison
|
Packing & Delivery
|
Standard Package:
|
|
|
|
Unit Phone Dimension:
|
235x225x97 mm
|
|
|
Unit Net Weight:
|
1 KG
|
|
Fast delivery.
