Quick Details
-
Application:
-
oil, chemicals, fats and fertilizers
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Product Name:
-

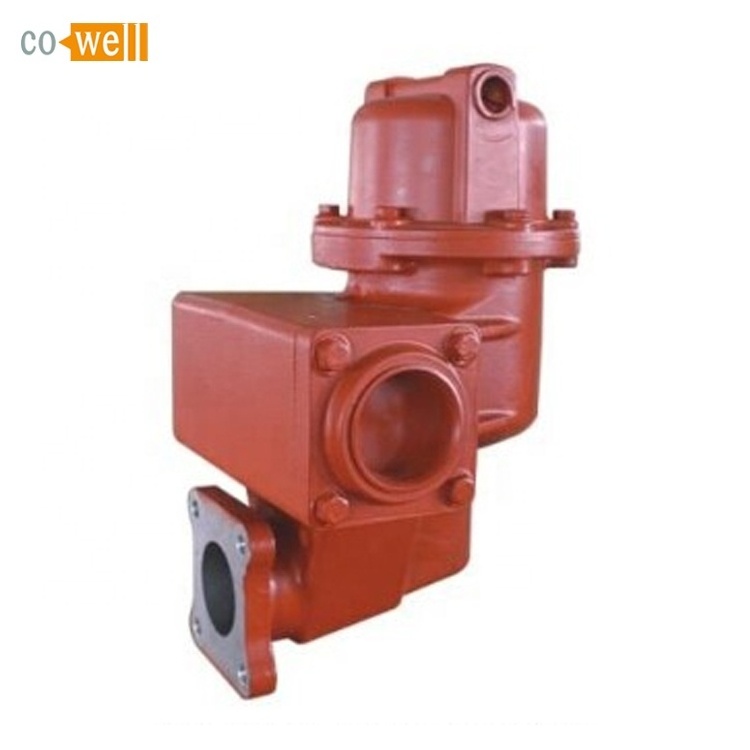

PD Rotary Vane Flow Meter metering for gasoline kerosene fuel oil
-
Accuracy:
-
±0.2%
-
Application:
-
oil, chemicals, fats and fertilizers
|
Characteristics FMC series PD rotary vane meters are single case, angle-type, rotary vane, positive displacement meters; Superior accuracy and metering for a wide range of products, such as, gasoline, kerosene, fuel oils etc .. ; Compact, versatile design can be readily fit into nearly all installations; Low pressure drop meter results in low meter slippage and thus superior meter accuracy; Long service life, low friction ball bearings, fixed cam-type timing, and rugged construction give sustained accuracy and long time operation. . |
| Technical Specification | |||
| Model | FMC-50 | FMC-80 | FMC-100 |
| Size | 50mm/2" | 80mm/3" | 100mm/4" |
| Flow Range(L/min) | 38-380 | 75-750 | 150-1500 |
| Max. Working Pressure | 150PSI | ||
| Accuracy | ±0.2% | ||
| Repeatability | 0.07% | ||
| Packaging Data | ||
| Model | FMC-50 | FMC-80 |
| Packaging | 1pc/wooden case | |
| Net Weight | 42kgs | 63kgs |
| Gross Weight | 57kgs | 70kgs |
| Size | 59x34x57cm | 59x34x57cm |
|
2” Air Eliminator & Strainer |
4” Air Eliminator & Strainer |
2” Preset Valve |
-
Application includes: blending, batching, dispensing, inventory control and custody transfer of oils, solvents, chemicals, paints, fats and fertilizers.
| Warranty: the product is guaranteed for 12 months from the date of delivery under normal condition. | Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality; | We provide paid repair services for products damages not arising from manufacturing quality issues or not within the scope of warranty. |
