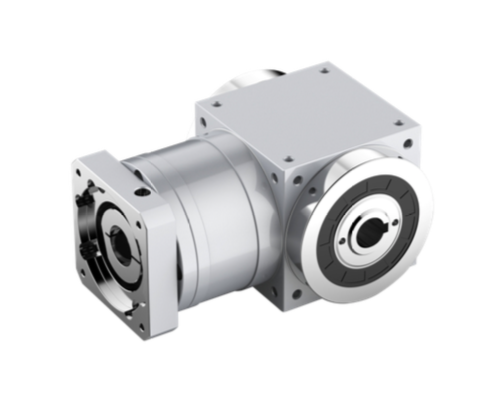

Quick Details
-
Output Speed:
-
0-6000RPM
-
Warranty:
-
1 year
-
Weight (KG):
-
24
-
Place of Origin:
-
China
-
Brand Name:
-
chengshen
Quick Details
-
Gearing Arrangement:
-
Bevel / Miter
-
Output Torque:
-
0-5000NM
-
Input Speed:
-
0-6000RPM
-
Output Speed:
-
0-6000RPM
-
Warranty:
-
1 year
-
Weight (KG):
-
24
-
Place of Origin:
-
China
-
Brand Name:
-
chengshen
AT Series Gear Box Internal Structure Diagram
PHF60 series detailed parameters of planetary gearbox:
Reduction ratio :1 -5
Rated output torque :12 -3200NM
Maximum Output Torque : 1.5 times rated torque
Rated input speed :1700-7500 RPM
Backspace : ≤ 6 Arcmin
Average service life : 20000h
Full-load transmission efficiency : ≥ 97%
Use temperature range : -10~+90 ℃(Customizable lower or higher temperatures)
Lubricating grease : Total synthetic grease
Noise value : ≤58 dB
Protection level : IP65
AT Dimension Diagram
AT Series Performance Table
