Quick Details
-
Model Number:
-
D17
-
Dimension(Long * Breadth * High):
-
as per model
Quick Details
-
Machine Weight:
-
50000
-
Dozing Capacity:
-
5m³
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
D17
-
Dimension(Long * Breadth * High):
-
as per model

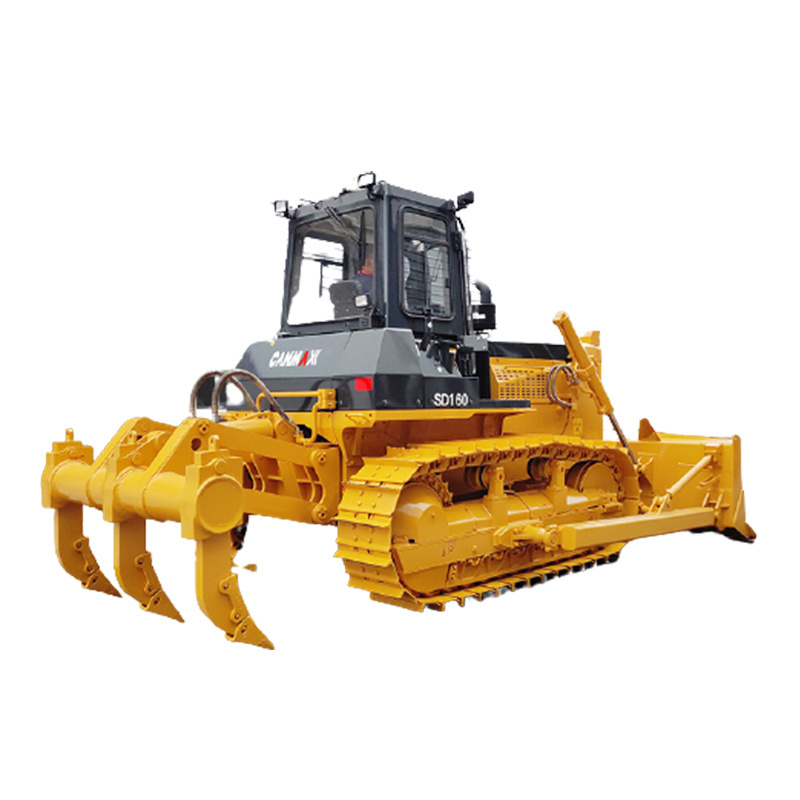

Underground Mining Use Mini Bulldozer D6 Bulldozer
Engine: Weichai WD10G178E25
Rated Power: 131KW (178HP) @1850 rpm
Operating Weight: 17 ton
Weichai WD10G178E25 engine gives you more power and reliability you need. Improved fuel economy over the previous model with strong torque output and low fuel consumption gives you excellent overall fluid efficiency.
The gearbox uses a planetary gear structure that operates the hydraulic control valve to achieve forward, reverse and various shifts. The structure is planetary gear, muti-plate clutch, hydraulic combined with forced lubrication, which is divided into three forward and three reverse.
The main frame of the full box structure adopts steel plate welded full box type integral structure, which is welded with the rear axle box. It has high impact load bearing capacity and resistance to bending and twisting. High quality weld seam ensures the main frame has a full life cycle.
Mainstream 14Mpa working hydraulic system, can greatly reduce the failure rate of hydraulic components with overload protection function.
Bulldozer Main Specifications:
|
Overall |
Dimension |
5140 ×3388× 3180 mm |
||
|
Operating Weight |
17000 kg |
|||
|
ENGINE |
Model |
Weichai WD10G178E25 |
||
|
Type |
Water-cooled, in-line, 4-stroke,direct injection |
|||
|
Number of Cylinders |
6 |
|||
|
Bore × Stroke |
Φ126×130 mm |
|||
|
Piston Displacement |
9.726 L |
|||
|
Rated Power |
131 KW (178HP) @1850 rpm |
|||
|
Max Torque |
765 N·m @1300 rpm |
|||
|
Fuel Consumption |
214 g/kW·h |
|||
|
TRANSMISSION SYSTEM |
Torque Converter |
3-element, 1 stage, 1 phase |
||
|
Gearbox |
Planetary gear type, power-shift, forced lubrication |
|||
|
Central Drive Shaft |
Spiral bevel gear, single-stage speed reduction, splash lubrication |
|||
|
Steering clutch |
Wet,multi-disc, spring loaded, hydraulically separated, hydraulic control |
|||
|
Steering brake |
Wet type,floating band structure,foot brake with hydraulic booster |
|||
|
Final drive |
2-stage speed reduction of spur gear, splash lubrication |
|||
|
TRAVEL SPEED |
Gear |
1st |
2nd |
3rd |
|
Forward |
0~3.29 km/h |
0~5.82 km/h |
0~9.63 km/h |
|
|
Reverse |
0~4.28 km/h |
0~7.59 km/h |
0~12.53 km/h |
|
|
|
Type |
Sprayed beam, suspended structure of equalizer |
||
|
No. of Carrier Rollers |
2 each side |
|||
|
No. of Track Rollers |
6 each side |
|||
|
No. of Track Shoes |
37 each side |
|||
|
Track Shoe type |
Single Grouser type |
|||
|
Width of Track shoe |
510 mm |
|||
|
Pitch |
203.2 mm |
|||
|
Track Gauge |
1880 mm |
|||
|
Ground Pressure |
0.067 Mpa |
|||
|
HYDRAULIC SYSTEM |
Max Pressure |
14 Mpa |
||
|
Pump Type |
Gear Pump |
|||
|
Displacement |
243 L/Min |
|||
|
Bore of Working Cylinder |
110 mm × 2 |
|||
|
|
Blade Type |
Straight-tilt Blade |
||
|
Blade Capacity |
4.5 m³ |
|||
|
Blade Width |
3388 mm |
|||
|
Blade Height |
1150 mm |
|||
|
Max Drop Below Ground |
540 mm |
|||
