Quick Details
-
Voltage:
-
as customer's request
-
Dimension(L*W*H):
-
2600mm*2060mm*2050mm
-
Weight (KG):
-
4000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Machine Name:
-

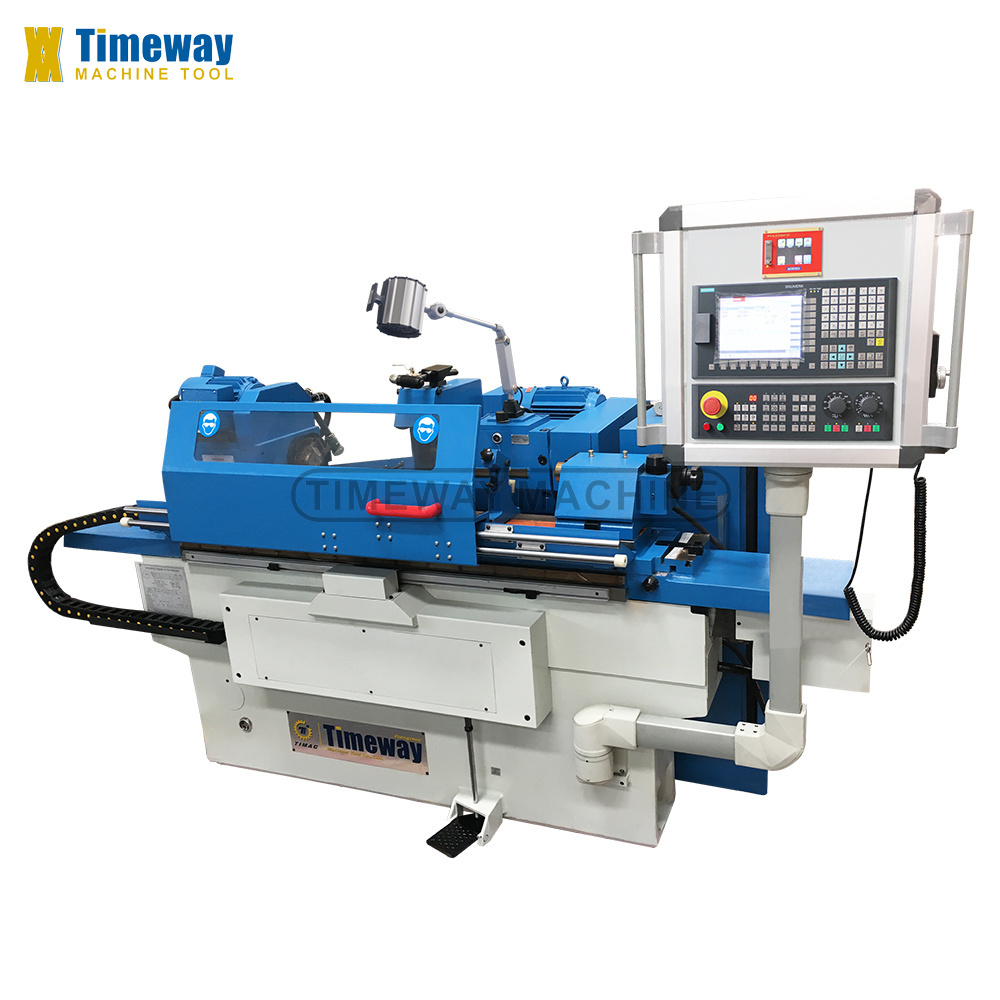

Siemen CNC Cylindrical Grinding Machine
-
Max. Grinding Length:
-
1500mm
-
Power(W):
-
5.5KW
-
Max. Grinding Diameter:
-
320mm
-
Weight:
-
4000kg
-
Product name:
-
cnc cylindrical grinder
-
Color:
-
Customized Optional
-
key selling point:
-
competitive price
Quick Details
-
Year:
-
latest day
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TIMAC TIMEWAY
-
Voltage:
-
as customer's request
-
Dimension(L*W*H):
-
2600mm*2060mm*2050mm
-
Weight (KG):
-
4000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Machine Name:
-
Siemen CNC Cylindrical Grinding Machine
-
Max. Grinding Length:
-
1500mm
-
Power(W):
-
5.5KW
-
Max. Grinding Diameter:
-
320mm
-
Weight:
-
4000kg
-
Product name:
-
cnc cylindrical grinder
-
Color:
-
Customized Optional
-
key selling point:
-
competitive price
cnc cylindrical grinding machine
Standard Accessories:
Semi isolated table shield, Coolant tank, Wheel dresser, 2 points steady rest (Standard dimension), wheel flange
Wheel, Wheel extractor, Wheel balancing arbor, Center points, 3-jaw chuck, Siemens electrical equipment &
delta transducer, Operation Manual (English edition).
Wheel, Wheel extractor, Wheel balancing arbor, Center points, 3-jaw chuck, Siemens electrical equipment &
delta transducer, Operation Manual (English edition).
Optional Accessories:
Full-closed safety cover, Coolant tank with magnetic separator, Coolant tank with paper filter, Machine safety
relay protection.
relay protection.
Specification
|
Specification
|
unit
|
GK-200
|
GK-320
|
|
Distance between centers
|
mm
|
500,750
|
1000 1500
|
|
Center height
|
mm
|
135
|
180
|
|
Dia.ground(O.D)
|
mm
|
5-200
|
8-320
|
|
Max.length to be ground(O.D)
|
mm
|
500,750
|
1000 1500
|
|
Center taper(MT)
|
MT
|
4
|
5
|
|
Spindle speed/stepless
|
r/min
|
50HZ:25-380
|
50HZ:25-220
|
|
Wheel size(ODXWXID)
|
mm
|
500×50×203
|
600×75×305
|
|
CNC system
|
|
Siemens SINUMERIK 808D
|
Siemens SINUMERIK 808D
|
|
Wheelhead motor power
|
kw
|
5.5
|
11
|
|
Workhead motor power
|
kw
|
1.1
|
5.5
|
|
Gross weight
|
|
4(500), 4.2(750)
|
5.3(1000), 6.1(1500)
|
Client feedback
Our Services
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
