- Product Details
- {{item.text}}
Quick Details
-
Power (kW):
-
13.37
-
Range of Spindle Speed(r.p.m):
-
2000 - 6000 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
wanling
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
upon model
-
Weight (KG):
-
1800 KG
-
Marketing Type:
-
New Product
-
Product name:
-
WLM new type powder grinding crushing machine
-
Keyword:
-
sugar additive powder making grinding grinder machine
-
Suitable for:
-
food chemcial
-
Fineness:
-
80-600mesh
-
Color:
-
Clients' Requirement
-
Certificate:
-
CE ISO
-
Function:
-
root chemical powder crushing crusher milling pulverizer machine
-
Package:
-
Wooden Case
Quick Details
-
Output (kg/h):
-
20 - 11000 kg/h
-
Feeding Size (mm):
-
1 - 12 mm
-
Output Size (mesh):
-
80 - 600 mesh
-
Power (kW):
-
13.37
-
Range of Spindle Speed(r.p.m):
-
2000 - 6000 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
wanling
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
upon model
-
Weight (KG):
-
1800 KG
-
Marketing Type:
-
New Product
-
Product name:
-
WLM new type powder grinding crushing machine
-
Keyword:
-
sugar additive powder making grinding grinder machine
-
Suitable for:
-
food chemcial
-
Fineness:
-
80-600mesh
-
Color:
-
Clients' Requirement
-
Certificate:
-
CE ISO
-
Function:
-
root chemical powder crushing crusher milling pulverizer machine
-
Package:
-
Wooden Case
WLM stainless steel mushroom herb grinding crushing fine powder making air classifier mill machine
Application
The machine is made up of three parts: main machine, auxiliary machine and electric control box. It has the properties of wind selection, having no sieve or net, and an even granularity of the processed material. The production process going on continuously, the machine can undertake the grinding of chemical products. food, medicament, cosmetics, plastic, dyestuff, resin, cotourant, grain, etc.
Main Feature
1) Simple structure , easy in installation and maintenance.
2) Adopting advanced world famous brand motor ,electric parts,bearing and operation parts.
3) No dust during production, and dust can be collected in dust collecting box.
4)No need screen, particle size can be changed by change speed; particle size varies from 80 to 600 mesh.
5) Around mill chamber and bearing, there is water-cooling jacket to cool the machine.
price need discuss again, machine is all customized
Technical Parameters
|
Model |
WLM -10 |
WLM -15 |
WLM -20 |
WLM -30 |
WLM -60 |
WLM -80 |
WLM -100 |
|
Production Capacity (kg) |
10~50 |
50~100 |
80~200 |
200~400 |
400~800 |
500~1000 |
600~1200 |
|
Feeding size (mm) |
<5 |
<10 |
<10 |
<12 |
<12 |
<12 |
<12 |
|
Crushing fineness (mesh) |
80-600 |
||||||
|
Motor power (kw) |
12 |
18.37 |
35.8 |
54 |
77.5 |
96 |
138 |
|
Spindle speed (rpm) |
4000 |
5800 |
4200 |
3800 |
3200 |
2800 |
2000 |
|
Weight (kg) |
500 |
1000 |
1200 |
1800 |
2500 |
3000 |
4000 |
|
Overall dimension
|
1700x 1800x2200 |
4500 x 1250x2700 |
6000x 1250x2900 |
7100x 1300x3650 |
8000x 2300x4500 |
8500x 2500x4600 |
10000x 2800x5000 |

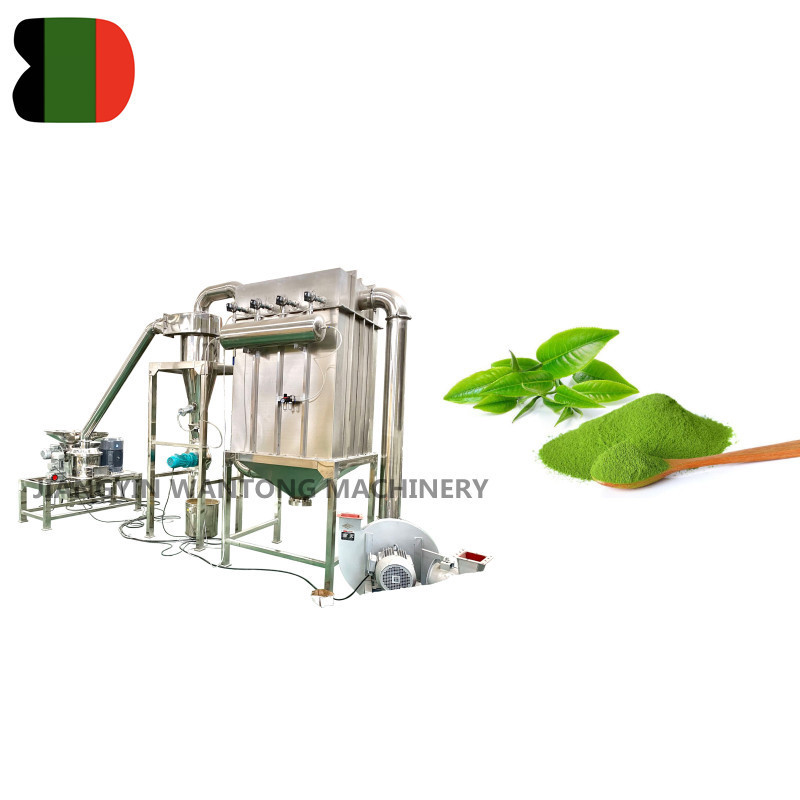

Machine Pics
