Fancy yarn twisting machine

ZhangJiaGang JiaCheng Textile Machinery CO.Ltd. one branch of JiangSu JiaCheng Machinery Co. Ltd. is located in the newly developed and open  city-ZhangJiaGang City.The land -and-water transportation is covinient.It is lies to the north of the ShnagHai-NanJing Expressway,to the west of ShangHai,to the south of the NanTong.

The Company own the capability of designing and founding.Recently,JC series of textile machinery,including JC series of braiding machines with high speed lace braiding machine with jscquard,fancy yarn crochet machine,elastic crochet machine,chenille machine,single yarn fluffing machine,which are fit for the production of various yarn,We will try our best to provide rpid,considerate,and fri endly service.We seek heart-to-heart communication with our customers thro ugh products as well as services.

Our Company has got the certification of GERMANY TüV ISO9001:2000 quality system.

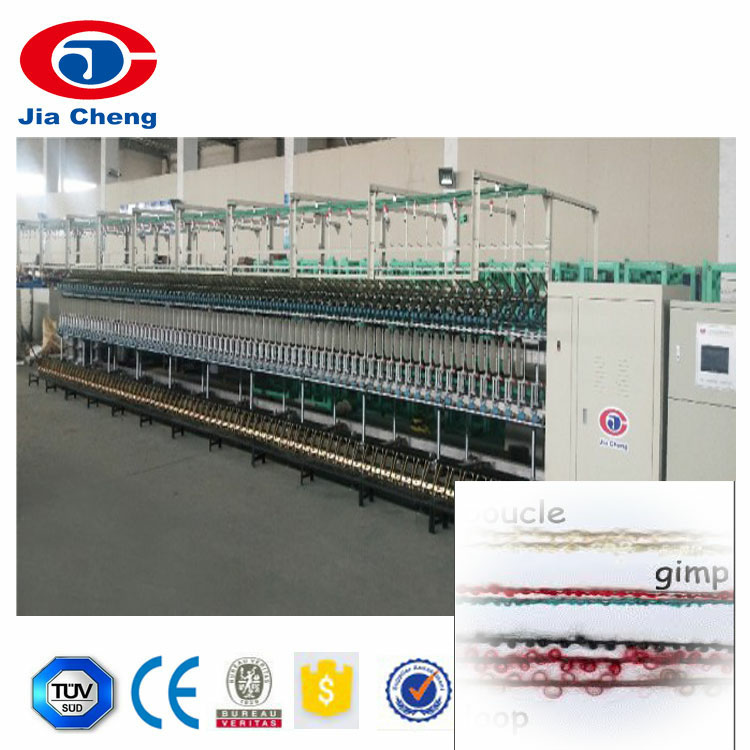

FANCY YARN TWISTING MACHINE

APPLICATION

The roving with or without twist is fed into the machine.After three rollar apron drawing,the fiber bundles meet the core wire and the solid wire at the front rollar exit.By twisting and untwisting hollow spindles and rings.Various fiber-type Fancy Yarns are formed.The docorative yarn can be directly drawed with the core yarn and the solid yarn at the exit of the Front Rollar.

MAIN FEATURES

For the convenience of user to change patterns,the machine adopts six frequency comverters.Control Core Roller,middle and rear roller,front roller,output roller,h ollow ingot continously variable speed respectively.PLC Programmable Controller and touch screen programs are used to change process parameters,display parameters and save 100 groups of process parameters.For customers to facilitate the development of new products and samples imitation.In the trial production process,the above mentioned six parts can be fine-tuned speed.

In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes

(1) Correct operating mode

(2) Correct maintenance way

(3) Remove simple proble m

Guarantees

Since the shipment date, 12 month for mechanical part, and 6 month for electrical parts

· 01 Are you a trading company or a manufacturer ·

We are a manufacturer, we supply the factory price with good quality, welcome to visit.

· 02 When can i get my machine after i paid?

The delivery time is based on the exact machine you confirmed.

· 03 How about the spare parts?

After we finish our deal, we will offer you a spare parts list for your reference.

· 04 Where are you?

Zhangjiagang city, Jiangsu Province - 2.5 hours from Shanghai Pudong international airport.

Angela Wang

Foreign Sales Manager

Whatsapp:008613915712932

Wechat:13915712932
