Quick Details
-
Model Number:
-
M15-5
-
Operating Temperature:
-
0~60℃
-
Voltage:
-
220Vac, 380Vac
-
Body Color:
-
Red, Blue, Black, or Customize
-
float switch:
-
pear
-
Flow Rate:
-
NA
-
Current:
-
10A, 15(16)A
-
Cable material::
-
PVC, Rubber
-
Protection grade:
-
IP 68
-
Cable conductor:
-
3*0.5mm2, 3*0.75mm2, 3*1.0mm2
-
Certification:
-
CE
Quick Details
-
Media Type:
-
Liquid
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ODM/cntopsun
-
Model Number:
-
M15-5
-
Operating Temperature:
-
0~60℃
-
Voltage:
-
220Vac, 380Vac
-
Body Color:
-
Red, Blue, Black, or Customize
-
float switch:
-
pear
-
Flow Rate:
-
NA
-
Current:
-
10A, 15(16)A
-
Cable material::
-
PVC, Rubber
-
Protection grade:
-
IP 68
-
Cable conductor:
-
3*0.5mm2, 3*0.75mm2, 3*1.0mm2
-
Certification:
-
CE
|

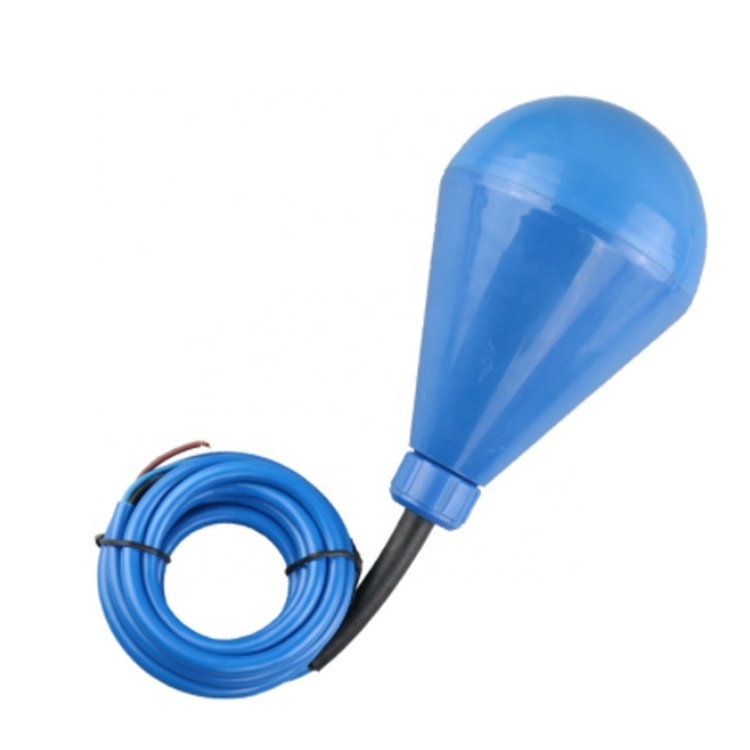

Float Regulator |
Liquid Controller /float switch |
|
Rated Working voltage |
220VAC |
|
Rated Frequency |
50Hz/60Hz |
|
Rated current |
10A |
|
Working temperature |
0 degree to 80 degree |
|
Mechanical endurance |
≥100.000 times |
|
Electric endurance |
≥ 50.000 times |
|
Protection grade |
IP68CS |
|
Standard cable length |
5m |
|
Switch currency |
+++ ≥50 000switch workings tested by VDE specialisation |
|
Protective connection |
T 70U |
|
Protection |
waterproof |
|
Working pressure |
max.1bar |
|
Circuit breaking capacity |
Directly KW with 250V |
|
Float |
Polypropylene |
|
Cable |
polypropylene Jacket |
|
Counter Weight |
Polypropylene Sealed Housing |
|
Cable Material |
HO7RN- F3x0.75mm2 , PVC (3x0. 5mm2,3x0.75mm2, 3x1.0mm2) |
|
. Your inquiry will be replied within 24 hours. |
|
2. We offer you professional service in fluent English. |
|
3. Keep the mass production as the sample in high quality |
|
4. Freight forwarder: faster,safer, and convenient. |
|
5. Quality: we have QC on each process,provide high quality products. |
Q: Is sample available and free?
A: Sample is available , but express fee should be paied in advance.
Q: What cerficated do you got ?
A:We got CE , CCC , ISO...
Q: What's your warranty ?
A:Our warranty of the product is 1 years.
Q: What's the delivery time ?
A:Delivery time is depended on quantity . We will delivery as soon as possible.
Q: How about the transport ?
A:We usually transport by Express for samll order , transport by sea or by air for huge quantity.
