Quick Details
-
Product name:
-
PVC Reflective Tape
-
Color:
-
Silver Grey
-
Material:
-
PVC
-
Pattern:
-
Parallel Stripes Type
-
Application:
-
Garment
-
Certification:
-
OEKO-TEX 100
-
Reflective coefficient:
-
RA>1000cd/lux/m2
-
Size:
-
5cm*50m/roll
-
MOQ:
-
100 Roll
-
Sample:
-
Avaialble
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
V-REFLEX
-
Model Number:
-
PVC-HW705002
-
Product name:
-
PVC Reflective Tape
-
Color:
-
Silver Grey
-
Material:
-
PVC
-
Pattern:
-
Parallel Stripes Type
-
Application:
-
Garment
-
Certification:
-
OEKO-TEX 100
-
Reflective coefficient:
-
RA>1000cd/lux/m2
-
Size:
-
5cm*50m/roll
-
MOQ:
-
100 Roll
-
Sample:
-
Avaialble
Product Descriptions

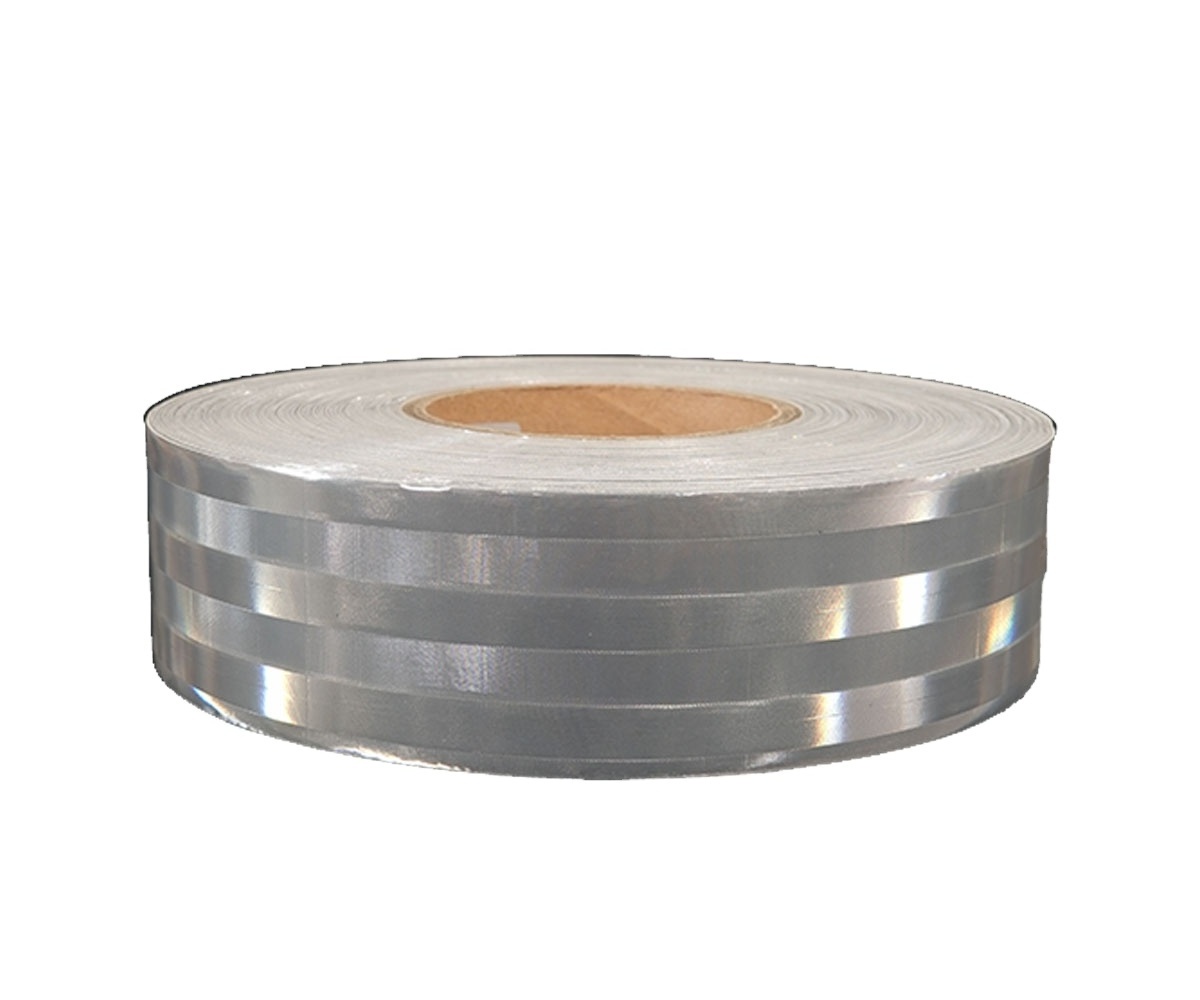

V-REFLEX TM Reflective Material - Micro Prismatic PVC Retro-Reflective Tape/Trim
V-REFLEX
TM
Reflective Material - Home Wash High Gloss Retro-Reflective Tape is designed for use on occupational safety garments, which are designed to be cleaned by home wash (domestic lanudry). It
consist of highly retroreflective microprisms formed on flexible, glossy and UV-stabilized polymeric film. It's classified into several grades of which are mainly determined by the durability (cycles) to washing resistance.
The Durability of washing resistance was determined by the tests which were carried out according to ISO 6330. Options of 20, 30, 40, 50, 100 home wash cycles are available at present.
The real durability of reflective tape in use may vary as the cleaning conditions are different from the time to time. Many more other conditions of using/exposing reflective tape effect the its real durability as well.
Product Overview
Material
PVC
Daytime Color
Silver
Reflective Color
Bright White
Retro-Reflective Technology
Micro Prismatic
Home Wash (ISO 6330)
70 Home Wash Cycles at 50℃
Dry Cleaning (ISO 3175)
Do Not Dry-Cleaning
EN ISO 20471, ANSI ISEA 107
Reflective Coefficient: RA > 500cd/lux/m2
Roll Size
5cm x 50m/roll, or OEM Size
Logo Printed on the Tape
Acceptable
Main Features
Retro-Reflectivity
ANSI/ISEA 107 & EN ISO 20471 level 2
OEKO-TEX 100
Product Class II
Flame Resistant (FR)
NFPA1971/1977/21, EN 469/533/11612
Abrasion
5000 cycles (EN 530 Method 2) |
RA ≥ 100
Flexing
7500 cycles (ISO 7854 Method A) | RA ≥ 100
Temperature Variation
50 hours @50°C, 20 hours @ -30°C | RA ≥ 100
Cold Fold Temperature Variation
-20° (ISO 4675) | RA ≥ 100
Home Wash (ISO 6330)
70 cycles @ 50°C (ISO 6330) | RA ≥ 100
Dry-Cleaning (ISO 3175)
N/A
Wet Reflectivity
ANSI/ISEA 107 |
RA ≥ 100
Standards
ANSI/ISEA 107 | RA ≥ 100
Reflective Coefficient (initial)
RA > 500 cd/lux/m
2
Home Wash (Domestic Laundry) Guidelines
A colored clothing wash program without pre-wash should be used. Follow below recommendation could maintain the duability of retro-reflective to its maxium lifespan.
Detergent
Brand powdered household detergents should be used.
Refer to manufacturer's recommendations for dosage in areas of high water hardness and for various degrees of garment soiling.
Wash temperature range: 15°C-60°
Some items can be extended to be home-washed with a wider range of washing temperature than above.
Some items can be applicable to wash from 0°C-90°C for garment requiring harsher cleaning.
Max. wash time at highest wash temperature
12 minutes
Max. Program time:
50 minutes
Drying Conditions
Cleaning process should be based on a pre-and main-bath only.
* Max. solvent temperature: 30°C
* Recommended drying temperature: 48°C
For P it's recommended to only use pure perchloroethylene. Adjust load and solvent level to give a moderate mechanical action.
* Max. solvent temperature: 30°C
* Recommended drying temperature: 48°C
Care and Maintenance Instructions
* No pre-soaking.
* No application of high alkaline products (e.g. heavy duty products or stain removal products).
* No application of solvent detergents or micro-emulsions.
* No additional bleaches.
* Do not over-dry. Reflective material temperature should not exceed 90°C at any time during drying.
* No application of high alkaline products (e.g. heavy duty products or stain removal products).
* No application of solvent detergents or micro-emulsions.
* No additional bleaches.
* Do not over-dry. Reflective material temperature should not exceed 90°C at any time during drying.
Special Cleaning Instructions
* Contamination with toxic or poisonous substances or biocontamination will require the application of a specific decontamination process.
* Application of high alkaline products, high pH-products, bleaches etc. is not recommended.
* Do not over-dry. The temperature of the material should not exceed 90°C at any time during drying.
* Application of high alkaline products, high pH-products, bleaches etc. is not recommended.
* Do not over-dry. The temperature of the material should not exceed 90°C at any time during drying.
Inpirations of Application
Firghter's Clothing, Safety Jacket, Coverall, Workwear
High Visible Clothing, Uniforms, Occupational Wear
Special Notes
Specific Safety Information
* The reflective intentsity of retro-reflective tape can also be diminished in extreme weather conditions.
* Fog, mist, smoke and dust can scatter the light from headlights, the wearer must be aware that detection distance will be severely reduced.
* Fog, mist, smoke and dust can scatter the light from headlights, the wearer must be aware that detection distance will be severely reduced.
Maintenance Misuse
* No harsh mechanical treatment, e.g. abrasion with wire brushes or sand paper.
* No uniform coating or spraying of oils, protective waxes, inks or paint.
* No application of products such as leather spray or shoe shine.
* No uniform coating or spraying of oils, protective waxes, inks or paint.
* No application of products such as leather spray or shoe shine.
Product Storage
* Store in a cool, dry area and use within 1 year of receipt.
* Rolls should be stored in their original cartons, whilst partially used rolls should be returned to their carton or suspended
horizontally from the core via a rod or pipe.
* Rolls should be stored in their original cartons, whilst partially used rolls should be returned to their carton or suspended
horizontally from the core via a rod or pipe.
* Cut sheets should be stored flat.
OEM Service
Bi Colors Series
Logo Printed
Customized Color
