Quick Details
-
Controller Type:
-
MPPT, MPPT Solar Controller
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE Rohs
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Anern
-
Model Number:
-
AN-MPSG-N
-
Output Voltage (V):
-
220V
-
Output Frequency:
-
50/60Hz
-
Work Time (h):
-
50000
-
RATED POWER:
-
500W/1000W/2000W/3000W/5000W
-
Display:
-
Digital LCD
-
Communication:
-
RS485/WIFI(optional)
-
Heat Dissipation/Cooling:
-
Temperature control by intelligent exhaust fan
-
Frequency:
-
50/60Hz
-
Output Voltage:
-
220VAC
-
Battery Voltage:
-
12.8V/25.6V/48V
Quick Details
-
Application:
-
Home, Commercial, Industrial,Outdoor
-
Solar Panel Type:
-
Monocrystalline Silicon, Polycrystalline Silicon, Half Cell
-
Battery Type:
-
Lithium Ion
-
Controller Type:
-
MPPT, MPPT Solar Controller
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE Rohs
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Anern
-
Model Number:
-
AN-MPSG-N
-
Output Voltage (V):
-
220V
-
Output Frequency:
-
50/60Hz
-
Work Time (h):
-
50000
-
RATED POWER:
-
500W/1000W/2000W/3000W/5000W
-
Display:
-
Digital LCD
-
Communication:
-
RS485/WIFI(optional)
-
Heat Dissipation/Cooling:
-
Temperature control by intelligent exhaust fan
-
Frequency:
-
50/60Hz
-
Output Voltage:
-
220VAC
-
Battery Voltage:
-
12.8V/25.6V/48V
Products Description

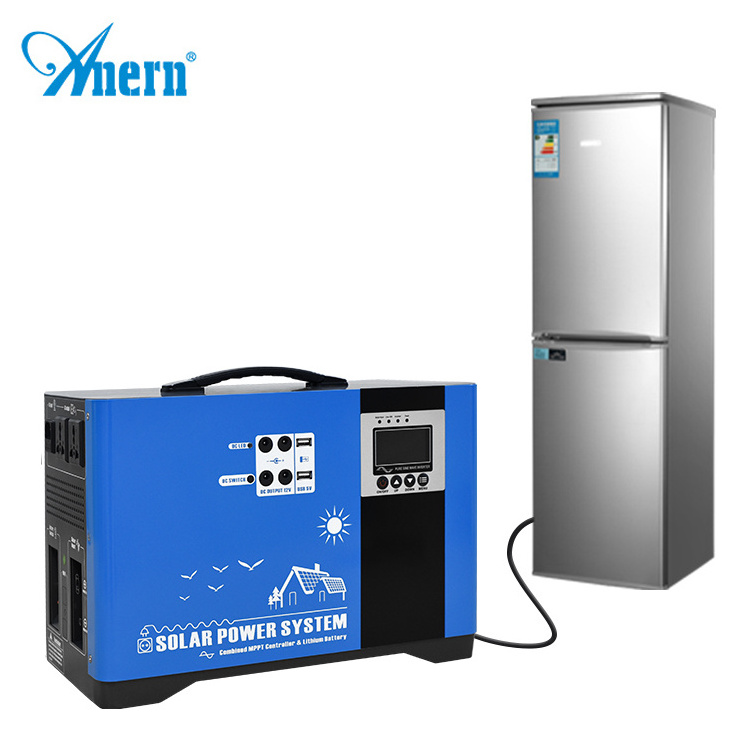

Off-Grid 500 watt 1000 watt emergency solar generator
Key Features:
◆ Excellent performance because of double CPU intelligent control technology;
◆ 2000 cycles lithium battery and has a 5 years service life ;
◆ The mains supply mode/energy-saving mode/battery mode can be set for flexible;
◆ Convenient and practical 5VDC-USB output port and 12VDC output port;
◆ MPPT Controller greatly improving the charging efficiency more than 20%;
◆ Overcharge protechon and overdischarge protection for a longer battery life;
◆ Safe and reliable with intelligent exhaust fan control;
◆ Overall automatic protection and alarms induding AC output overload protection. short arcuit protection. Etc;
◆ The mains supply mode/energy-saving mode/battery mode can be set for flexible;
◆ Convenient and practical 5VDC-USB output port and 12VDC output port;
◆ MPPT Controller greatly improving the charging efficiency more than 20%;
◆ Overcharge protechon and overdischarge protection for a longer battery life;
◆ Safe and reliable with intelligent exhaust fan control;
◆ Overall automatic protection and alarms induding AC output overload protection. short arcuit protection. Etc;
Specifications:
|
Model
|
MPSG-N500
|
MPSG-N1000
|
MPSG-N2000
|
MPSG-N3000
|
MPSG-N5000
|
|||||
|
Battery Voltage
|
12.8V
|
25.6V
|
25.6V
|
25.6V
|
48V
|
|||||
|
Inverter
|
|
|
|
|
|
|||||
|
RATED POWER
|
500W
|
1000W
|
2000W
|
3000W
|
5000W
|
|||||
|
Input Voltage Range
|
110/220VAC±10%
|
|
|
|
|
|||||
|
Input Frequency
|
45-65Hz
|
|
|
|
|
|||||
|
Output Voltage
|
110/120/220/240VAC(optional)
|
|
|
|
|
|||||
|
Output Frequency
|
50/60Hz
|
|
|
|
|
|||||
|
Output Wave
|
Pure Sine Wave
|
|
|
|
|
|||||
|
Speficifation Of Built-in Lithium Battery
|
600WH
|
1200WH
|
2500WH
|
3000WH
|
5000WH
|
|||||
|
Communication
|
RS485/WIFI(optional)
|
|
|
|
|
|||||
|
Solar Input
|
|
|
|
|
|
|||||
|
Max. PV Power
|
240W
|
480W
|
800W
|
1500W
|
3000W
|
|||||
|
Range Of Charging Voltage
|
15-90VDC
|
30-90VDC
|
30-90VDC
|
30-130VDC
|
60-160VDC
|
|||||
|
Rated Charge Current
|
20A
|
|
30A
|
60A
|
60A
|
|||||
|
DC Output
|
|
|
|
|
|
|||||
|
5VDC USB Output
|
2个/MAX 2A
|
|
|
|
|
|||||
|
12VDC Output Ports
|
2个/MAX 2A
|
|
|
|
|
|||||
|
PHYSICAL
|
|
|
|
|
|
|||||
|
Heat Dissipation/Cooling
|
Temperature control by intelligent exhaust fan
|
|
|
|
|
|||||
|
Display
|
Digital LCD
|
|
|
|
|
|||||
|
Electricity Charging
|
Yes
|
|
|
|
|
|||||
|
External Size：W*D*H（mm）
|
410*210*300mm
|
410*210*385mm
|
460*275*495mm
|
460*275*495mm
|
550*300*600mm
|
|||||
|
Package Size：W*D*H（mm）
|
458*258*348mm
|
458*258*433mm
|
495×290×640mm
|
495×290×640mm
|
585×315×760mm
|
|||||
|
G.W.(Gross Weight)
|
18kg
|
27kg
|
50kg
|
59kg
|
90kg
|
|||||
Product Details
Application
Anern Factory
We can offer OEM services as your specific requirements, provide a cost effective, energy efficient, and long term outdoor solar solution.
Packing & Delivery
Anern has strong supply capacity with a fast delivery time and
the shortest delivery time is 7 days.
Certification
Anern products have passed international testing and certification reports including UL, TUV，CE, FCC，ROHS, etc which is sure to meet the import needs of different countries. So far, Anern LED and solar series of products have put into use in many important government projects around the world and won high praise from our customers.
