Quick Details
-
Product name:
-
Mutoh valuejet 1638 WX direct inkjet digital textile printing machine
-
Printhead:
-
Double DX7
-
Ink type:
-
Reactive ink/sublimation ink
-
Printing width:
-
160cm
-
Print speed:
-
30 square meters/hour at 4 pass printing mode
-
Software:
-
Wasatch
-
Ink supply system:
-
Vacuum packed Ink bag supply
-
Printing material:
-
clothes
-
Printing height:
-
1.5mm / 2.5mm / 4.0mm (adjustable)
-
Size/weight:
-
(W)2,698 mm x (D)885.5 mm x (H)1,261 mm
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
Mutoh valuejet 1638 WX direct inkjet digital textile printing machine
-
Printhead:
-
Double DX7
-
Ink type:
-
Reactive ink/sublimation ink
-
Printing width:
-
160cm
-
Print speed:
-
30 square meters/hour at 4 pass printing mode
-
Software:
-
Wasatch
-
Ink supply system:
-
Vacuum packed Ink bag supply
-
Printing material:
-
clothes
-
Printing height:
-
1.5mm / 2.5mm / 4.0mm (adjustable)
-
Size/weight:
-
(W)2,698 mm x (D)885.5 mm x (H)1,261 mm

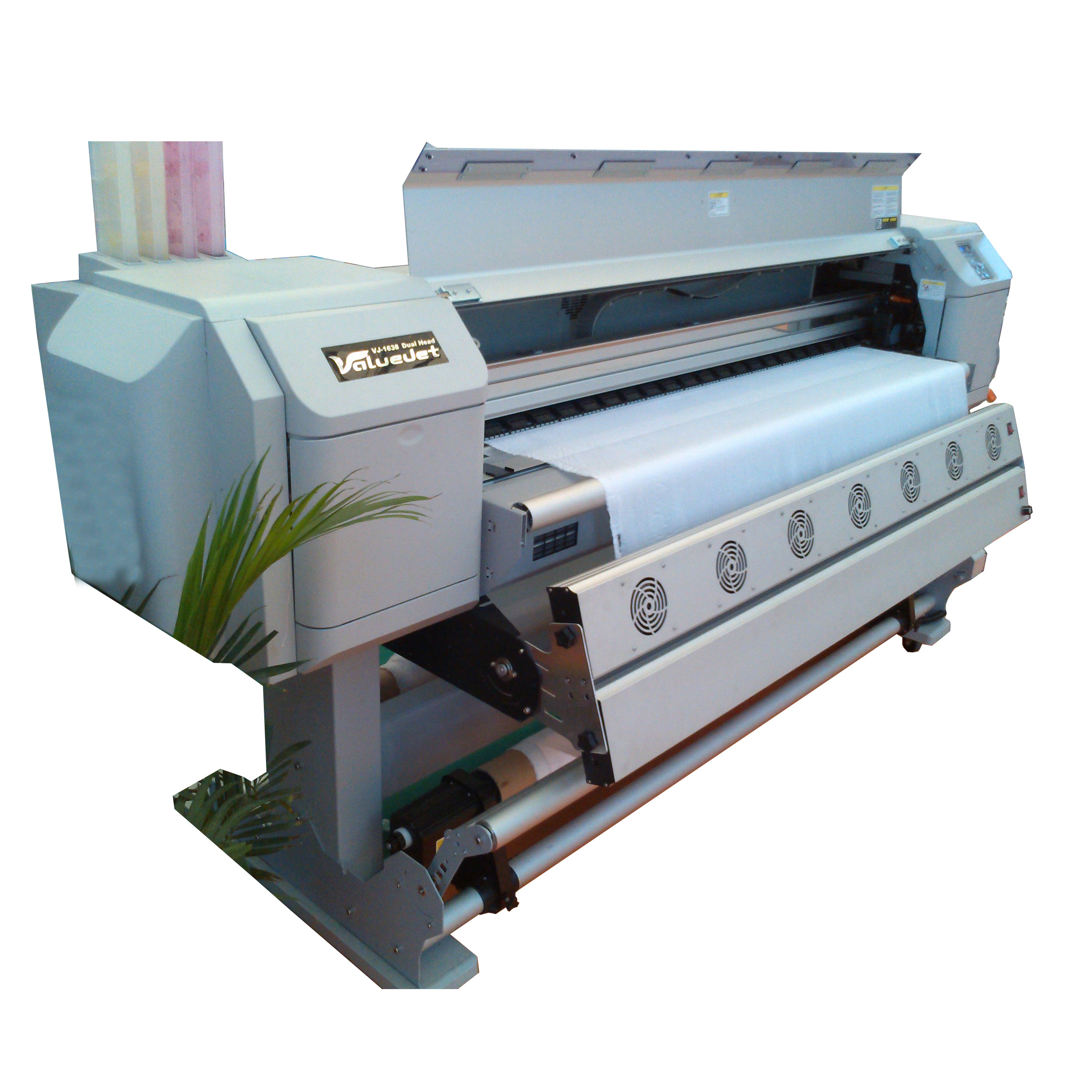

Mutoh valuejet 1638 WX direct inkjet digital textile printing machine
This Mutoh valuejet 1638 WX direct inkjet digital textile printing machine is designed for meet the quickly changed fashion garment market. It can not only to response the market requirement quickly, but also help reduce printing pollution the environment. Thanks to the on demand piezo ink jetting technology. You do not need to make plate through complicated process. What you need to do is to print the images your want from computer to the fabric directly. The inner hot wind dryer and fabric guiding roller is equipped as to dry the backside of the printing fabric instantly. Ink trough is also equipped to collect the waste ink which penetrate the fabric holes. Other machine performance is exactly the same as the original Mutoh valuejet 1638w. So please refer to the printer specifications below.
SPECIFICATIONS
| Model Name | VJ-1638W | |
| Printer Technology | Drop-on-demand Micro Piezo Inkjet Technology | |
| Print Head Nozzle Configuration | 180 nozzles x 8 lines x 2 Heads | |
| Print Head Height Adjustment | 1.5mm / 2.5mm / 4.0mm | |
| Ink Cartridge | Ink Types |
Mutoh Original Water-based Pigment Ink
Mutoh Original Sublimation Ink |
| Ink Color | 4 Colors (C,M,Y,K) | |
| Capacity | 220ml / 1,000ml Cartridge (±5%) | |
| Maximum Media Width | 1,625mm | |
| Minimum Media Width | 900mm | |
| Media Thickness | 0.3mm ~ 2.8mm | |
| Maximum Roll Media Weight & Media Core Diameter | 30kg / φ150mm (3 inches scroller) | |
| Maximum Print Width | 1,615mm | |
| Maximum Print Length (*1) | 200,000mm | |
| Print Margin | 5mm (front) / 5mm (Back) / 5~25mm (Left / Right) | |
| Print Modes | Quality1-4 / Graphic1-2 / Banner 1-4 | |
| Print Resolutions | 1440dpi / 720dpi / 360dpi | |
| Maximum Production Speed (*2) | 48 square meters/h | |
| Heating System | None | |
| Interface | Ethernet 100BASE-TX/10BASE-T | |
| Printer Language | MH-RTL pass | |
| Memory | 256MB | |
| Power Supply | AC100-240±10%(50/60Hz) | |
| Power Consumption | Power OFF | 3.8W |
| Operation | 210W (Main) | |
| Noise Level | 69.8dB | |
| Operating Environment |
Temperature 20~32℃
Humidity 40~60% (no condensation) |
|
| Certification |
MET(USA), CE(EU), FCC(USA), VCCI(Japan),
RoHS(EU), CB REPORT |
|
| Dimensions | (W)2,698 mm x (D)885.5 mm x (H)1,261 mm | |
| Printer Weight | Body | 185kg |
| Stand | 34kg | |
| Packing Dimension | Body | 2,880 mm x 1,150 mm x 851 mm / 281kg |
| Stand | 2,177 mm x 395 mm x 250 mm / 38kg | |
| Option |
1,000ml Cartridge Adapter VJ-HCIPADPT
Cutter Blade VJ-CB Take-up System VJ-16TUP30 (30kg) Feed / Take-up System VJ-16TUP80 (80kg) |
|
All trademarks mentioned are property of their respective owners.
(*1) Maximum Print Length varies with the conditions such as print data size, computer, application software, interface.
(*2) All print speed vary with the conditions such as print mode(wave, fine wave, super fine wave, fuzz), print data size, computer, application software, and interface.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
