Quick Details
-
Rated Lifting Moment:
-
Requested
-
Span:
-
7.9*5.2m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XJCM
-
Weight (KG):
-
18900 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
2020 new model self erecting off-road small mobile tower crane
-
Color:
-
Yellow
-
Overall length:
-
13.62m
-
Overall width:
-
2.635m
-
Overall height:
-
3.75m
-
Power Supply:
-
380V/50HZ
-
Certification:
-
ISO9001
-
Brand:
-
XJCM
Quick Details
-
Rated Loading Capacity:
-
2ton
-
Max. Lifting Height:
-
22m
-
Application:
-
Construction
-
Rated Lifting Moment:
-
Requested
-
Span:
-
7.9*5.2m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XJCM
-
Weight (KG):
-
18900 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
2020 new model self erecting off-road small mobile tower crane
-
Color:
-
Yellow
-
Overall length:
-
13.62m
-
Overall width:
-
2.635m
-
Overall height:
-
3.75m
-
Power Supply:
-
380V/50HZ
-
Certification:
-
ISO9001
-
Brand:
-
XJCM

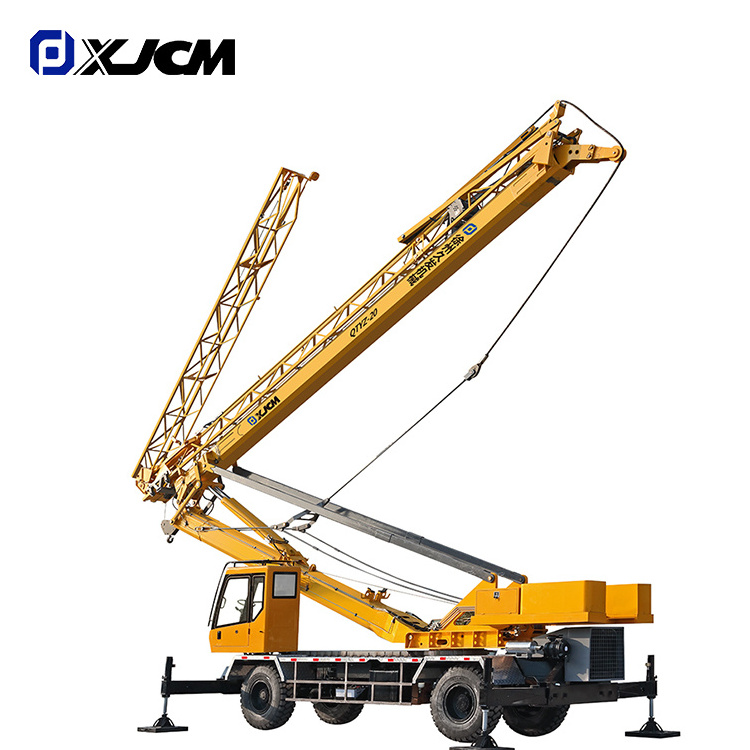

XJCM new model QTYZ-20 self erecting off-road small mobile tower crane 2 ton for sale
| Category | Item | Unit | QTYZ-10 | QTYZ-20 |
| Hoisting parameters | Max.hoisting height | m | 17 | 22 |
| Max.working radius | m | 20 | 21 | |
| Max.hoisting weight | Kg | 1000 | 2000 | |
| Hoisting speed | m/min | 20 | 27 | |
| Trolleying speed | m/min | 19 | 25 | |
| Slewing speed | r/min | 0.8 | 1 | |
| Erecting time | min | 6 | 10 | |
| Outrigger span | m | 3.5x3.5 | 7.9x5.2 | |
| Dead weight | Kg | 14500 | 26000 | |
| Travel parameters | Max.towing speed | Km/h | 15 | 15 |
| Hydraulic system | Hydraulic system | Mpa | 28 | 28 |
| Power supply | Rated Power | Kw | 11.4 | 18.5 |
| Power supply | 380/50HZ | |||
Advantages of self erecting tower crane:
1.Without foundation, saving construction cost, low requirement for site conditions.
2.Erecting and starting rapidly.
3.None working on the high level during erecting and dismounting.
4.Mast locked automatically, jib sections connected automatically in the air.
5.No require professional operator,operating simply, mastering easily.
6.Wireless remote operating,reducing working labor strength,having wide operating view.
Transporting wholly.
