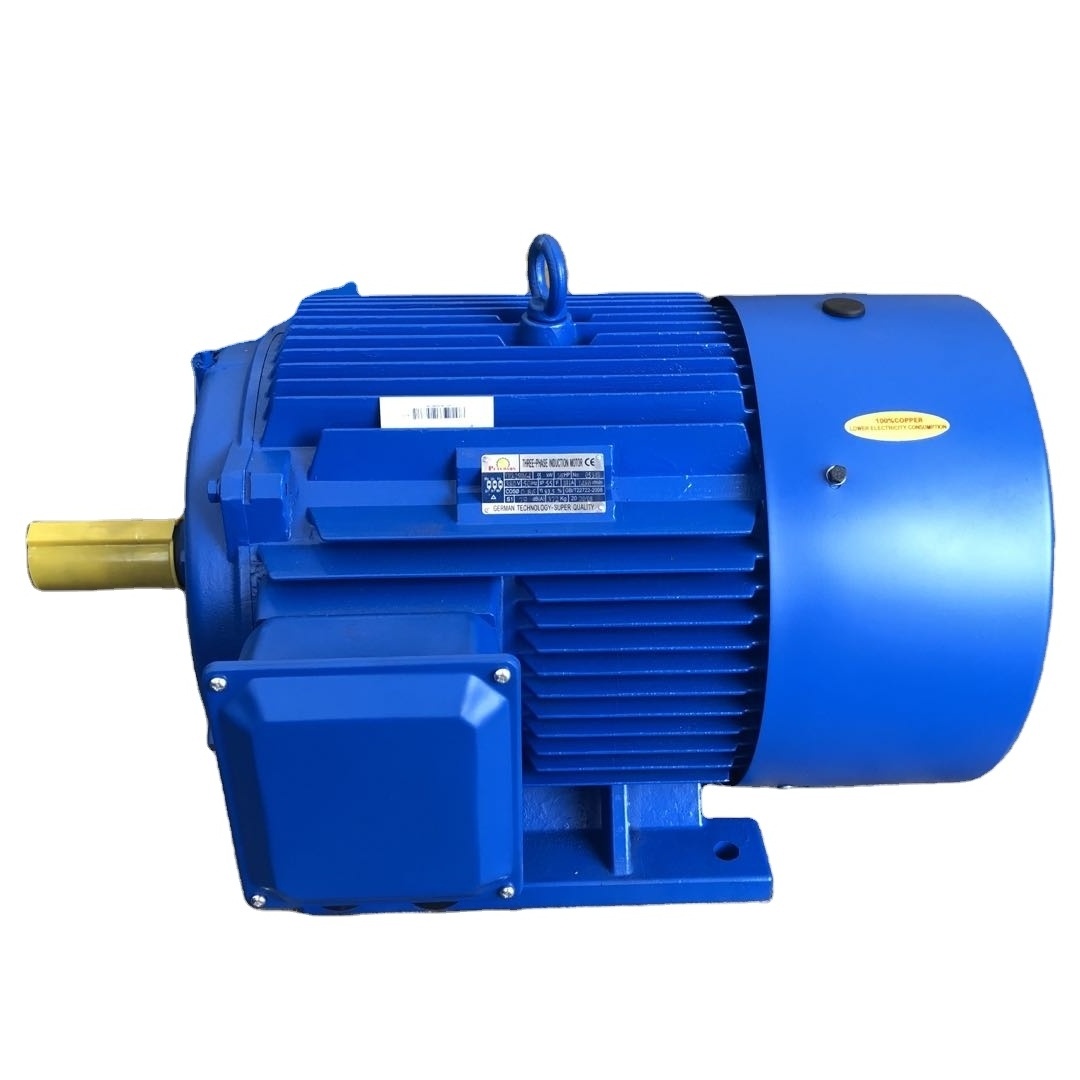

90kw high voltage three phase used electric ac motor

90kw high voltage three phase used electric ac motor

FOB Reference Price: Get Latest Price

≥1 Sets

US $40

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: Frame 100

Frequency:: 50HZ/60HZ

Product Name:: HIGH EFFICIENCY MOTOR

Rated Speed:: 2870(r/min)

Voltage:: 220V-660V

Protection class:: IP54/IP55

Power:: 3KW

Structure:: IMB3/B5/B35/V1

Function:: Control

Cooling method:: IC411

Winding:: 100% Cooper Wire

Quick Details

AC Voltage:: 220V 380V

Place of Origin:: Jiangsu, China

Brand Name:: NANFANG

Model Number:: Frame 100

Frequency:: 50HZ/60HZ

Product Name:: HIGH EFFICIENCY MOTOR

Rated Speed:: 2870(r/min)

Voltage:: 220V-660V

Protection class:: IP54/IP55

Power:: 3KW

Structure:: IMB3/B5/B35/V1

Function:: Control

Cooling method:: IC411

Winding:: 100% Cooper Wire

Changzhou Nanfang Motor Co., Ltd. (Herein after Nanfang) was established in 1992 with the registered capital of RMB 38 million.
Nanfang is one of the best motor manufacturers in China with annual capacity of 500,000 sets. It has an area of 30,000 square meters, over 220 staff including 26 professional technicians. Its major products are reducers-exclusive motor , YS series fractional horsepower motor , YE3 series and IE2 series high efficiency motor, YEJ series brake motor , YVP series variable frequency motor , YB3 series explosion-proof motor , YD series double-speed motor , aluminum-shell motors and other specialized motors. Nanfang motor has been certificated by IS0 9001 , 3C and CE since 2001.

Product Description

Site conditions	Motors are suitable for most working environment at temperature from -15°C t0 + 40°C and altitude below 1000 meters
Insulation	The motors' insulation system is set to Class F(105K), examined by Class B(80K), which ensure the life span and reliability of the motors.
Motor protection	Motors can be installed with PTC, PT100 used as winding and bearing temperature measurement on request.
Voltage and frequency	Standard voltage and frequency is 380V 50HZ, and can be set to any single voltage in the range of 200-660V at a frequency of 50 or 60HZ. The motors work well within variations of ±5% from the rated voltage.
Vibration	Motors are designed to vibration class A, vibration class B is available on request.
Duty	Continuous(S1)
Cooling and ventilation	The standard cooling method is totally enclosed fan cooled(TEFC) in accordance with IC411 of IEC60034-6. Standard motors are equipped with auxiliary plastic fans.
Winding	100% Cooper Wire
Protection class	The standard protection class is IP54/IP55, which can be used in humid and dusty environment. Higher degrees of protection is available.
Quality assurance	From the first line of production designing till the finishing procedure, obey ISO9001 documented quality system.

IE2 series high efficiency motor

IEC STANDARD

IE2 series motor is totally enclosed and fan-cooling, three-phase squirrel cage electric motor which is newly designed according to IEC standards.

ADVANTAGE

High efficiency, energy saving, large starting torque, excellent performance, low noise, low vibration, high reliability.

WIDELY USED

Applied in mechanical and electron-mechanical industry, metallurgical mineral industry, petrochemical industry, light industry, food industry, textile&clothing industry and so on.

MOTOR STRUCTURE

1	Shaft cover	11	IP55 gasket	21	Ring for lightening
2	V-ring	12	Mains power connection terminal block	22	Fan cover
3	Motor clamping screws	13	Terminal block box- base	23	Motor indentification plate
4	Spring ring	14	IP65 gasket	24	Motor indentification plate lightening screws
5	Shield	15	Terminal block box- cover	25	B5 motor casing
6	Bearing	16	Terminal block box- lightening screws	26	B5 flange
7	Motor Shaft	17	Cable inlet bush	27	B14 flange
8	Rotor	18	Compensation ring	28	Sealing ring
9	Wound stator	19	Fan cover lightening screws	29	Shaft key
10	Motor casing B3-B5	20	PVC fan

SYNCHRONOUS OUTPUT SPEED=3000RPM FREQUENCY=50HZ VOLTAGE=380V

MODEL	POWER (KW)	CURRENT (A)	SPEED (RPM)	EFF	POWER FACTOR	RATED TORQUE	TST	IST	TMAX	NOISE dB(A)
IE2-801-2	0.75kw	1.8	2830rpm	77.4	0.83	2.5	2.3	6.8	2.3	67
IE2-802-2	1.1kw	2.5	2840rpm	79.6	0.83	3.7	2.3	7.3	2.3	67
IE2-90S-2	1.5kw	3.4	2840rpm	81.3	0.84	5	2.3	7.6	2.3	72
IE2-90L-2	2.2kw	4.8	2840rpm	83.2	0.85	7.3	2.3	7.8	2.3	72
IE2-100L-2	3kw	6.3	2870rpm	84.6	0.87	10	2.3	8.1	2.3	76
IE2-112M-2	4kw	8.2	2890rpm	85.8	0.88	13.1	2.3	8.3	2.3	77
IE2-132S1-2	5.5kw	11.1	2900rpm	87	0.88	17.9	2.2	8	2.3	80
IE2-132S2-2	7.5kw	15	2900rpm	88.1	0.89	24.4	2.2	7.8	2.3	80
IE2-160M1-2	11kw	21.3	2930rpm	89.4	0.89	35.6	2.2	7.9	2.3	86
IE2-160M2-2	15kw	28.7	2930rpm	90.3	0.89	48.6	2.2	8	2.3	86
IE2-160L-2	18.5kw	34.7	2930rpm	90.9	0.89	60.1	2.2	8.1	2.3	86
IE2--180M-2	22kw	41.2	2940rpm	91.3	0.89	71.2	2.2	8.2	2.3	88
IE2-200L1-2	30kw	55.3	2950rpm	92	0.89	96.8	2.2	7.5	2.3	90
IE2-200L2-2	37kw	67.9	2950rpm	92.5	0.89	119	2.2	7.5	2.3	90
IE2-225M-2	45kw	82.1	2970rpm	92.9	0.89	145	2.2	7.6	2.3	92
IE2-250M-2	55kw	100.1	2970rpm	93.2	0.89	177	2.2	7.6	2.3	93
IE2-280S-2	75kw	134	2970rpm	93.8	0.89	241	2	6.9	2.3	94
IE2-280M-2	90kw	160.2	2970rpm	94.1	0.89	289	2	7	2.3	94

SYNCHRONOUS OUTPUT SPEED=1500RPM FREQUENCY=50HZ VOLTAGE=380V

MODEL	POWER (KW)	CURRENT (A)	SPEED (RPM)	EFF	POWER FACTOR	RATED TORQUE	TST	IST	TMAX	NOISE dB(A)
IE2-801-4	0.55kw	1.4	1390rpm	79	0.75	3.7	2.3	6.3	2.3	58
IE2-802-4	0.75kw	1.9	1390rpm	79.6	0.75	5	2.3	6.5	2.3	58
IE2-90S-4	1.1kw	2.7	1400rpm	81.4	0.75	7.4	2.3	6.6	2.3	61
IE2-90L-4	1.5kw	3.6	1400rpm	82.8	0.75	10.1	2.3	6.9	2.3	61
IE2-100L1-4	2.2kw	4.8	1430rpm	84.3	0.81	14.7	2.3	7.5	2.3	64
IE2-100L2-4	3kw	6.6	1430rpm	85.5	0.82	20	2.3	7.6	2.3	64
IE2-112M-4	4kw	8.6	1440rpm	86.6	0.82	26.3	2.3	7.7	2.3	65
IE2-132S-4	5.5kw	11.6	1440rpm	87.7	0.82	35.9	2	7.5	2.3	71
IE2-132M-4	7.5kw	14.6	1440rpm	88.7	0.83	48.9	2	7.4	2.3	71
IE2-160M-4	11kw	22.6	1460rpm	89.9	0.85	71.5	2.2	7.5	2.3	75
IE2-160L-4	15kw	29.3	1460rpm	90.6	0.86	97.4	2.2	7.5	2.3	75
IE2-180M-4	18.5kw	35.45	1470rpm	91.2	0.86	120	2.2	7.7	2.3	76
IE2-180L-4	22kw	42.35	1470rpm	91.6	0.86	143	2.2	7.8	2.3	76
IE2-200L-4	30kw	57.6	1475rpm	92.3	0.86	194	2.2	7.2	2.3	79
IE2-225S-4	37kw	69.8	1480rpm	92.7	0.86	239	2.2	7.3	2.3	81
IE2-225M-4	45kw	84.5	1480rpm	93.1	0.86	290	2.2	7.4	2.3	81
IE2-250M-4	55kw	103.1	1485rpm	93.5	0.86	354	2.2	7.4	2.3	83
IE2-280S-4	75kw	139.7	1490rpm	94	0.86	481	2.2	6.7	2.3	86
IE2-280M-4	90kw	166.9	1485rpm	94.2	0.88	579	2.2	6.9	2.3	86

SYNCHRONOUS OUTPUT SPEED=1000RPM FREQUENCY=50HZ VOLTAGE=380V

MODEL	POWER (KW)	CURRENT (A)	SPEED (RPM)	EFF	POWER FACTOR	RATED TORQUE	TST	IST	TMAX	NOISE dB(A)
IE2-801-6	0.37kw	1.2	890rpm	67	0.7	3.9	1.9	4.7	2.1	54
IE2-802-6	0.55kw	1.7	890rpm	70	0.72	5.8	1.9	4.7	2.1	54
IE2-90S-6	0.75kw	2.2	910rpm	75.9	0.72	7.7	2.1	5.8	2.1	57
IE2-90L-6	1.1kw	3.8	910rpm	78.1	0.73	11.2	2.1	5.9	2.1	57
IE2-100L-6	1.5kw	3.8	940rpm	79.8	0.74	15.2	2.1	6	2.1	61
IE2-112M-6	2.2kw	5.4	940rpm	81.8	0.74	21.8	2.1	6	2.1	65
IE2-132S-6	3kw	7.4	960rpm	83.3	0.74	29.4	2	6.2	2.1	69
IE2-132M1-6	4kw	9.6	960rpm	84.6	0.74	39.2	2	6.8	2.1	69
IE2-132M2-6	5.5kw	12.9	960rpm	86	0.75	53.9	2	7.1	2.1	69
IE2-160M-6	7.5kw	17	970rpm	87.2	0.78	73.5	2.1	6.7	2.1	73
IE2-160L-6	11kw	24.2	970rpm	88.7	0.79	108	2.1	6.9	2.1	73
IE2-180L-6	15kw	31.6	970rpm	89.7	0.81	146	2	7.2	2.1	73
IE2-200L1-6	18.5kw	38.1	970rpm	90.4	0.81	180	2.1	7.2	2.1	76
IE2-200L2-6	22kw	44.5	970rpm	90.9	0.82	214	2.1	7.3	2.1	76
IE2-225M-6	30kw	58.6	980rpm	91.7	0.81	291	2	7.1	2.1	76
IE2-250M-6	37kw	71	980rpm	92.2	0.84	259	2.1	7.1	2.1	78
IE2-280S-6	45kw	85.9	980rpm	92.7	0.86	434	2.1	7.2	2.1	80
IE2-280M-6	55kw	104.7	980rpm	93.1	0.86	531	2.1	7.2	2.1	80

SYNCHRONOUS OUTPUT SPEED=750RPM FREQUENCY=50HZ VOLTAGE=380V

MODEL	POWER (KW)	CURRENT (A)	SPEED (RPM)	EFF	POWER FACTOR	RATED TORQUE	TST	IST	TMAX	NOISE dB(A)
IE2-801-8	0.18kw	0.81	630rpm	51	0.61	2.5	1.8	3.3	1.9	52
IE2-802-8	0.25kw	1.1	640rpm	54	0.61	3.4	1.8	3.3	1.9	52
IE2-90S-8	0.37kw	1.4	660rpm	62	0.61	5.1	1.8	4	1.9	56
IE2-90L-8	0.55kw	2.1	660rpm	63	0.61	7.6	1.8	4	2	56
IE2-100L1-8	0.75kw	2.4	690rpm	70	0.67	10.2	1.8	4	2	59
IE2-100L2-8	1.1kw	3.4	690rpm	72	0.69	14.9	1.8	5	2	59
IE2-112M-8	1.5kw	4.4	680rpm	84	0.7	20	1.8	5	2	61
IE2-132S-8	2.2kw	6	710rpm	79	0.71	28.8	1.8	6	2	64
IE2-132M-8	3kw	7.9	710rpm	80	0.73	39.2	1.8	6	2	64
IE2-160M1-8	4kw	10.2	720rpm	81	0.73	52.7	1.9	6	2	68
IE2-160M2-8	5.5kw	13.6	720rpm	83	0.74	82.4	1.9	6	2	68
IE2-160L-8	7.5kw	17.8	720rpm	85.5	0.75	98.1	1.9	6	2	68
IE2-180L-8	11kw	25.2	730rpm	87.5	0.75	145	2	6.5	2	70
IE2-200L-8	15kw	34	730rpm	88	0.76	196	2	6.6	2	73
IE2-225S-8	18.5kw	40.5	740rpm	90	0.76	240	1.9	6.6	2	73
IE2-225M-8	22kw	47.3	740rpm	90.5	0.78	286	1.9	6.6	2	73
IE2-250M-8	30kw	63.4	740rpm	91	0.79	390	1.9	6.5	2	75
IE2-280S-8	37kw	76.8	740rpm	91.5	0.79	478	1.9	6.6	2	76
IE2-280M-8	45kw	92.9	740rpm	92	0.79	581	1.9	6.6	2	76

IE2 series three phase ac motor mounting data

View more details, please click here .

FAQ

More details, welcome to call us!
Q: What are the payment terms?
A: 30% T/T in advance, 70% before shipment, L/C at sight, trade assurance from alibaba.

Q: What is your delivery time?
A: Different models with different time, 10-50 days after order confirmed.

Q: What is your MOQ?
A: It depends on model.
Q: Where is your loading port?
A: Shanghai or Zhangjiagang Port, China.

About how to inquiry and place an order, how to install, operate and maintain motors, please refer to this website .
