Quick Details
-
Input:
-
128 IP input over UDP and RTP, GE port, RJ45
-
Video encoding:
-
MPEG-4 AVC/H.264
-
Video Bit-rate:
-
1Mbps~13Mbps each channel
-
Audio Encoding:
-
MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through
-
Audio Resolution:
-
24-bit
-
Maximum PID Remapping:
-
255 input per channel
-
ISDB-T Modulation Standard:
-
ARIB STD-B31
-
RF frequency:
-
50~960MHz, 1KHz step
-
Power:
-
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
-
Dimension(WxLxH):
-
482mmx328mmx44mm
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DAYTAI
-
Model Number:
-
DT-HDMI-ISDB-9536S-16
-
Input:
-
128 IP input over UDP and RTP, GE port, RJ45
-
Video encoding:
-
MPEG-4 AVC/H.264
-
Video Bit-rate:
-
1Mbps~13Mbps each channel
-
Audio Encoding:
-
MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through
-
Audio Resolution:
-
24-bit
-
Maximum PID Remapping:
-
255 input per channel
-
ISDB-T Modulation Standard:
-
ARIB STD-B31
-
RF frequency:
-
50~960MHz, 1KHz step
-
Power:
-
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
-
Dimension(WxLxH):
-
482mmx328mmx44mm
Product Description

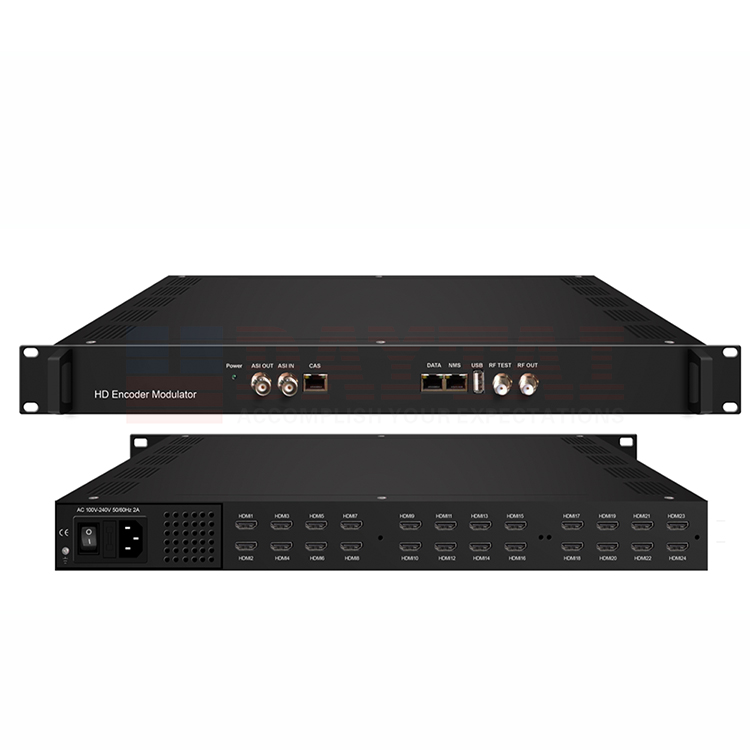

Digital TV Headend 16Way HDMI input ISDB Encoder Modulator,(DT-HDMI-ISDB-9536S-16) is a professional high integration device which includes encoding, multiplexing, and modulation. It supports 8/16/24 HDMI inputs, 1 ASI input, 1 USB payer input and 128 IP inputs via the GE port. It also supports ISDB-T RF out with 16 non-adjacent carriers, and supports 16 MPTS as mirror of 16carriers through the GE port and 1 ASI out as mirror of one of the carriers. This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…ower Plug:European standard Plug or American standard Plug is optional.
Feature
⊙1 ASI input for re-mux
⊙128 IP input over UDP and RTP via GE port
⊙Support 8 groups multiplexing/DVB-T modulating
⊙Support 8 MPTS IP output over UDP, RTP/RTSP
⊙8/16/24 HDMI inputs, MPEG-4 AVC/H.264 Video encoding
⊙Control via web management, and easy updates via web
⊙Support 1 ASI out as mirror of one of RF output carriers---Optional
⊙Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
⊙Each carrier out channel processes maximum 32 IP inputs from the GE port(UDP&RTP protocol)
⊙MPEG1 Layer II, LC-AAC and HE-AAC Audio encoding, AC3 Pass Through and audio gain adjustment
⊙Support LOGO, Caption and QR code insertion(Language Supported: 中文, English, العربية, русский, اردو, for more languages please consult us…)
⊙1 USB Player (Insert the USB Flash drive with “xxx.ts” videos in NDS3536S and play back the content in an easy way; file system FAT 32. )
⊙128 IP input over UDP and RTP via GE port
⊙Support 8 groups multiplexing/DVB-T modulating
⊙Support 8 MPTS IP output over UDP, RTP/RTSP
⊙8/16/24 HDMI inputs, MPEG-4 AVC/H.264 Video encoding
⊙Control via web management, and easy updates via web
⊙Support 1 ASI out as mirror of one of RF output carriers---Optional
⊙Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
⊙Each carrier out channel processes maximum 32 IP inputs from the GE port(UDP&RTP protocol)
⊙MPEG1 Layer II, LC-AAC and HE-AAC Audio encoding, AC3 Pass Through and audio gain adjustment
⊙Support LOGO, Caption and QR code insertion(Language Supported: 中文, English, العربية, русский, اردو, for more languages please consult us…)
⊙1 USB Player (Insert the USB Flash drive with “xxx.ts” videos in NDS3536S and play back the content in an easy way; file system FAT 32. )
Specification
|
Item
|
Specification
|
|
|
|
|||
|
Input
|
8/16/24 HDMI inputs for option
1 ASI in for re-mux 1 USB Player input for re-mux 128 IP input over UDP and RTP, GE port, RJ45 |
|
|
|
|||
|
Video
|
Resolution
|
Input
|
|
1920×1080_60P, 1920×1080_60i,
1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, |
|||
|
|
|
Output
|
|
1920×1080_30P, 1920×1080_25P,
1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P, |
|||
|
|
Encoding
|
MPEG-4 AVC/H.264
|
|
|
|||
|
|
Bit-rate
|
1Mbps~13Mbps each channel
|
|
|
|||
|
|
Rate Control
|
CBR/VBR
|
|
|
|||
|
|
GOP Structure
|
IP…P (P Frame adjustment, without B Frame )
|
|
|
|||
|
Audio
|
Encoding
|
MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through
|
|
|
|||
|
|
Sampling rate
|
48KHz
|
|
|
|||
|
|
Resolution
|
24-bit
|
|
|
|||
|
|
Audio Gain
|
0-255 Adjustable
|
|
|
|||
|
|
MPEG-1 Layer 2 Bit-rate
|
48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
|
|
|
|||
|
|
LC-AAC Bit-rate
|
48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
|
|
|
|||
|
|
HE-AAC Bit-rate
|
48/56/64/80/96/112/128 kbps
|
|
|
|||
|
Multiplexing
|
Maximum PID
Remapping |
255 input per channel
|
|
|
|||
|
|
Function
|
PID remapping ( automatically or manually)
|
|
|
|||
|
|
|
Accurate PCR adjusting
|
|
|
|||
|
|
|
Generate PSI/ SI table automatically
|
|
|
|||
|
Modulation
|
ISDB-T
|
Standard
|
|
ARIB STD-B31
|
|||
|
|
|
Bandwidth
|
|
6M
|
|||
|
|
|
Constellation
|
|
QPSK, 16QAM, 64QAM
|
|||
|
|
|
Guard Interval
|
|
1/32, 1/16, 1/8, 1/4
|
|||
|
|
|
Transmission Mode
|
|
2K, 4K, 8K
|
|||
|
|
|
Code rate
|
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|||
|
|
|
MER
|
|
≥40dB
|
|||
|
|
|
RF frequency
|
|
50~960MHz, 1KHz step
|
|||
|
|
|
RF out
|
|
16 non-adjacent carriers output (maximum bandwidth 192MHz)
|
|||
|
|
|
RF output level
|
|
-20dBm~+3dBm, 0.1dB stepping
|
|||
|
Stream output
|
1 ASI output as mirror of one of RF output carriers(Optional)
16 MPTS output over UDP and RTP/RTSP as mirror of 16 ISDB-T carriers 1*1000M Base-T Ethernet interface, GE port |
|
|
|
|||
|
System function
|
Network management (WEB)
|
|
|
|
|||
|
|
Chinese and English language
|
|
|
|
|||
|
|
Ethernet software upgrade
|
|
|
|
|||
|
Miscellaneous
|
Dimension (W×L×H)
|
|
482mm×328mm×44mm
|
|
|||
|
|
Environment
|
|
0~45℃(work)；-20~80℃（Storage）
|
|
|||
|
|
Power requirements
|
|
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
|
|
|||
