Quick Details
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
Leyon
-
Model Number:
-
Grooved pipe fitting
-
Product name:
-

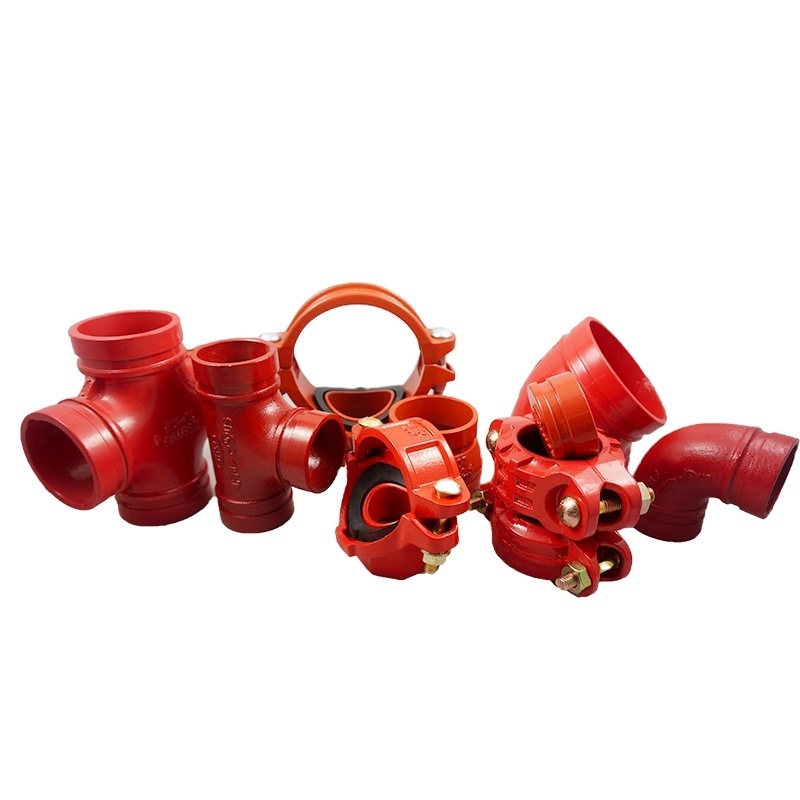

FM certificated pipe fittings Ductile Iron Grooved
-
Surface:
-
Epoxy Painting Red/Blue
-
Testing pressure:
-
2.5Mpa
-
Working pressure:
-
1.6Mpa
-
Application:
-
Suitable for pipe lines connect of water ,steam ,air ,gas,oil etc
-
Certificate:
-
ISO 9001:2008
-
Standard:
-
ANSI
-
Size:
-
2"-12"
-
item:
-
grooved ductile iron pipe fittings
-
Name:
-
fm grooved pipe fittings
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Equal
-
Head Code:
-
Round
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
Leyon
-
Model Number:
-
Grooved pipe fitting
-
Product name:
-
FM certificated pipe fittings Ductile Iron Grooved
-
Surface:
-
Epoxy Painting Red/Blue
-
Testing pressure:
-
2.5Mpa
-
Working pressure:
-
1.6Mpa
-
Application:
-
Suitable for pipe lines connect of water ,steam ,air ,gas,oil etc
-
Certificate:
-
ISO 9001:2008
-
Standard:
-
ANSI
-
Size:
-
2"-12"
-
item:
-
grooved ductile iron pipe fittings
-
Name:
-
fm grooved pipe fittings
AWWA size fittings are supplied with rigid radius grooves in accordance with ANSI/AWWA C-606
Fittings conform to ANSI 21.10/AWWA C-110 for center-to-end dimensions and AWWA C-153 or ANSI 21.10/AWWA C-110 for wall
thicknesses
Available with a wide variety of coatings and linings
Unwelded fittings can supply tapped fittings that meet ANSI B16.1 dimension locations
Sizes from 3 – 36″ | DN80 – DN900
Pressure rated up to 350 psi | 2413 kPa | 24 bar
Fittings conform to ANSI 21.10/AWWA C-110 for center-to-end dimensions and AWWA C-153 or ANSI 21.10/AWWA C-110 for wall
thicknesses
Available with a wide variety of coatings and linings
Unwelded fittings can supply tapped fittings that meet ANSI B16.1 dimension locations
Sizes from 3 – 36″ | DN80 – DN900
Pressure rated up to 350 psi | 2413 kPa | 24 bar
|
Material
|
Ductile iron Malleable iron
|
|
Standard
|
Grooved Ends，ANSI/AWWA C606; NAPF 400
|
|
Physical Property
|
Tensile strength>=350Mpa,Elongation>=10%,Hardness<=150HB
|
|
Working Pressure
|
ANSI/AWWA C151/A21.51; NAPF 100. Suitable class thickness pipe is rated at the pipe foundry according to the tables contained
therein |
|
Model
|
Elbow,Tees,Crosses,Bends,Unions,Bushing,Lateral Braches,Sockets,Nipples,Hexagon/Round,Caps,Plugs,Locknuts,Flanges,Side outlet
Tees,Side Outlet Elbows and etc |
|
Connection
|
Grooved Ends with threaded Ends
|
|
Certificate
|
ISO9001,ANSI/AWWA C606;
|
|
SIZE
|
Fittings available from 3/4 – 24″ | DN20 – DN600
|
|
Application
|
Suitable for fire piping system,air,gas,oil and so on
|
|
Package
|
Cartons with pallet
|
|
|
Double woven bags
|
|
Delivery Details
|
According to the quantities and specifications of each order
|
|
|
Normal delivery times is from 30 to 45 days after receiving the deposit
|
