Quick Details
-
Production Capacity:
-
1000 set per Month
-
Place of Origin:
-
China
-
Brand Name:
-
Yugong
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
650*550*1150mm
-
Weight:
-
75 kg
-
Product name:
-
Hydraulic Wire Saw
-
Wire length:
-
18mm
-
Spindle power:
-
5.5kw Water Cooling Spindle
-
Usage:
-
Natural Face Stone Split
-
Driving system:
-
Servo Motor
-
Function:
-
Stone Engraving Carving Cutting
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
15kw
-
Cutting thickness (max):
-
400mm
-
Production Capacity:
-
1000 set per Month
-
Place of Origin:
-
China
-
Brand Name:
-
Yugong
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
650*550*1150mm
-
Weight:
-
75 kg
-
Product name:
-
Hydraulic Wire Saw
-
Wire length:
-
18mm
-
Spindle power:
-
5.5kw Water Cooling Spindle
-
Usage:
-
Natural Face Stone Split
-
Driving system:
-
Servo Motor
-
Function:
-
Stone Engraving Carving Cutting
Fully Automatic Factory Price Diamond Wire Saw Machine for Silicon Wafer
Product Description

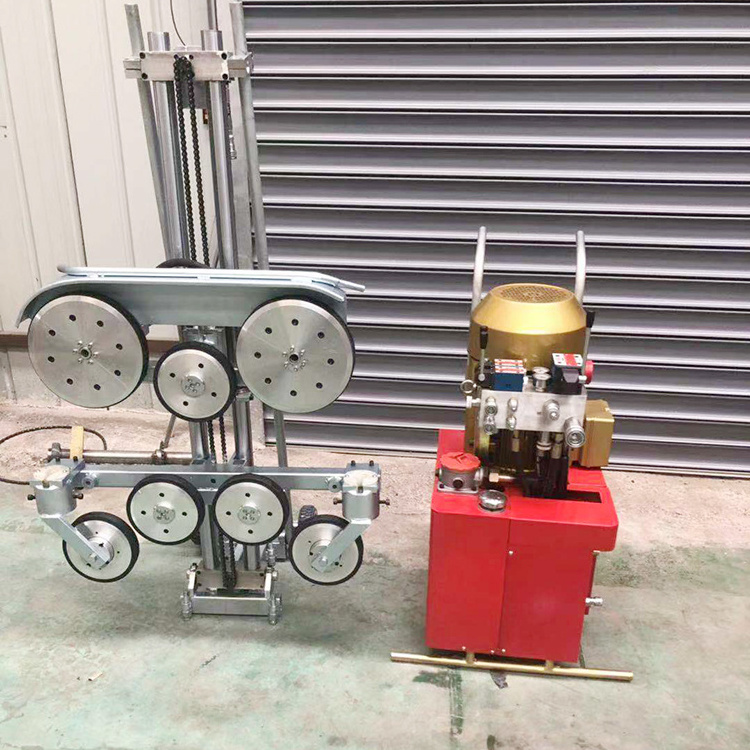

Hydraulic Diamond Wire Saw Machine is used to cut concrete, granite, rock, walls and beams in construction of bridges, roads and tunnels. It is necessary for cutting and removing reinforced concrete such as bridge sections, jetties, columns, beams and mining rocks.
It can realize various cuttings for thick concrete, and is the most suitable cutting construction equipment for cutting and dismantling of concrete walls, bridges and pillars. The wire saw is used to close the reinforced concrete structure, and the hydraulic wire saw can meet the cutting depth of the wall saw, and the cutting work depth is not limited. At present, it is widely used in the construction of buildings, bridges and tunnels, and the advanced cutting construction equipment in the construction of bridges and tunnels, replacing the traditional way of smashing and boring holes and blasting construction.
Product Features
1. Hydraulic-driven, Diamond Wire Saw Machine can work in different situations.
2. It's made of hard materials. The wedges are running stability. Long surviving life.
3. Powerful cutting ability, it can split the stone or concrete easily with no cutting depth limitation.
4. High Efficiency, and it's easy and comfortable to operate and maintain.
Wire Sw Technical Parameter
|
Hydraulic Pump |
YG-25 |
Motor Power |
25kw |
|
Voltage |
220V/380V, 50Hz |
Motor Type |
HM-80, 2 Cylinders |
|
Rotation |
1300r/min |
Working Pressure |
15-20Mpa |
|
Weight |
170kg |
Size |
720*650*1050mm |
|
Frame & Wheels |
Aluminum |
Wheels |
10 |
|
Weight |
75kg |
Size |
90*90*1700mm |
|
Diamond Wire Saw |
Diamond Wire |
Specification |
φ11.5mm 40beads/m |
|
Cutting speed |
3~5m2/h |
Wire life |
2~3m2/m |
