Quick Details
-
Brand Name:
-
HUAYI
-
Model Number:
-
XP-1A
-
Product name:
-
XP-1A Handheld SF6 Leak Detector
-
Certificate:
-
CE ISO
-
Model:
-
XP-1A
-
Power supply:
-
DC 3V, two alkaline batteries
-
Maximum sensitivity:
-
R12, R22, R134a are approved by (14 g / year)
-
Sensitivity limit:
-
Less than 3 g / year for halogen refrigerants
-
Usage time of probe:
-
About 20 hours
-
Temperature:
-
0℃-52℃
-
Usage time of battery:
-
About 30 hours under normal use
-
Working method:
-
Continuous, unlimited
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
HUAYI
-
Model Number:
-
XP-1A
-
Product name:
-
XP-1A Handheld SF6 Leak Detector
-
Certificate:
-
CE ISO
-
Model:
-
XP-1A
-
Power supply:
-
DC 3V, two alkaline batteries
-
Maximum sensitivity:
-
R12, R22, R134a are approved by (14 g / year)
-
Sensitivity limit:
-
Less than 3 g / year for halogen refrigerants
-
Usage time of probe:
-
About 20 hours
-
Temperature:
-
0℃-52℃
-
Usage time of battery:
-
About 30 hours under normal use
-
Working method:
-
Continuous, unlimited
Product Description
Introduction
Micro-tech central processing unit is the core of the product; its digital signal processing capabilities can
better manage the circuit and deal with the detection signal. Due to extensive use of integrated circuits
reduce the quantity of circuit elements 40%, greatly improve the reliability and efficiency. Microprocessor
can monitor probes and battery voltage with 4000 times per second, tiny signal can also be captured, in
any circumstance can work stable and reliable.
Features
1. Adopt microprocessor control with advanced digital signal processing capabilities 2. Three -color video display 3. Seven-gear sensitivity setting, maximum enhanced 64 times 4. Touch Keyboard 5. Adjust sensitivity at any time 6. Automatic battery test function 7. Battery voltage indication 8. Detect R134a, R12, R22 9. Can detect all halogen refrigerants 10. Vacuum mechanical pump sampling, provide positive draft for the probe 11. With gradient function 12. Wireless, portable, just need two batteries. 13. 35 cm flexible stainless steel probe rod.
Technology Parameters
|
Product Name
|
XP-1A Handheld SF6 Leak Detector
|
|
Power supply
|
DC 3V, two alkaline batteries
|
|
Maximum sensitivity
|
R12, R22, R134a are approved by (14 g / year)
|
|
Sensitivity limit
|
Less than 3 g / year for halogen refrigerants
|
|
Usage time of probe
|
About 20 hours
|
|
Temperature
|
0℃-52℃
|
|
Usage time of battery
|
About 30 hours under normal use
|
|
Working method
|
Continuous, unlimited
|
|
Response time
|
Instantaneous
|
|
Reset time
|
1s
|
|
Warm-up time
|
About 2s
|
|
Weight
|
560 g
|
|
Dimension
|
229×65×65mm3
|
|
Length of probe rod
|
35.5cm
|

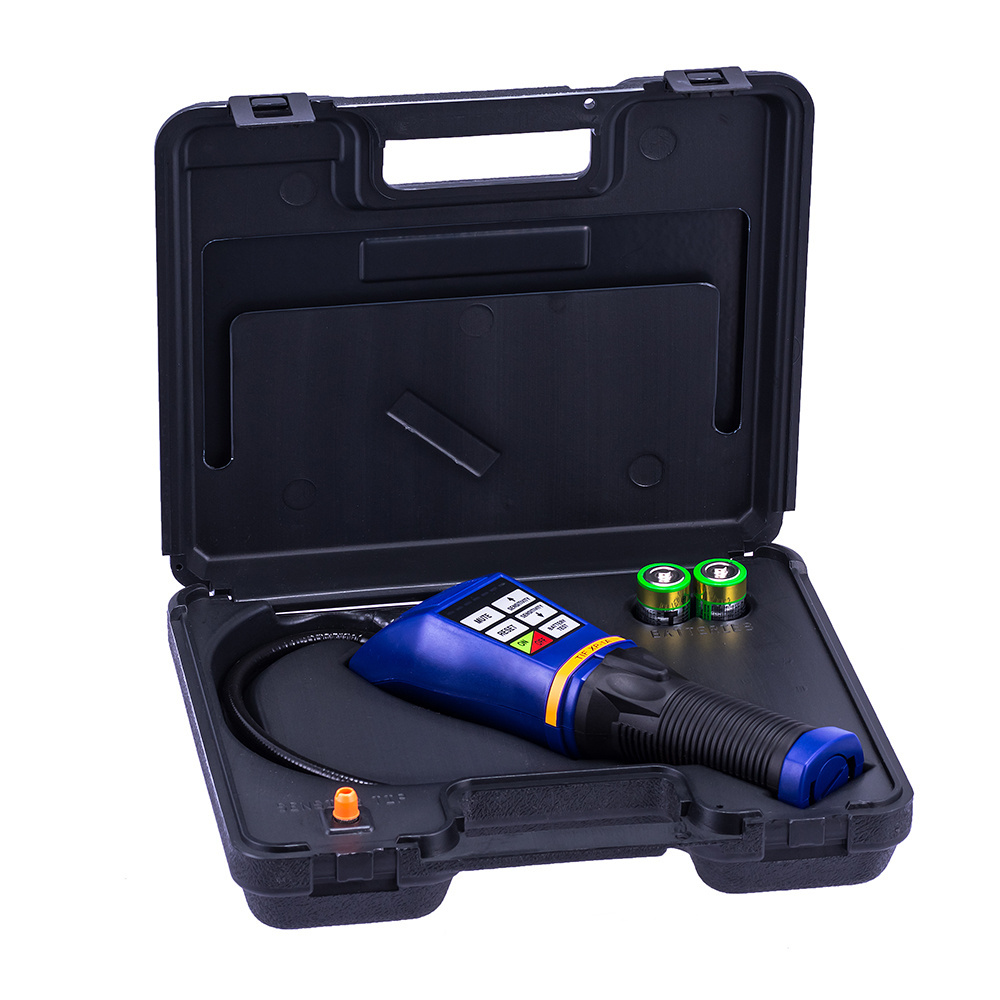

Accessory
|
Serial Number
|
Name
|
Amount
|
|
1
|
Mainframe
|
one
|
|
2
|
Battery
|
two
|
|
3
|
Probe
|
two
|
|
4
|
Specification
|
one
|
|
5
|
Inspection Report
|
one
|
|
6
|
Certification
|
one
|
