Quick Details
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
CE
-
Warranty:
-
18 month
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WHC
-
Model Number:
-
WHC20KW Li-20KWH
-
Output Voltage (V):
-
AC220V
-
Output Frequency:
-
50Hz
-
Work Time (h):
-
24
-
Product name:
-
Offgrid Solar Power System Home
-
Power:
-
20KW
-
Solar panel type:
-
Half Cell Solar Panel
-
Battery cell:
-
3.2V 100Ah LifePO4 Cell
-
Inverter:
-
Pure Sine Wave Inverter
-
Controller:
-
MPPT Solar Charge Controller
-
Solar Panel Bracket:
-
Aluminum alloy
-
Mounting Support:
-
Pitched / Flat Roof / Ground
-
System Type:
-
Off-grid Solar Power System
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lithium Ion
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
CE
-
Warranty:
-
18 month
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WHC
-
Model Number:
-
WHC20KW Li-20KWH
-
Output Voltage (V):
-
AC220V
-
Output Frequency:
-
50Hz
-
Work Time (h):
-
24
-
Product name:
-
Offgrid Solar Power System Home
-
Power:
-
20KW
-
Solar panel type:
-
Half Cell Solar Panel
-
Battery cell:
-
3.2V 100Ah LifePO4 Cell
-
Inverter:
-
Pure Sine Wave Inverter
-
Controller:
-
MPPT Solar Charge Controller
-
Solar Panel Bracket:
-
Aluminum alloy
-
Mounting Support:
-
Pitched / Flat Roof / Ground
-
System Type:
-
Off-grid Solar Power System
Products Description

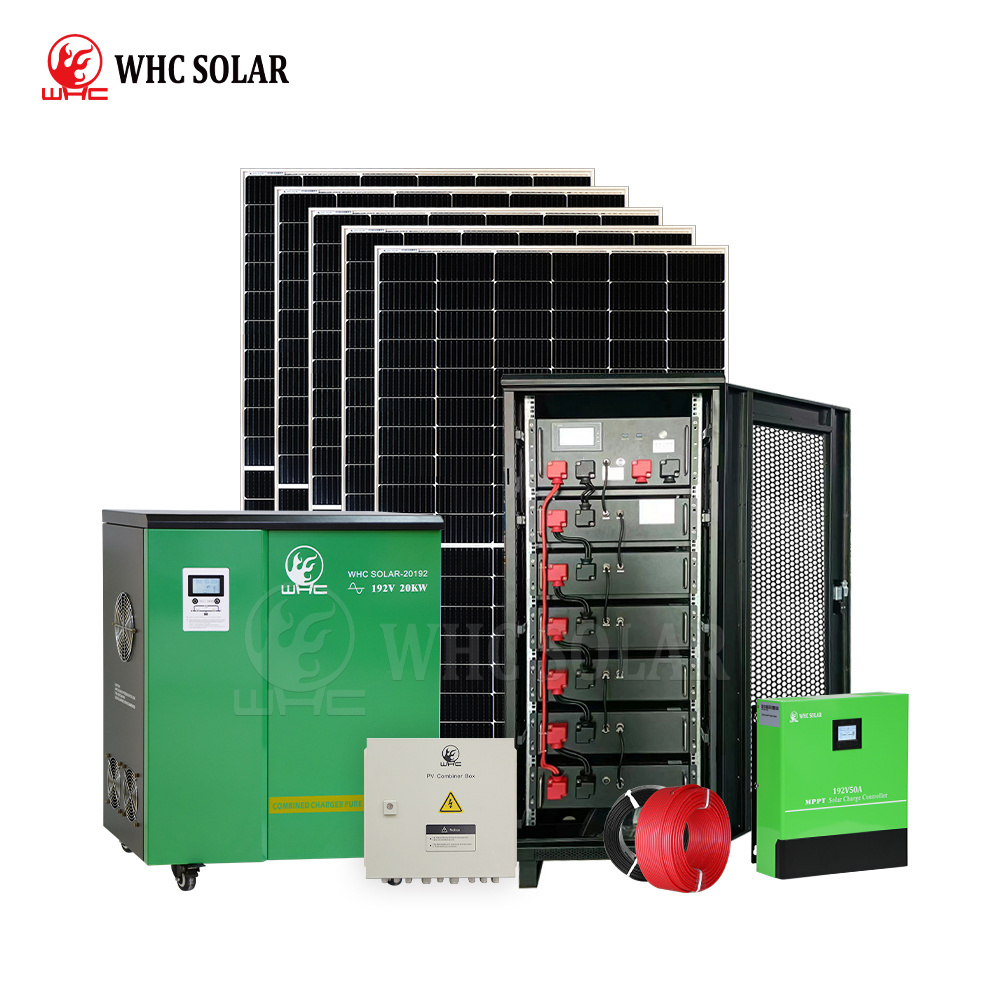

WHC Solar Power System also known as off-grid solar system is the most costeffective typefor solar system.It is a complete solar setup that comes with highly efficientsolar panels.off-grid solar inverter, Grade A+ lithium iron phosphate battery and other standard solaraccessories.This system willnot only provides you continious electricity but will alsoreduce your heavy electricity bills.
Product Paramenters
|
WHC20KW-Li-20KWH
|
|
|
||
|
Item
|
Description
|
Quantity
|
||
|
Solar Lithium Battery
|
192V100AH LiFePO4 Lithium Battery
|
1 Pieces
|
||
|
Solar Panel
|
450W Solar Mono Panel
|
18 Pieces
|
||
|
Solar Controller
|
192V 50A MPPT Controller
|
1 Pieces
|
||
|
Solar Inverter
|
192V 20KW Solar Inveter
|
1 Pieces
|
||
|
PV Combiner Box
|
SixInput + Two Output
|
1 Pieces
|
||
|
PV Cable
|
Single-core 6mm2 PV cable 100m
|
2 Pieces
|
||
|
PV Mounting Support
|
Hot Galvanizing Ground Mounting Support
|
1 Set
|
||
|
Connector
|
MC4 Connector
|
30 Pieces
|
||
Product Display
Mono Solar Panel
1.
Model:WHC-450M-120
2.
Max Power Voltage: 34.67V
3.
Max Power Current:12.98A
4.
Open Circuit Voltage: 41.25V
5.
Short Circuit Current: 13.89A
6.
Dimensions:
1909*1134*35mm
1.
WHC192V100AH
2.
Type:LiFePO4 Lithium Battery
3.
Nominal Votage: 204.8V
4.
Capacity:
20480WH
5.
Lifespan: 10 Years
6.
BMS Max discharging Current: 100A
1.
MPPT/WHC19250F
2.
Type:Heatsink Cooling
3.
Max.Charging Current 50A
4.
Max.PV Open Circuit Voltage:430V
5.
DC Input Voltage:192V
6.
MPPT Efficiency:99%
1.
WHC192V 20KW Inveter
2.
Type:Low Frequency IGBT Pure Sine
Wave Inverter with Big Transformer
3.
DC Input Voltage:192V
4.
AC Input Voltage:220V50/60HZ
5.
Recharging current:10A
6.
AC Output Voltage:220V50/60HZ
1.
Combiner Box:N6 Plus
2.
Waterproof IP65
3.
Max output Voltage :1000V
4.
DC Output Circuit Breake:Yes
5.
Lightning Protection:Yes
1.
Solar Panel Bracket
2.
Wind load: 55m/s
3.
Structure: Anodized Aluminum
Stainless
4.
Steel, Angle Adjustable
1.
Solar Cable 100m
2.
Type:RVV1*6
mm2
3.
Material:Pure Copper
4.
Temperature Rating:-40°C-120°CMore than 25 Years
1.
MC4 Solar Connector
2.
IP68 Waterproof
3.
High Quality.Safe ProtectionQuick
Operation.Copper Mc4Connector.
